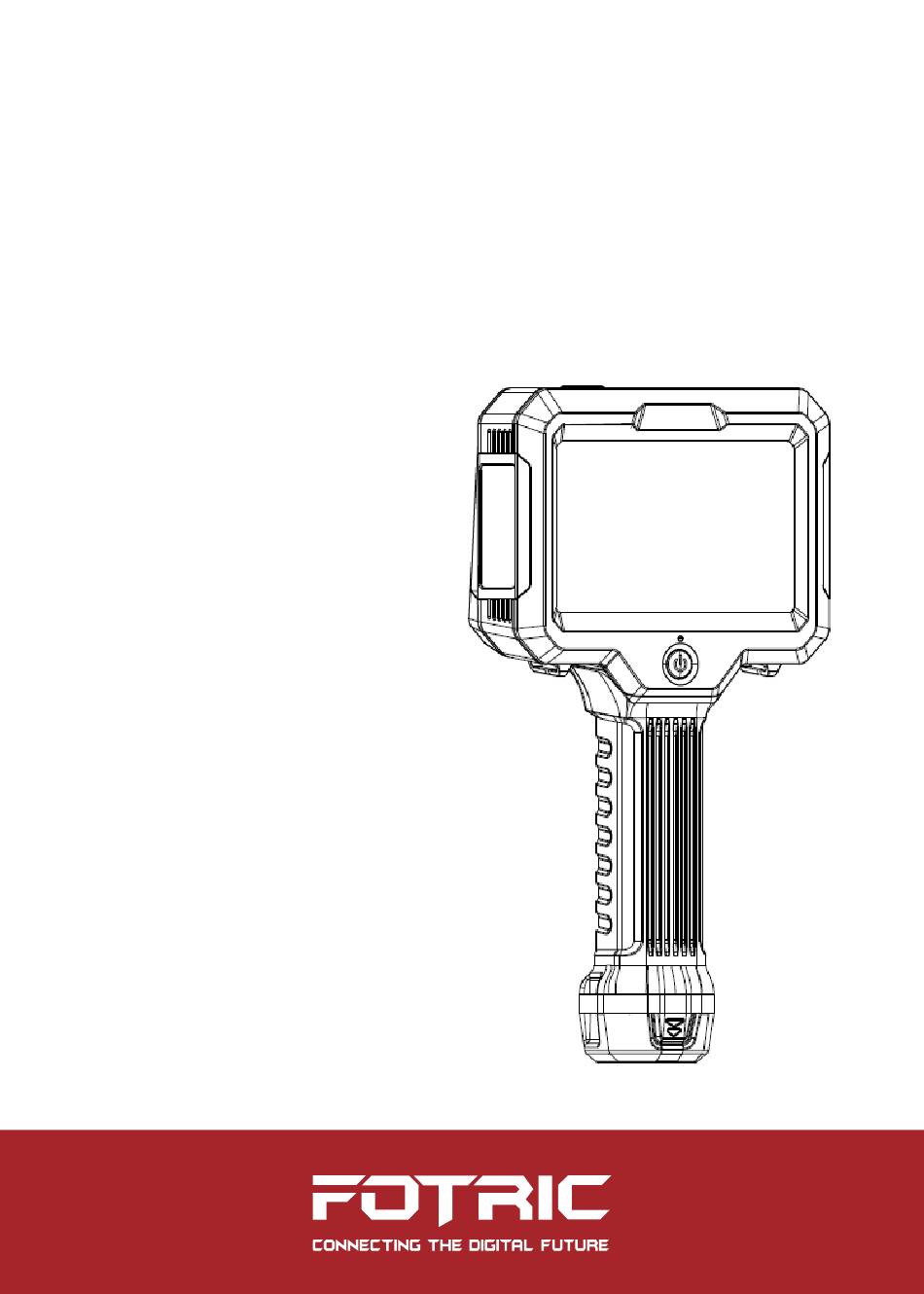

FOTRIC TD3 Series
Quick Start Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD3 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Fotric TD3 Series

  • Page 1 FOTRIC TD3 Series Quick Start Manual...
  • Page 2 Symbols For the symbols that appear in the documentation, the descriptions are listed below. Warning Caution Potential death or serious Potential danger of injury or injury inducing hazards property damage. Safety information The purpose of this section is to ensure that the user uses the product properly to avoid danger or property damage.
  • Page 3 your own risk). Caution • Protect the acoustic sensor array from stains, dust, and liquids that could affect the performance of the acoustic imaging camera or even cause permanent damage. • Avoid using the product in humid, dusty, extremely hot, or cold environments.
  • Page 4: Table Of Contents

    Main interface ������������������������������������������������������������������������������������������� 5 Save interface ������������������������������������������������������������������������������������������� 6 Gallery ������������������������������������������������������������������������������������������������������� 7 Settings ����������������������������������������������������������������������������������������������������� 9 Quick Start ��������������������������������������������������������������11 Operational Tips �����������������������������������������������������13 Frequency filtering ��������������������������������������������������������������������������������� 13 Gas leakage evaluation �������������������������������������������������������������������������� 14 Partial discharge detection ������������������������������������������������������������������� 16 About This Manual ��������������������������������������������������17 How to Contact FOTRIC �������������������������������������������19...
  • Page 5: Acoustic Imaging Camera

    FOTRIC TD3 Series Quick Start Manual 丨 1 Acoustic Imaging Camera Front view...
  • Page 6: Rear View

    2 丨 FOTRIC TD3 Series Quick Start Manual Rear view...
  • Page 7: Side View

    FOTRIC TD3 Series Quick Start Manual 丨 3 Side view...
  • Page 8: Top View

    4 丨 FOTRIC TD3 Series Quick Start Manual Top view...
  • Page 9: Interface Introduction

    FOTRIC TD3 Series Quick Start Manual 丨 5 Interface Introduction Main interface ① Menu bar: Capture mode, signal filter mode, gallery, display mode, Settings. ② Status bar: Display time, recording status, Wi-Fi, hotspot, power, etc. ③ PRPD graph: Displays PRPD chart to help diagnose the type of local play.
  • Page 10: Save Interface

    6 丨 FOTRIC TD3 Series Quick Start Manual ⑤ Sound and video displays area: Displays visible light screen and sound with palette-color overlay. ⑥ Photo/Video button: Switching between photo or video recording function according to the capture mode. ⑦ Sound intensity trend graph: Displays the current maximum sound intensity and sound intensity trend.
  • Page 11: Gallery

    FOTRIC TD3 Series Quick Start Manual 丨 7 ③ Favorite:Apply ‘favorite’ to help filter important images ④ Cancel:Do not save the changes made on the file ⑤ OK: Confirm to save the changes ⑥ Defect diagnosis:Select among defect severity level,also used in filtering images.
  • Page 12 8 丨 FOTRIC TD3 Series Quick Start Manual an external hard drive. It enables user to export all data; ④ Image information: Display sound pressure level, test distance, frequency range, defect level; ⑤ Favorite: Add and cancel ‘favorite’ status; ⑥ Text annotation: Add or edit text annotation;...
  • Page 13: Settings

    FOTRIC TD3 Series Quick Start Manual 丨 9 Settings ① Shooting mode: snap photo, recording, naming rules - default, custom; ② Display: Brightness, sound, dynamic range; ③ Detection mode: Partial discharge mode and leakage mode; ④ Distance: Select the distance between 0.1~130 m ⑤...
  • Page 14 10 丨 FOTRIC TD3 Series Quick Start Manual ⑧ System: Model, language, serial number, version information, IP, power remaining, capacity remaining; ⑨ Reset: Reset parameters to factory default settings, delete all saved files. ...
  • Page 15: Quick Start

    FOTRIC TD3 Series Quick Start Manual 丨 11 Quick Start Follow these steps: Place the battery in the battery compartment of the sound camera. Charge the battery to full capacity before starting the camera for the first time. Press the power button to turn on the camera.
  • Page 16 12 丨 FOTRIC TD3 Series Quick Start Manual 12. Start the SonicLab professional analysis software. 13. Copy the exported data to the PC using a USB flash drive. 14. Bind the copied folder by SonicLab. 15. See the exported files in SonicLab. Double-click the selected files to open them for analysis.
  • Page 17: Operational Tips

    FOTRIC TD3 Series Quick Start Manual 丨 13 Operational Tips Frequency filtering The Fast Fourier Transformation (FFT) graph on the right presents the frequency and amplitude of current sound signals. Users can refine the analysis by adjusting the red box on the graph, isolating...
  • Page 18: Gas Leakage Evaluation

    14 丨 FOTRIC TD3 Series Quick Start Manual Gas leakage evaluation To initiate leakage detection mode, navigate to Settings -> Detection and select ‘Leakage Mode.’ For precise leakage assessment, accurately complete the ‘Parameters Config’ table with the relevant details. The correction factor is used to reconcile any differences between...
  • Page 19 FOTRIC TD3 Series Quick Start Manual 丨 15 Within the ‘Evaluation’ interface, the camera provides an estimate of the annual cost associated with the detected leakage.
  • Page 20: Partial Discharge Detection

    16 丨 FOTRIC TD3 Series Quick Start Manual Partial discharge detection To engage the partial discharge detection mode, navigate to Settings -> Detection and choose ‘Partial Discharge Mode.’ In this mode, the Phase Resolved Partial Discharge (PRPD) graph is displayed in the top right corner of the screen. Click on the graph for an expanded view.
  • Page 21: About This Manual

    This manual may be updated by FOTRIC without notice due to product version upgrade or other needs. The trademarks and images used in this manual are for illustrative purposes only and are the copyright of the trademark owner.
  • Page 22 18 丨 FOTRIC TD3 Series Quick Start Manual abnormal operation of the product or information leakage caused by such problems, but will provide you with technical support in a timely manner. The product can sense motion detection and fire events under correct installation and configuration, but cannot avoid accidents or resulting personal injury or property damage.
  • Page 23: How To Contact Fotric

    FOTRIC TD3 Series Quick Start Manual 丨 19 How to Contact FOTRIC If you need to contact FOTRIC, please address the following...
  • Page 24 This is to certify that the device or instrument listed on this card meets the requirements of FOTRIC quality control procedures.
  • Page 25 FOTRIC TD3 series' technical standards are formulated following the international standards for the industrial testing infrared thermal imager and the relevant standards cited therein, as listed below: FCC 47 CFR Part 15 Radio Frequency Devices EN 61326-1:2013 Electrical equipment for measurement,...
  • Page 26 Thank you for choosing FOTRIC. We design products to deliver long-lasting performance under our warranty policy (starting from date of original purchase). If any manufacturing defects appear under normal use, the product will be repaired or replaced by FOTRIC INC. with no cost to the owner.
  • Page 27 Innovation Excellence Integrity Company Disclaimer Equipment described herein may require EU, US and UNSC authorization for export purposes. Imagery for illustration purposes only. Specifications are subject to change without notice. FOTRIC INC. © 2023 All Rights reserved. FOTRIC INC�...
