- Page 1 INTEGRATED WINE CABINET 24" INTEGRATED RS2484VL2K1 & RS2484VR2K1 USER GUIDE US CA...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Integrated wine cabinet Storage features Control panel ActiveSmart™ special features Wifi connection Using your appliance Loading your wine bottles Wine care Replacing carbon filter Cleaning care — exterior Cleaning care — interior User warnings and sounds Troubleshooting Service &... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to do so can result in death, electric shock, fire or injury to persons. • Read and follow the safety and warnings outlined in this user guide before operating this appliance. WARNING! This appliance contains flammable refrigerant isobutane (R600a). - Page 5 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage. When using this appliance always exercise basic safety precautions including the following: General Use This product has been designed for use in a normal domestic (residential) environment. Children should be supervised to ensure that they do not play with the appliance.
- Page 6 SAFETY AND WARNINGS When moving your appliance away from the wall, be careful not to roll over or damage the power cord. WARNING: Do not use electrical appliances inside your appliance, unless they are of the type recommended by the manufacturer. When positioning the appliance, ensure the power cord is not trapped or damaged.
- Page 7 SAFETY AND WARNINGS WARNING! To reduce the risk associated with choking: DO NOT allow children under 3 years of age to have access to small parts during the installation of the water filter. Power failure In the event of a power interruption, the Wine Cabinet will automatically save the current temperature settings.
-
Page 8: Integrated Wine Cabinet

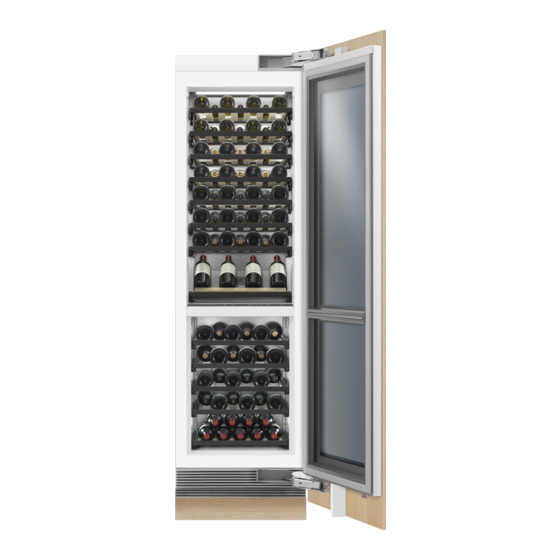

INTEGRATED WINE CABINET 24" Wine Cabinet RS2484VL2K1 Left hinge 24" Wine Cabinet RS2484VR2K1 Right Hinge... -
Page 9: Storage Features
STORAGE FEATURES Integrated Wine Cabinet Easy-clean design with evenly distributed lighting and aluminum trims. Cabinet features 1 UV tempered glass door 2 Display handle 3 Interchangeable Lower bottle racks 4 Bulk storage rack 5 Wine bottle labels 6 Interchangeable Upper bottle racks 7 Display cradles 8 Display rack... -
Page 10: Control Panel
CONTROL PANEL High Display Allows you to unlock the control panel and enable compartment selection. Press for 4 seconds to activate your appliance for the first time. The control panel will automatically lock when inactive for more than 10 seconds or when the door is closed. To unlock, press for two seconds. -
Page 11: Activesmart™ Special Features
ACTIVESMART™ SPECIAL FEATURES Variable temperature zones The serving temperature of your wine is crucial for your taste and enjoyment, therefore ‘Wine Modes’ have been carefully designed to both care for your wine and provide the ideal serving temperature for all wine varieties. The separate modes allow you to adjust the temperature in both compartments independently. -
Page 12: Wifi Connection
WIFI CONNECTION Your appliance can be connected to your home wireless network and operated remotely using the app. Getting started Ensure your home WiFi network is turned on. You will be given step by step guidance on both your appliance and mobile device. It may take up to 10 minutes to connect your appliance. -
Page 13: Using Your Appliance
USING YOUR APPLIANCE Temperature control At initial startup, each will automatically default to the recommended WINE MODE temperature setting. Once you have selected the compartment and required WINE MODE the temperature can be adjusted as desired. The selected setting will be saved for future use. - Page 14 USING YOUR APPLIANCE Selecting the Light Mode To activate a Light Mode: Press repeatedly to scroll through the available settings and select LIGHT MODE your preferred mode. Press for two seconds to activate. A blinking light indicates the current position when scrolling through the list. To deactivate a Light Mode: Press for two seconds to deactivate.
- Page 15 USING YOUR APPLIANCE Alarm mute To activate: To activate, press once. The will illuminate to indicate the refrigerator is muted. will deactivate after ALARM MUTE 20 minutes. Press To deactivate manually, Closing the door also deactivates the ALARM MUTE Door alarm If the door is left open, the alarm will beep after 90 seconds.
-
Page 16: Loading Your Wine Bottles
LOADING YOUR WINE BOTTLES The Integrated Wine Cabinet has a recommended maximum storage capacity of 91 standard 750ml bottles. The loading arrangement outlined is recommended when using the wine cabinet at full capacity. Racks may be removed to store larger sized bottles, for example Magnums. -
Page 17: Wine Care
WINE CARE Having purchased our dual-zone Integrated Wine Cabinet, you can rest assured that your wines are well cared for. Your Integrated Wine Cabinet model has been designed to carefully consider both the maturation and ideal drinking temperature of all wine varieties. Our Wine Modes have been created to offer guidance for the perfect storage conditions for your wine, whilst allowing you adjustability to suit your personal needs. -
Page 18: Replacing Carbon Filter
REPLACING CARBON FILTER Activated carbon filters Air quality is critical for preserving wine. Your product is fitted with two activated carbon filters that help remove stale, unwanted odours and replenishes with fresh air. The filters are located internally at the bottom rear of each compartment. -
Page 19: Cleaning Care - Exterior
CLEANING CARE — EXTERIOR Glass door Use only mild liquid detergent dissolved in warm water and a soft cloth. Rinse with clean water and dry with a clean, lint-free cloth. Stainless steel door panel Use only mild liquid detergent dissolved in warm water and a soft cloth. Rinse with clean water and dry with a clean, lint-free cloth. -
Page 20: Cleaning Care - Interior
CLEANING CARE — INTERIOR IMPORTANT! Remove all wooden racks prior to cleaning. Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or abrasive scouring pads on any part of your appliance. Some of these chemicals may damage your appliance. Wipe interior surfaces with a mild liquid detergent dissolved in warm water and a soft cloth. - Page 21 CLEANING CARE - INTERIOR Repositioning the racks Align the back edge of the rack onto the desired support slides. (D) Push the rack into the wine cabinet all the way to the back of support slides until it locks in place. (E) Ensure the rack is secure before use.
-
Page 22: User Warnings And Sounds
USER WARNINGS AND SOUNDS Faults In the unlikely event a fault occurs, 4 rapid beeps will be heard and the fault will be displayed on the control panel. – Record the fault code displayed on the control panel and contact a Fisher & Paykel trained and supported service technician in order to repair the fault. -
Page 23: Troubleshooting
TROUBLESHOOTING If there is a problem with your appliance, please check the following points before contacting your local Fisher & Paykel trained and supported service technician or the Customer Care Center. Product parts and accessories can be purchased through the Fisher & Paykel Customer Care Center, or online at fisherpaykel.com (this service is available to selected markets only). - Page 24 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO When the appliance Record the code on the control door is opened panel and contact Customer 4 rapid beeps Care Center. sound and a code is displayed on the control panel Exterior of cabinet Note: This is normal. is warm Condensation on Not unusual during periods...
-
Page 25: Service & Warranty
SERVICE & WARRANTY For details of your manufacturer’s warranty and contacts for servicing, refer to your separate service and warranty book provided with your appliance. This product has been designed for use in a normal domestic (residential environment). This product is not designed for any commercial use. Any commercial use by the customer will affect this products manufacturer’s warranty. - Page 26 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
