INTEGRATED COLUMN
MULTIPLE PRODUCT INSTALLATION
REFRIGERATOR & FREEZER
RS2484S, RS2484SH, RS3084S, RS3084SH
RS1884F, RS2484F & RS3084F
REFRIGERATOR-FREEZER
RS2484W, RS3084W & RS3684W models
WINE CABINET
RS2484V
INSTALLATION GUIDE
US CA

Advertisement

loading
Need help?

Need help?

Do you have a question about the 11 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher & Paykel 11 Series

Summary of Contents for Fisher & Paykel 11 Series

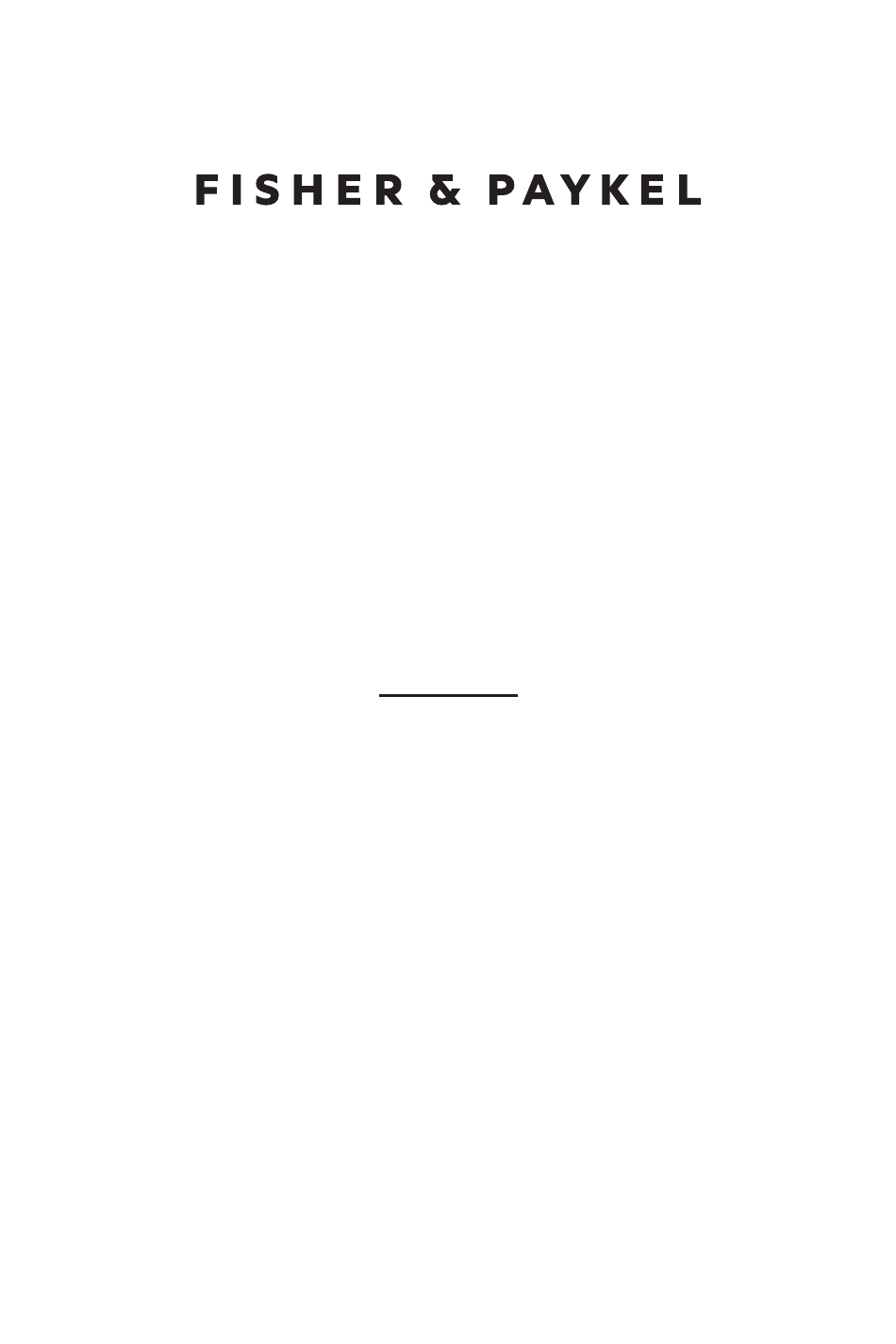

  • Page 1 INTEGRATED COLUMN MULTIPLE PRODUCT INSTALLATION REFRIGERATOR & FREEZER RS2484S, RS2484SH, RS3084S, RS3084SH RS1884F, RS2484F & RS3084F REFRIGERATOR-FREEZER RS2484W, RS3084W & RS3684W models WINE CABINET RS2484V INSTALLATION GUIDE US CA...
  • Page 2 SAFETY AND WARNINGS  WARNING! Electric Shock Hazard Failure to follow this advice may result in electrical shock or death. • Read and follow the safety and warnings outlined in this User guide before operating this appliance.  WARNING! Cut Hazard Failure to use caution could result in injury. •...
  • Page 3 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! To avoid hazard, follow these instructions carefully before Installing or using this appliance. Please make this information available to the persons installing the appliance. Assume all electrical parts are live. Disconnect power supply before servicing and installation. BEFORE INSTALLATION The appliance has front and rear rollers to easily move forward and backward.
  • Page 4 SAFETY AND WARNINGS INSTALLATION The anti-tip bracket and fittings supplied must be fitted to the wall of the finished enclosure to withstand a 220lbs (100kg) load. Ensure that the anti-tip bracket is installed correctly to prevent the possibility of the appliance tipping forward when the door is open. Ensure the door of the appliance is closed when rolling into the cabinetry.
  • Page 5 PARTS SUPPLIED INSTALLATION KIT (INTERNAL BOX) Door panel attachment kit Side bracket (12) Side spacer bracket (12) Bracket slider (12) M5x12 Cross-head screw (44) Anti-tip bracket assembly Anti-tip bracket (1) 10-12x35mm crosshead screw (5) Masonry plug (5) Miscellaneous parts Hinge limiting pin (3) Flow divider cap (1) Air toe kick seal (1) TRIMS INSTALLATION KIT (EXTERNAL BOX)
  • Page 6 PARTS SUPPLIED INSTALL JOINER KIT Used for combined installation of multiple appliances. Supplied in selected appliances only (Freezer and Wine Cabinets). For other models, the joiner kit (AJ-RS84LR) can be purchased separately through an authorised Fisher and Paykel dealer. Visit fisherpaykel.com for more information.
  • Page 7 TOOLS Supplied Spanner M4 hex key Not supplied Powered driver (Used for joiner bolts) Flathead screwdriver 13mm socket wrench (Used for drawer panel of Cross-head screwdriver Refrigerator-Freezer model) Hand truck Hacksaw (For cutting air flow divider to length) Cutter (1) T20 star-head screwdriver (Used for changing hinge) 8mm socket wrench...
  • Page 8 ACCESSING YOUR PRODUCT SPECIFICATIONS For full product, cabinetry and service specifications, refer to the Planning Guide. To access the Planning Guide, scan the QR code or visit fisherpaykel.com/specify. Search by appliance type, product name or model code. Dual installation cavity dimensions. All other product, cavity and panel dimensions can be found in the planning guide.
  • Page 9 ACCESSING YOUR PRODUCT SPECIFICATIONS For full product, cabinetry and service specifications, refer to the Planning Guide. To access the Planning Guide, scan the QR code or visit fisherpaykel.com/specify. Search by appliance type, product name or model code. Triple installation cavity dimensions. All other product, cavity and panel dimensions can be found in the planning guide.
  • Page 10 PRIOR TO INSTALLATION 1. Measure cavity dimensions. Ensure all minimum specifications have been met and clearances have been considered. fisherpaykel.com/specify 2. Ensure floor is level and clear and a finished return has been created if required. 3. Ensure services are accessible and correctly installed.
  • Page 11 UNPACK 1. Cut the straps and the line printed on the top of the carton. Lift to remove. Set cardboard aside for later use. 2. Remove the trim kit from the back of the product. 3. Remove the installation and miscellaneous item kits from inside the product.
  • Page 12 REMOVE PRE-INSTALLED PARTS Top trim Unclip the top trim from the non-hinge side of the product before sliding out from the hinge. Top door caps Unclip both ends of the top door caps and pull outwards to remove. Ensure magnet stays in place.
  • Page 13 REMOVE PRE-INSTALLED PARTS Top grille Open the water filter cover and remove the #8x16 screw. Remove both #8x16 screws from either end of the grille. Pull grille outwards to remove. Toe kick mounting plate Remove the screws to detach the toe kick mounting plate. Air flow divider Remove the screw to detach the air flow divider.
  • Page 14 MOVE APPLIANCE Two people required at all times. 1. Take care when moving the appliance. Tape the door shut to prevent it opening. 2. Remove the brackets from the non-hinge side of the pallet. 3. Tilt the appliance forward slightly and insert the hand truck between the pallet and product.
  • Page 15 MOVE APPLIANCE 4. Restrain the product to the hand truck using the corner posts to prevent side trims pinching. 5. Removing the remaining brackets. 6. Tilt product and remove pallet. Move product to the installation location.
  • Page 16 INSTALL ANTI-TIP BRACKET 1. Ensure wall stud or solid surface is present. 2. Measure the height from the floor to the front overhang and mark on the rear wall. The installation height of the anti-tip bracket must not exceed 84 3/16" (2138mm) to ensure product does not tip.
  • Page 17 INSTALL ANTI-TIP BRACKET 4. Solid wall installations Using the bracket as a guide, pre-drill four holes into the wall or spacer. Secure using four Phillips screws 5. Masonry wall installations Using the bracket as a guide, pre-drill four holes into the wall. Hammer four masonry plugs into the wall until flush before securing using four Phillips...
  • Page 18 PRODUCT PREPARATION 1. Remove the M8 nut and M8 washer from the M8 screw at the top of the door using the supplied hex key and spanner. 2. Remove the hanging bracket and set aside for later use. Repeat for lower drawer if required.
  • Page 19 PRODUCT PREPARATION 4. Insert the barbed plugs into the top left and right sides of the product to protect the cabinetry. 5. Loosen the screws at the top and bottom of the door. 6. Ensure orientation of the gauges are correct before aligning to the door.
  • Page 20 PRODUCT PREPARATION 7. Slot the gauges onto the door screws. Push the gauges down to lock into position before tightening the screw to secure. 8. Remove both bolts from the side that will connect to the adjacent product. 9. Add the flange joiners and tighten using a 1/8"...
  • Page 21 PRODUCT PREPARATION 10. Remove alcove trims between adjacent products.
  • Page 22 JOIN PRODUCTS 1. Ensure doors are closed before rolling products into position. 2. Secure the lower brackets together using the supplied M6 screw and Nut. Secure using a 4mm Allen key and 3/8" (10mm) spanner. Ensure brackets are clamped tightly before proceeding. 3.
  • Page 23 JOIN PRODUCTS 4. Handle to handle installations: Fit the second supplied M5 bolt and joiner sleeve. For handle to handle install, use two bolts from both sides. For handle to hinge, only one joiner bolt from handle side be inserted. 5.
  • Page 24 INSERT HINGE LIMITING PIN (OPTIONAL) 1. To limit the door opening to 90°, lower the hinge limiting pin into the upper and lower hinges. 2. Refrigerator-Freezer models: Unclip the centre divider before fitting the pin to the lower hinge. Refit the centre divider.
  • Page 25 CONNECT SERVICES 1. Connect one end of a braided hose to the tap. Flush water through hose prior to connection to remove any debris. 2. Push the hose through the plinth from the rear of the product. 3. Connect the hose to the isolation valve.
  • Page 26 CONNECT SERVICES 1. If required, wrap a thread around the power cord to reduce slack and decrease the risk of it tangling behind the product. 2. Connect to outlet and turn power on. 3. When powered on for the first time, your appliance will default to install mode.
  • Page 27 POSITION IN CAVITY 1. Carefully roll both products into cabinetry. 2. Mark the step of depth gauge on the cabinetry sides of the doors based on the thickness of door panel. 3. Align the marked line flush with the front surface of the adjacent cabinetry.
  • Page 28 LEVEL AND SECURE 1. Adjust the front of the product by turning the left- hand screw clockwise to lower the feet. We recommend marking a drill and counting the number of turns required to fully engage the feet. 2. Adjust the rear of the product by turning the right- hand screw clockwise to lower the feet.
  • Page 29 LEVEL AND SECURE 4. Check the alignment gauges while adjusting the screws. Using a ruler, check if the gaps between appliance and cabinetry side wall are even. 5. Fit the two lower side brackets to the cabinetry side surface with a 8Gx16 countersunk screw on each side.
  • Page 30 DOOR PANEL PREPARATION (PRE-FINISHED PANEL) 1. Remove the blue tape and protective film from the handle attachment area. 2. Remove the four plugs from the door panel. 3. Fit the handle to the panel using four M5x25 hex screws. Refrigerator-Freezer models: Repeat for lower drawer.
  • Page 31 DOOR PANEL PREPARATION (PRE-FINISHED PANEL) 4. Remove the blue tape attached to the inner edges of the door panel after the handle is installed. 5. Secure the top hanging bracket to the screw holes of the door panel with M5 x 12 PH Screws.
  • Page 32 DOOR PANEL PREPARATION (PRE-FINISHED PANEL) 7. Refrigerator-Freezer models: Repeat for lower drawer. 8. Wine Cabinet models: Fit the supplied rubber trims around the window cut-out on the rear of the door panel. Ensure trims are flush with the inside edge and do not overlap the hanging bracket.
  • Page 33 DOOR PANEL PREPARATION (CUSTOM PANEL) 1. Recheck the door panel specifications and ensure all bracket locations have been marked. Refer to the planning guide for all custom panel details. The supplied template can also be used to locate bracket hole locations.
  • Page 34 DOOR PANEL PREPARATION (CUSTOM PANEL) 6. Refrigerator-Freezer models: Repeat for lower drawer. 4. Fit the handle to the panel using four M5x25 hex screws. Ensure handle fixings do not interfere with side brackets. 5. Refrigerator-Freezer models: Repeat for lower drawer.
  • Page 35 DOOR PANEL PREPARATION (CUSTOM PANEL) 7. Wine Cabinet models: Fit the supplied rubber trims around the window cut-out on the rear of the door panel. Ensure trims are flush with the inside edge and do not overlap the hanging bracket.
  • Page 36 INSTALL PANELS 1. Ensure top mounting screws have been loosened by 3mm. 2. Loosen the side screws. 3. Hold the panel at an angle from the top of the door and lower onto the mounting screws..
  • Page 37 INSTALL DOOR PANEL 4. Ensure side brackets are disengaged and top mounting screws have been loosened. Rotate the mounting studs clockwise to lower the panel and anti-clockwise to raise it. 5. Loosely tighten the side screws and the top M8 washers using the spanner and L key provided in the install kit.
  • Page 38 INSTALL DOOR PANEL 7. Fit side screws to panel. 8. Tighten the M8 nuts using the supplied spanner and hex key.
  • Page 39 INSTALL DOOR PANEL 1. With the door open, loosen the lower bracket screw. Adjust bracket to rest against the door panel. Re-tighten the bracket screw. 2. Fit an additional screw through the bracket to lock panel into position. 3. Recheck all gaps and any clashing.
  • Page 40 ADJUST MOUNTING PLATE BRACKETS 1. Loosen the adjustment bracket cap screws on both sides of the plinth using a hex key. 2. Adjust the brackets to achieved desired toe kick depth. 3. Re-tighten the cap screws.
  • Page 41 INSTALL MOUNTING PLATE 1. If there is a gap between the mounting plate and the plinth: Attach the foam block to the back of the mounting plate. Press firmly to secure. 2. Refit mounting plate using the screws that were set aside earlier.
  • Page 42 INSTALL TOE KICK (PRE-FINISHED PANEL) 1. Center the spacers to the attachment points of the appliance, then mark the magnet fixing locations at the center of each spacer. 2. Secure the magnets to the spacers. 3. Clip toe kick into place...
  • Page 43 INSTALL TOE KICK (CUSTOM PANEL) 1. Align the panel to the attachment points of the appliance, then mark the magnet fixing locations. 2. Secure the magnets to the spacers. 3. Clip toe kick into place.
  • Page 44 FIT GRILLES Top grille – Refrigerator, Freezer, Wine Cabinet Open the door and secure both ends of the grille behind the water filter hatch using #8x16 screws. Top grille – Refrigerator-Freezer Reattach the top grille with #8x16 screws. Bottom grille Re-attach the bottom grille via the magnets.
  • Page 45 FIT TRIMS Top door caps Remove the backing film and ensure the magnet is in place. Clip the notch into the magnet housing, and the trim caps on top of the adhesive strips. Press down firmly to secure. Ensure the magnet remains in place and not damaged as this will affect the operation of the appliance.
  • Page 46 FIT TRIMS Drawer top trim Align top trim to drawer and press down firmly to secure within panel bracket clips. Ensure top trim is aligned with the drawer side covers. Top trim Slide one end of the top trim into the hinge pocket. Press the other end to secure.
  • Page 47 FIT TRIMS 1. Position centre trim between products. 2. Push trim up into the upper bracket. 3. Push trim into the lower bracket.
  • Page 48 FIT TRIMS 4. Press the centre trim to fix the position.
  • Page 49 FIT WATER FILTER 1. Install the water filter. To access instructions, visit fisherpaykel.com/specify and enter 'Water Filter' or the filter model code. fisherpaykel.com/specify...
  • Page 50 SECURE FLOW DIVIDER 1. Remove the adhesive layer off the flow divider. 2. Press the flow divider firmly against the bottom of the panel. Secure flow divider to the panel using a screw. 3. Slot flow divider cap into place.
  • Page 51 EXIT INSTALLER MODE 1. Press and hold to exit Install Mode.
  • Page 52 HINGE SWAP (OPTIONAL) REMOVE DOOR We recommend removing shelves prior to removing the door. Take care when removing the door. 1. Release the hinge spring by turning the T20 screw in the hinge to the ‘0’ position. Close the door and lay the appliance on its back on the pallet.
  • Page 53 HINGE SWAP (OPTIONAL) REMOVE UPPER HINGE 1. Open the upper hinge fully and remove the hinge pocket cover using the flat head screwdriver. 2. Unscrew M6x16 countersunk screws to remove upper hinge and set aside. 3. Unscrew M6x16 countersunk screws from hinge pocket to remove hinge pocket and upper alcove bracket.
  • Page 54 HINGE SWAP (OPTIONAL) REMOVE UPPER HINGE 4. Unscrew M5x12 countersunk screws to remove upper hinge bracket and spacer. 5. For the non-hinge side, remove the alcove bracket by unscrewing the M6x16 countersunk screws.
  • Page 55 HINGE SWAP (OPTIONAL) REMOVE LOWER HINGE 1. Refrigerator, Freezer and wine cabinet models: Open the lower hinge fully and remove the hinge pocket cover using the flat head screwdriver. 2. Refrigerator, Freezer and wine cabinet models: Open the water filter hatch on the bottom grille and unscrew the #8x16 screw while holding the grille in place.
  • Page 56 HINGE SWAP (OPTIONAL) REMOVE LOWER HINGE 4. Refrigerator, Freezer and wine cabinet models: Remove the lower grille by unscrewing the #8x16 screws from the bottom left and right of the grille. 5. Refrigerator, Freezer and wine cabinet models: Remove bottom hinge bracket by unscrewing M6x16 countersunk screws.
  • Page 57 HINGE SWAP (OPTIONAL) REMOVE CENTRE HINGE 1. Refrigerator-Freezer models: Open the centre hinge fully and remove the hinge cover. Unscrew the M6x16 countersunk screws to remove. 2. Refrigerator-Freezer models: Unscrew M5x12 countersunk screws to remove top hinge bracket and spacer.
  • Page 58 HINGE SWAP (OPTIONAL) MOVE SENSOR HOUSING (18" AND 24" MODELS ONLY) 1. Unclip the hall sensor from the housing. 2. Unhook the interceptor board harness from the housing. 3. Remove the two #8x16 screws from the sensor housing.
  • Page 59 HINGE SWAP (OPTIONAL) MOVE SENSOR HOUSING 4. Move the sensor housing to align the opposite hall sensor clip with the centre of the cabinet 5. Reinstall the sensor housing using two #8x16 screws into the pre-drilled holes in the cabinet top panel. 6.
  • Page 60 HINGE SWAP (OPTIONAL) REFIT UPPER HINGE 1. Reinstall the upper hinge bracket and bracket spacer with M5x12 countersunk screws on the new hinge side. 2. Install the new hinge pocket and alcove top bracket on the new hinge side using two M6x16 countersunk screws.
  • Page 61 HINGE SWAP (OPTIONAL) REFIT UPPER HINGE 4. Open the hinge and clip the upper hinge pocket cover into place. 5. For the non-hinge side, fit a new alcove bracket using M6x16 countersunk screws.
  • Page 62 HINGE SWAP (OPTIONAL) REFIT LOWER HINGE 1. Fit a new lower hinge bracket on the new hinge side using two M6x16 screws Ensure the tab on the top of the bracket inserts into the slot in the plinth front bracket. 2.
  • Page 63 HINGE SWAP (OPTIONAL) REFIT LOWER HINGE 4. Secure with three #8x16 screws: one at the bottom left, one at the bottom right of the grille, and one behind the water filter hatch. 5. Clip the bottom hinge pocket cover into place.
  • Page 64 HINGE SWAP (OPTIONAL) REFIT CENTRE HINGE 1. Reinstall the centre hinge bracket and spacer using M5x12 countersunk screws. 2. Open the centre hinge and reinstall using two M6x16 countersunk screws.
  • Page 65 HINGE SWAP (OPTIONAL) SWAP UPPER DOOR BRACKET 1. Unscrew the four M5x10 screws to remove the upper adapter bracket from the top of the door. 2. Move the two nuts to the other side of the top of the door. 3. Install the new upper adapter bracket into the other side of the top of the door with four M5x10 screws.
  • Page 66 HINGE SWAP (OPTIONAL) SWAP LOWER DOOR BRACKET 1. Unscrew the M6x25 screw to remove the door panel locking bracket and washer from the bottom of the door. 2. Remove two M6x25 screws and one M5x30 screw to remove the lower adapter bracket and spacer.
  • Page 67 HINGE SWAP (OPTIONAL) REINSTALL DOOR 1. Secure the door to the top hinge and bottom/middle hinge with four M6x10 hex screws. 2. Activate the hinge spring by turning the T20 screws to the I position. 3. Reinstall all covers and trims...
  • Page 68 INSTALLER CHECKLIST Complete and keep for safe reference: Model Serial no. Purchase date Purchaser Dealer address Installer’s name Installer’s signature Installation company Installation date...
  • Page 70 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2024. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.

This manual is also suitable for:

Rs2484sRs2484shRs3084sRs3084shRs1884fRs2484f ... Show all
