MiniMc

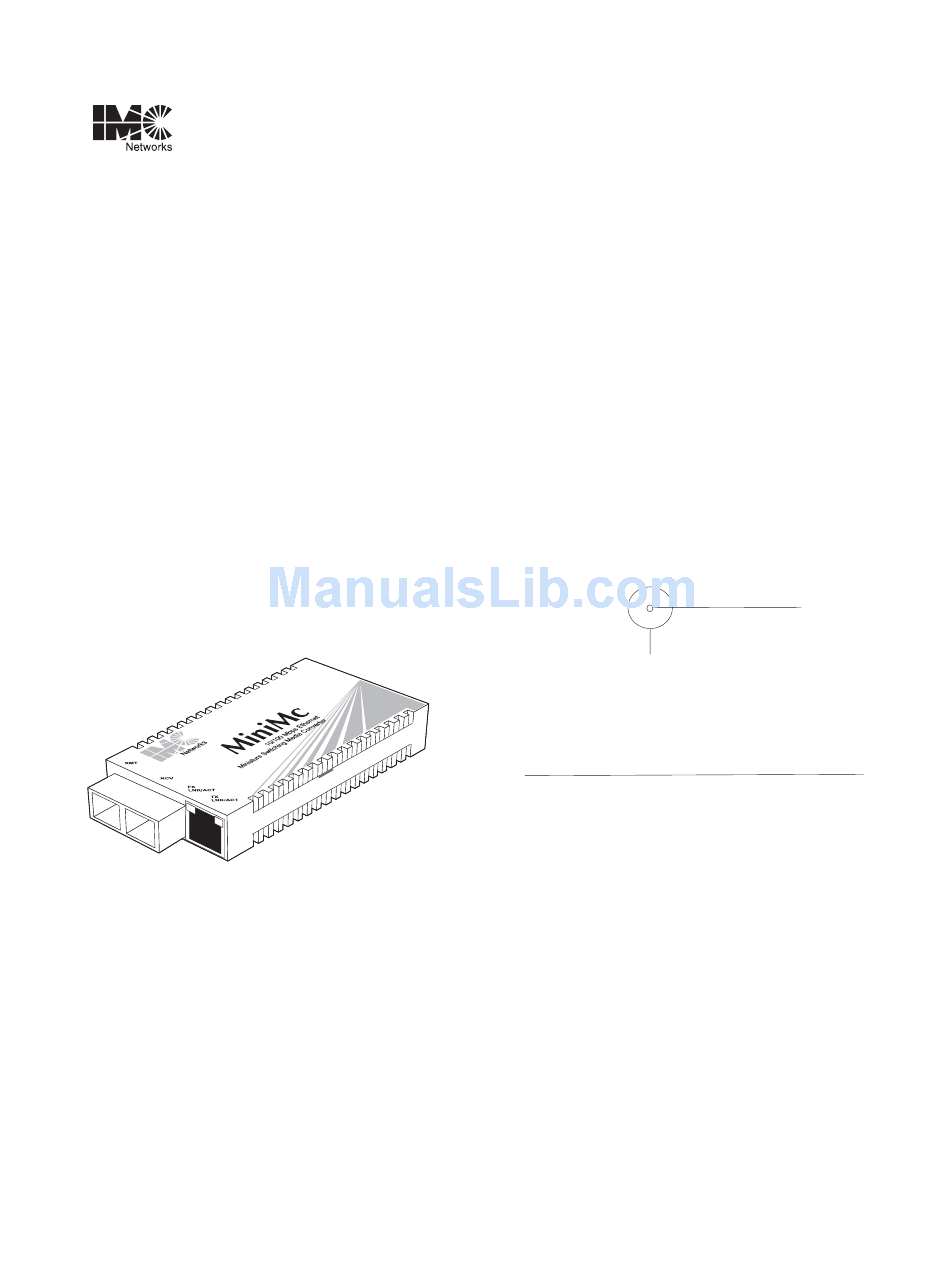

is a 10/100 auto-negotiating, miniature
™
media converter. The fiber port always operates
at 100 Mbps FDX; the copper port auto-senses the
connected device's speed and duplex mode:
10 Mbps or 100 Mbps and HDX or FDX (including
Flow Control).
MiniMc offers plug-and-play
operation, including the
AutoCross
automatically selects between a crossover work-
station or pass-through repeater hub connection
depending on the connected device.
protects against Broadcast storms, and allows
jumbo packets of up to 1916 bytes.
MiniMc
installs in an IMC Networks
(refer to its hardware manual for installation instruc-
tions) or as a standalone converter. As a standalone,
MiniMc
uses either a universal, external switching
power cube with 100 - 240 ±10% VAC input and
5V DC output, or
a USB connector to connect to
PC/laptops, self-powered hubs and high-powered
hubs.
MiniMc
Installation Guide
feature which
MiniMc
also
PowerTray/18
LED Operation
Each
MiniMc
includes two LEDs, located on the
RJ-45 connector. LED functions are as follows:
FX LNK/ACT:
Glows green when a link is
established on the fiber port; blinks green
when activity is detected on the fiber port.
TX LNK/ACT:
Glows Green when a link is
established on the copper port; blinks green
when activity is detected on the copper port.
IMC Networks Technical Support
Phone:
(949) 465-3000 or (800) 624-1070 (US/Canada)
+32-16-550880 (Europe)
Fax: (949) 465-3020
E-mail: techsupport@imcnetworks.com
Web: www.imcnetworks.com
Specifications
Operating Temperature:
32° to 122°F (0° to +50°C)
Storage Temperature:
-13° to +158°F (-25° to +70°C)
Humidity:
5% to 90% (non-condensing), 0 – 10,000 ft. altitude
Power Consumption (Typical):
500mA
Power:
100/240 ±10% VAC input, 5VDC output
+5V (±5%)
GRND ØV
NOTE: Use only the supplied IMC Networks power supply or
USB cable with this product. Using a non-IMC Networks
power source will void the warranty. For warranty details and
additional information please visit us online at:
www.imcnetworks.com/warranty.cfm
© 2003-2005 IMC Networks. All rights reserved.
The information in this document is subject to change without notice. IMC Networks
assumes no responsibility for any errors that may appear in this document.
trademark of IMC Networks. Other brands or product names may be trademarks and are
the property of their respective companies.
Document Number: 55-80632-00 A2
MiniMc
is a
August 2005
