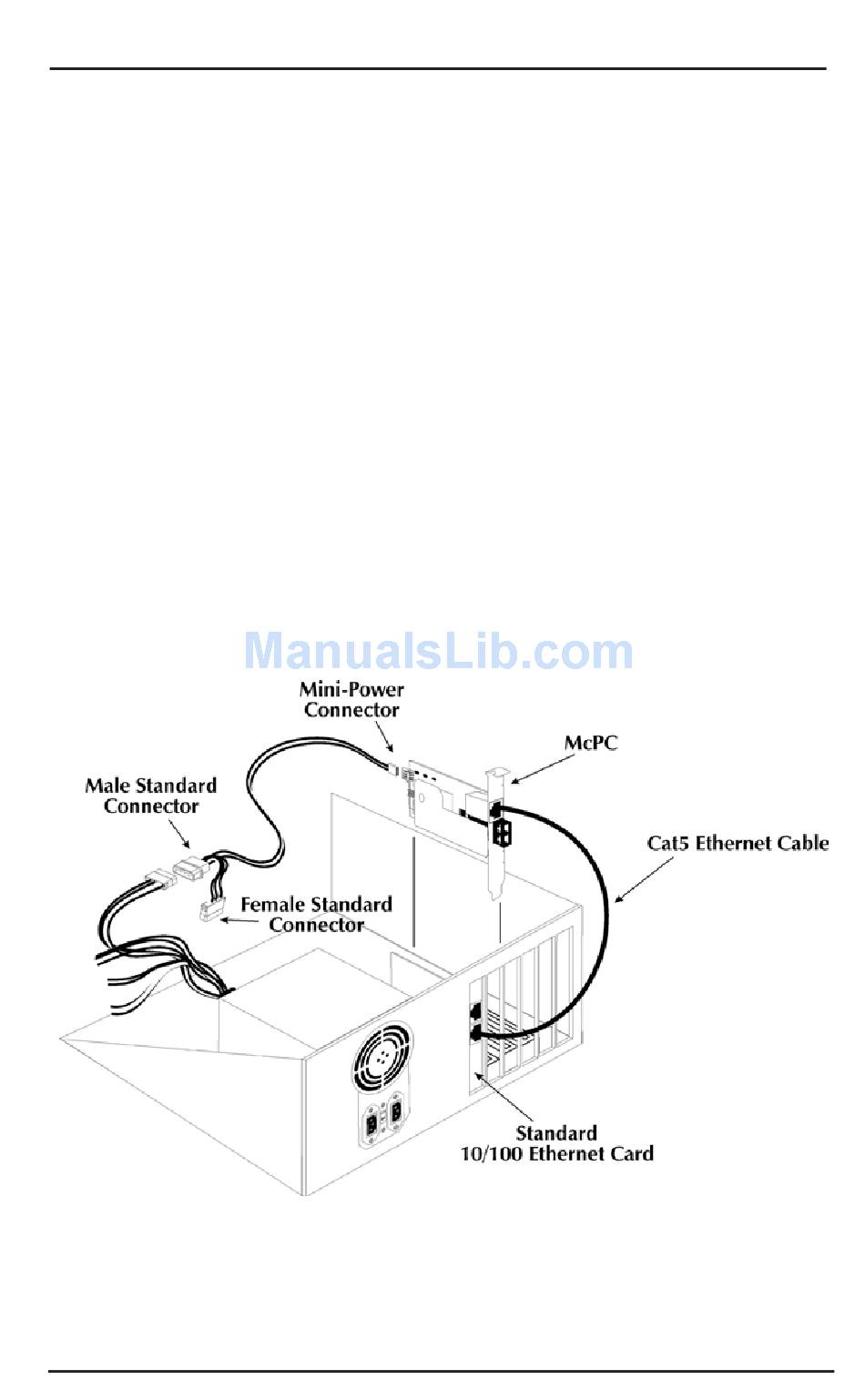

Installation
To install the McPC 10/100:
1. Power off the PC.
2. Remove the PC's cover.
3. Find an empty ISA slot.
4. Align the McPC 10/100 in the slot.
5. Mount the McPC 10/100 by screwing its bracket to the computer
casing.
6. Make sure the McPC 10/100 does not extend past the edge of the
PC's case.
7. Attach the keyed mini-power connector to the McPC 10/100.
8. Attach the male end of the "Y" connector to a standard size power
connector in the computer.
9. Replace the cover to the PC.
10.Attach the cables between the McPC 10/100 and the devices that
will be interconnected.
7
