Twisted Pair Crossover/Pass-Through Button; Led Indicators - IMC Networks McPC 10/100 Operation Manual

Tw i s t e d P a i r C r o s s o v e r / P a s s -
T h r o u g h B u t t o n

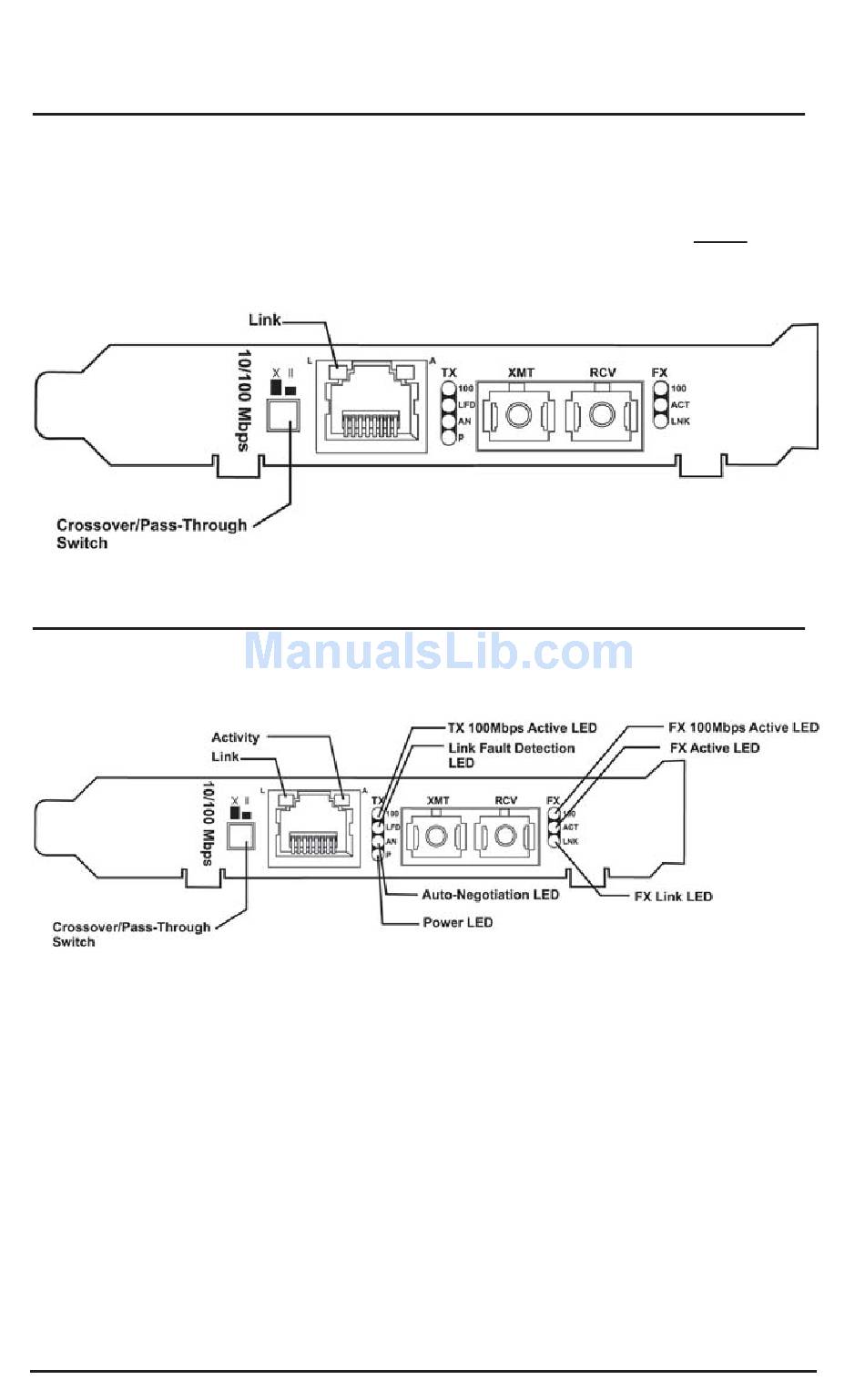

The McPC 10/100 features a crossover/pass-through button, located on
the faceplate next to the RJ-45 connector, to set the twisted pair
connection type. Select a pass-through connection by pressing the
button. A crossover connection is selected when the button is OUT. If it
is not known which connection is needed, set the button to whatever
setting makes the twisted pair LNK (link) LED glow.

LED Indicators

The McPC 10/100 features several diagnostic LEDs per port. The LED
functions are as follows:
T P
W I S T E D A I R
L Glows green when a twisted pair link is established.
A Glows yellow when activity is detected on the port.
100 Glows yellow when a 100 Mbps connection is detected.
LFD Glows green when Link Fault Detection is enabled.
(NOTE: This feature is only available when either Force 10 or
Force 100 mode is enabled. For more on this feature, see the
LFD LED Activity section below.)
AN Glows green when Auto-Negotiation mode is enabled.
P Glows green when unit has power.
