During normal operation, link integrity pulses are transmitted by all
point-to-point Ethernet devices. When an IMC Networks media convert-
er receives valid link pulses, it knows that the device to which it is
connected is up and sending pulses, and that the copper or fiber cable
coming from that device is intact. The appropriate "LINK" LED is lit to
indicate this. The IMC Networks media converter also sends out link
pulses from its copper and fiber transmitters, but normally has no way of
knowing whether the cable to the other device is intact and the link
pulses are reaching the other end. FiberAlert allows this information to be
obtained from the fiber, even when physical access to a remote device
(and its link integrity LED) is not available.
W I F A ?
H A T S I B E R L E R T

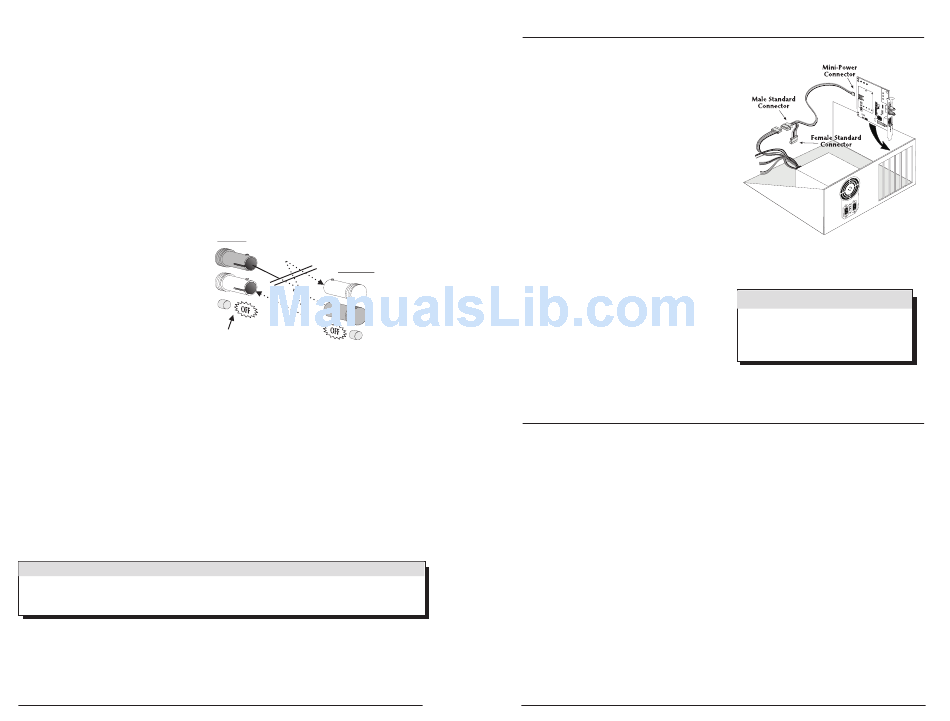

FiberAlert lets you know
when a fault occurs on
XMT
your fiber loop by stopping
data transmissions and RCV
affecting fiber LEDs on
LED
both sides of your net-
work. If a media converter
LED OFF = Broken Link
is not receiving a fiber link,
FiberAlert disables the
Local Link LED is OFF indicating a break in the fiber loop
media converter's fiber
transmitter, thus mirroring the link status of the opposite end of the fiber.
Both fiber link LEDs on either end of the link should extinguish, alerting
you to the fault.
Using FiberAlert, a local site administrator is notified of a fault and can
quickly determine where a cable fault is located without having to go to
the remote site.
For more information on FiberAlert, please visit the IMC Networks Web
site at www.imcnetworks.com/to-fa.htm. If you are unsure of how best to
implement this features in your configuration, please contact
IMC Networks technical support via phone at (800) 624-1070 (U.S. and
FiberAlert should only be activated on one side of a media extender. Activating
the feature on both sides would keep both transmitters off indefinitely.
Canada), +32-16-550880 (Europe) or via e-mail at:
techsupport@imcnetworks.com.
Local Site
Cable Break
Remote Site
RCV
XMT
LED
IMC Networks product with FiberAlert enabled —
Remote Site stops transmitting
N O T E
3
Installing McPC Gigabit
To install McPC Gigabit, perform the following steps:
• Turn off the power on your PC.
• Remove the cover.
• Find an empty slot (preferably
an ISA slot).
• Align McPC Gigabit in the slot.
• Mount McPC Gigabit by screw-
ing its bracket to the computer
casing.
• Make sure McPC Gigabit does
not extend past the edge of
your case.
• Attach the keyed mini-power
connector to McPC Gigabit.
• Attach the male end of the "Y"
connector to a standard size
power connector in your com-
puter.
• Replace the cover.
• Attach the cables between
McPC Gigabit and the devices that will be interconnected.

Installation Troubleshooting

• During installation, first test your fiber and twisted pair connections
with FiberAlert disabled. Then enable FiberAlert, if desired, just
before final installation. This will reduce the feature's interference
with testing.
• FiberAlert should only be enabled on one side of a media conver-
sion. Enabling it on both sides would keep both transmitters off
indefinitely.
• To test McPC Gigabit by itself, you must have an appropriate fiber
patch cable. First, connect McPC Gigabit to the twisted pair device
with a twisted pair cable. Next, loop a single strand of fiber from
the transmit port to the receive port of your media converter.
Finally, verify that you have both twisted pair and fiber link on your
media converter.
• Make sure that you are using the appropriate twisted pair cable
(i.e. crossover or pass-through). Gigabit Ethernet requires Cat-5
cabling and patch cords.
NOTE: McPC Gigabit does NOT
plug into the mother board.
N O T E
McPC Gigabit only needs power
from the computer; no additional
power source is necessary
4
