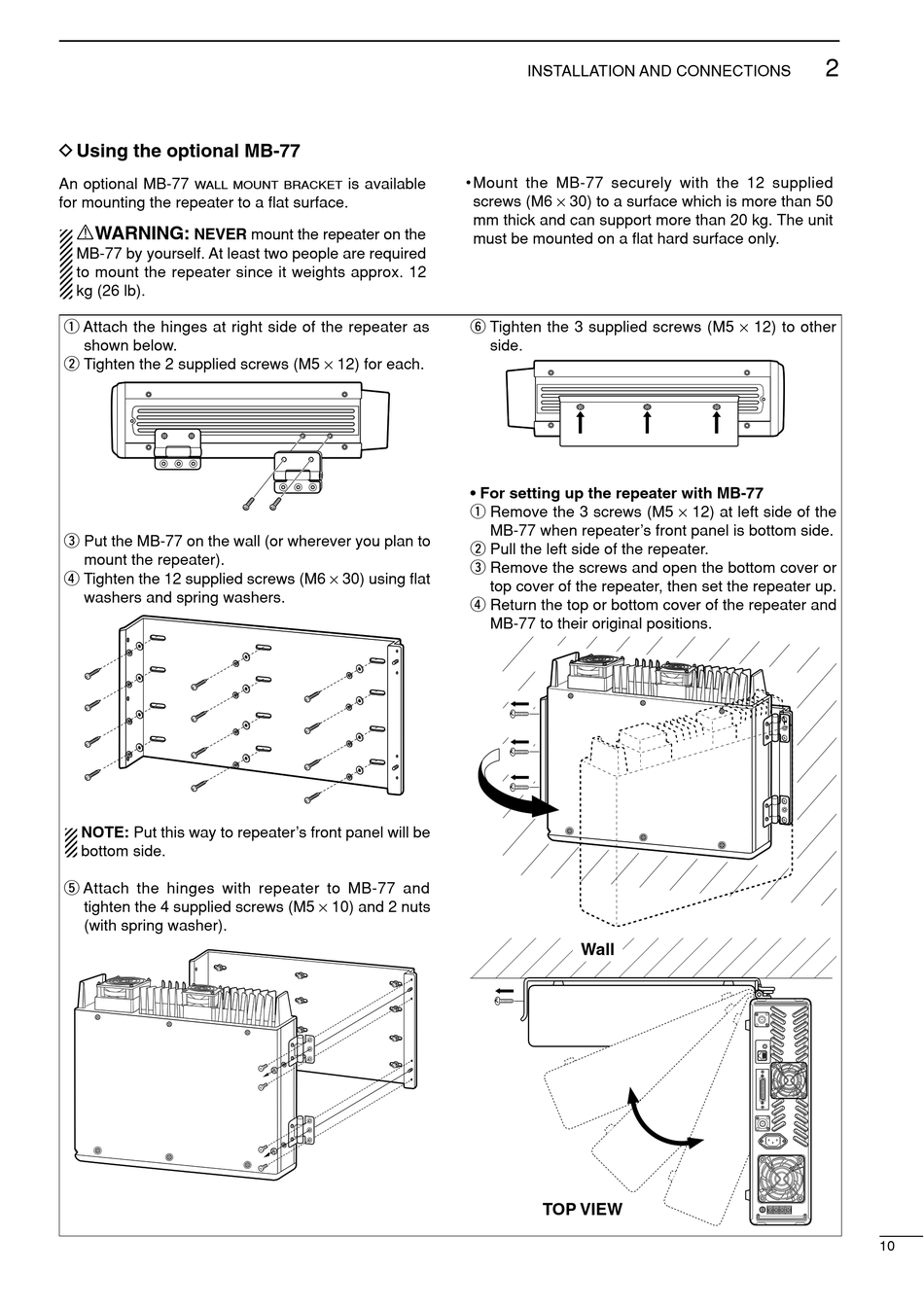

D Using the optional MB-77
An optional MB-77
WALL MOUNT BRACKET
for mounting the repeater to a flat surface.
RWARNING:
NEVER mount the repeater on the
MB-77 by yourself. At least two people are required
to mount the repeater since it weights approx. 12
kg (26 lb).
q Attach the hinges at right side of the repeater as
shown below.
w Tighten the 2 supplied screws (M5 × 12) for each.
e Put the MB-77 on the wall (or wherever you plan to
mount the repeater).
r Tighten the 12 supplied screws (M6 × 30) using flat
washers and spring washers.
NOTE: Put this way to repeater's front panel will be
bottom side.
t Attach the hinges with repeater to MB-77 and
tighten the 4 supplied screws (M5 × 10) and 2 nuts
(with spring washer).
• Mount the MB-77 securely with the 12 supplied
is available
screws (M6 × 30) to a surface which is more than 50
mm thick and can support more than 20 kg. The unit
must be mounted on a flat hard surface only.
y Tighten the 3 supplied screws (M5 × 12) to other
side.
• For setting up the repeater with MB-77
q Remove the 3 screws (M5 × 12) at left side of the
MB-77 when repeater's front panel is bottom side.
w Pull the left side of the repeater.
e Remove the screws and open the bottom cover or
top cover of the repeater, then set the repeater up.
r Return the top or bottom cover of the repeater and
MB-77 to their original positions.
INSTALLATION AND CONNECTIONS
Wall
TOP VIEW
2
10
