Optional Installation - Icom IC-F3 Instruction Manual

I UT-80
2-TONE UNIT,
UT-105
UNIT or
Logic Board
Only one of the above optional units can be installed in the
IC-F3/IC-F4.
q Remove the battery pack from the transceiver as shown in
Fig. 1.
w Remove the service cover. (Fig. 2)
e Take out the protective sponge. (Fig. 2)
• This sponge is not used when options are installed.
r Connect the optional unit as shown in Fig. 2.
t Replace the service cover.
UT-96
5-TONE
TM
SmarTrunk II

OPTIONAL INSTALLATION

6
q

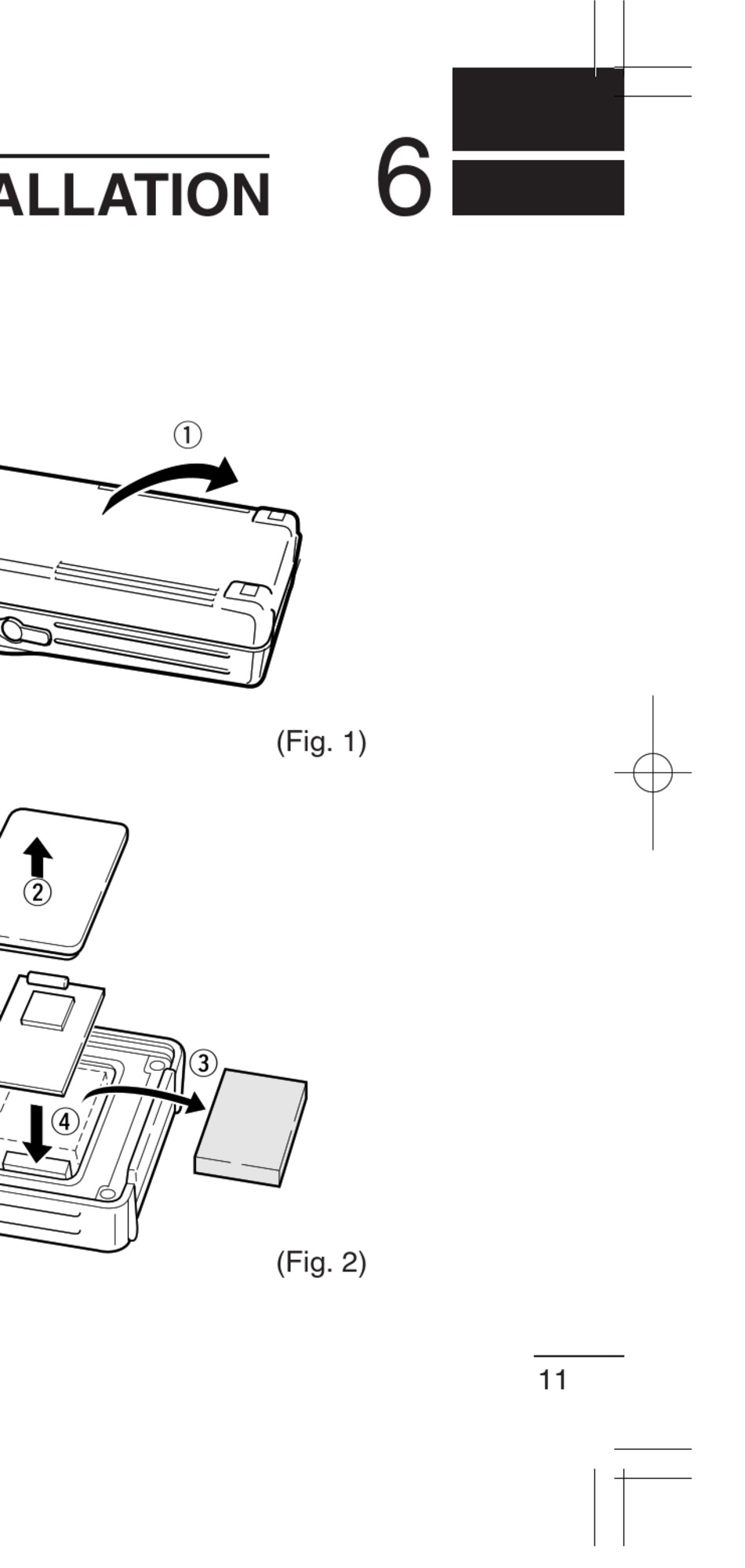

(Fig. 1)
w
e
r
(Fig. 2)
