Charging

1. Remove the PLANIX camera system, system battery, and power supply from the carrying case.
2. Insert the system battery into the PLANIX.
3. Plug the power supply into an electrical outlet. On the power supply, a blue light should turn on to
indicate that the power supply is working.
4. Plug the power supply into the charging port. After ~10 seconds, the charging indicator light on the
recessed user interface should turn on and begin flashing green to indicate that the PLANIX is charging.
Normal flashing interval is ~1 second on and ~1 second off.
5. You can set PLANIX upright on its feet on a flat surface or it can be put back into the carrying case.
6. Once the PLANIX is fully charged, the charging indicator light should turn solid green. Unplug the
power supply from the system.
7. Unplug the power supply from the electrical outlet.
Notes
The PLANIX smart battery is shipped in sleep
●
mode. Before it can be used, the battery must
be plugged in to charge for >30 seconds in
order to disengage sleep mode.
Only the specified power supply shipped with
●
the PLANIX may be used to charge the system.
To charge the 360° camera and PLANIX
●
simultaneously, the PLANIX must be powered
on. If PLANIX is powered off, its USB ports will
not supply power to charge the 360° camera
and the camera will be charged from the
PLANIX system battery next time PLANIX is
powered on, thus reducing the available system
battery runtime.
If the PLANIX is powered on while charging, the
●
inactivity power off timeout settings are
ignored.
If the PLANIX is powered on while charging, the
●
laser scanner will power off to eliminate noise
and reduce required charging time.
If the PLANIX is powered on while charging and
●
the laser scanner has been powered off, taking
a picture will power the laser scanner back on.
The charging indicator light may blink rapidly if
●
there is an error detected; remove and reinsert the power supply.
Avoid inserting or removing the system battery while the power supply is connected.
●
Avoid removing the system battery while the PLANIX is powered on.
●
Setup ➤ Connect ➤ Survey ➤ Stitch

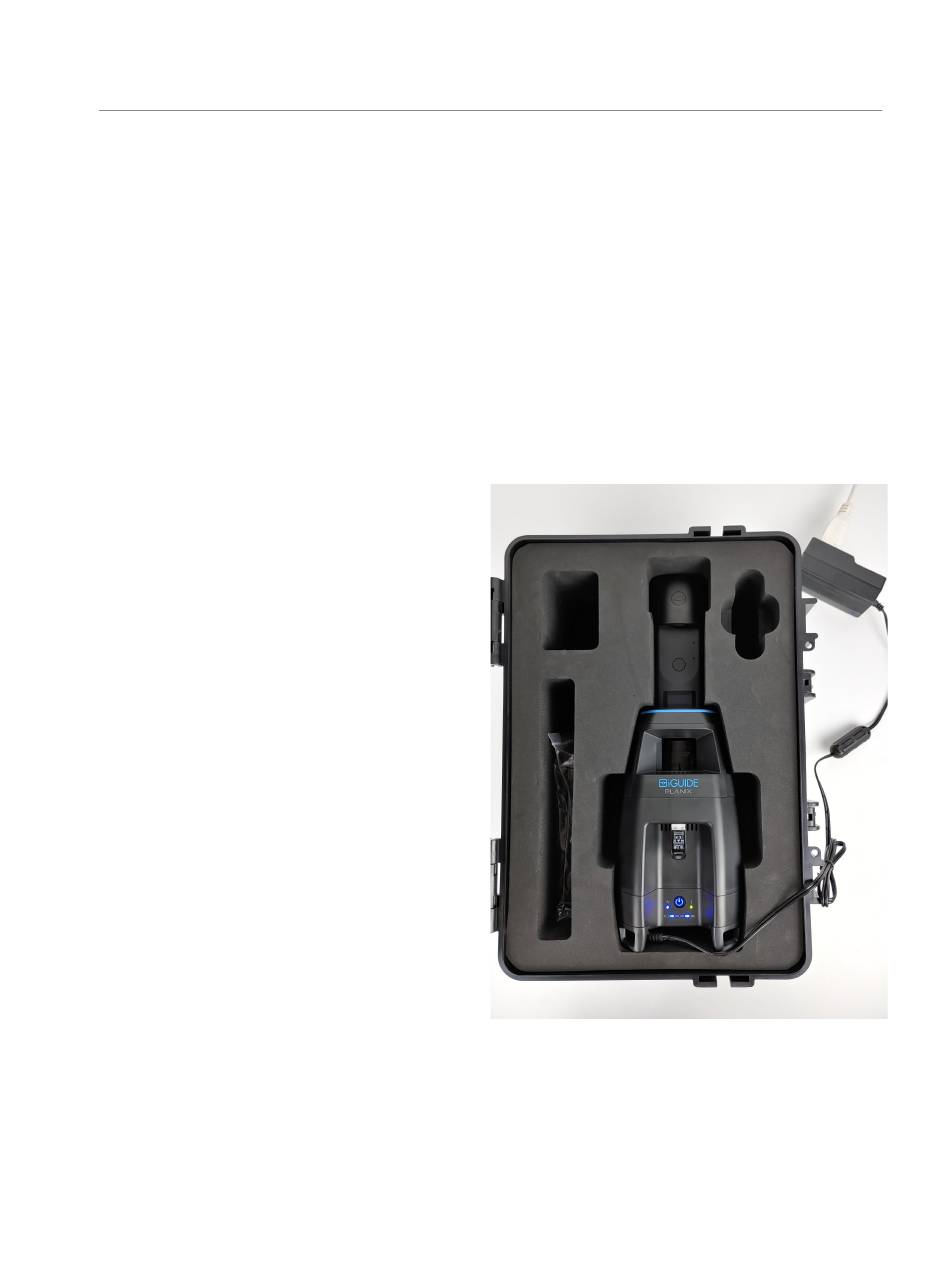

Figure 5 - Charging, PLANIX turned on
