Setup

1. Remove the PLANIX camera system from the carrying case.
2. Ensure the PLANIX system battery is charged.
3. Level the ball head on the tripod.
4. Attach a QR plate to PLANIX and attach the QR plate to the ball head on the tripod.
5. Raise the tripod so that the laser scanner is about 120 cm (~4 feet) from the floor surface for optimal
measurement height and 3D touring experience.
6. Remove the lens cap from the 360° camera.
7. Ensure the PLANIX has a USB drive inserted.
Notes
The laser scanner should be
●
warmed up for 5 minutes (system
powered up) for best results.
The 360° camera should not be
●
gripped to remove the PLANIX
from the carrying case.
It's important to stage the
●
property before beginning to
survey: open doors, turn on lights,
and ensure all rooms are cleared
of clutter so as to allow a direct
line-of-sight.
Direct line-of-sight between
●
consecutive camera positions is
important to allow the PLANIX to
see as many structural and
non-structural elements of the
home as possible and ensure
successful automatic scan
alignment.
It's important to keep the tripod at a consistent height as much as possible for optimal 3D touring.
●
Raise and lower the tripod if
necessary depending on circumstances and surroundings.
Avoid setting the PLANIX upon an unlevel surface without first adjusting the tripod.
●
Consider loosening one of three tripod legs so as to allow the leg to swing freely in order to fit through
●
narrow areas and doors more easily. When doing this, ensure that the loosened leg is securely
extended before setting the tripod down for each scan.
For direct attachment to a tripod without a QR plate and a ball head you may need a
●
⅜"
as is a standard tripod thread.
Setup ➤ Connect ➤ Survey ➤ Stitch

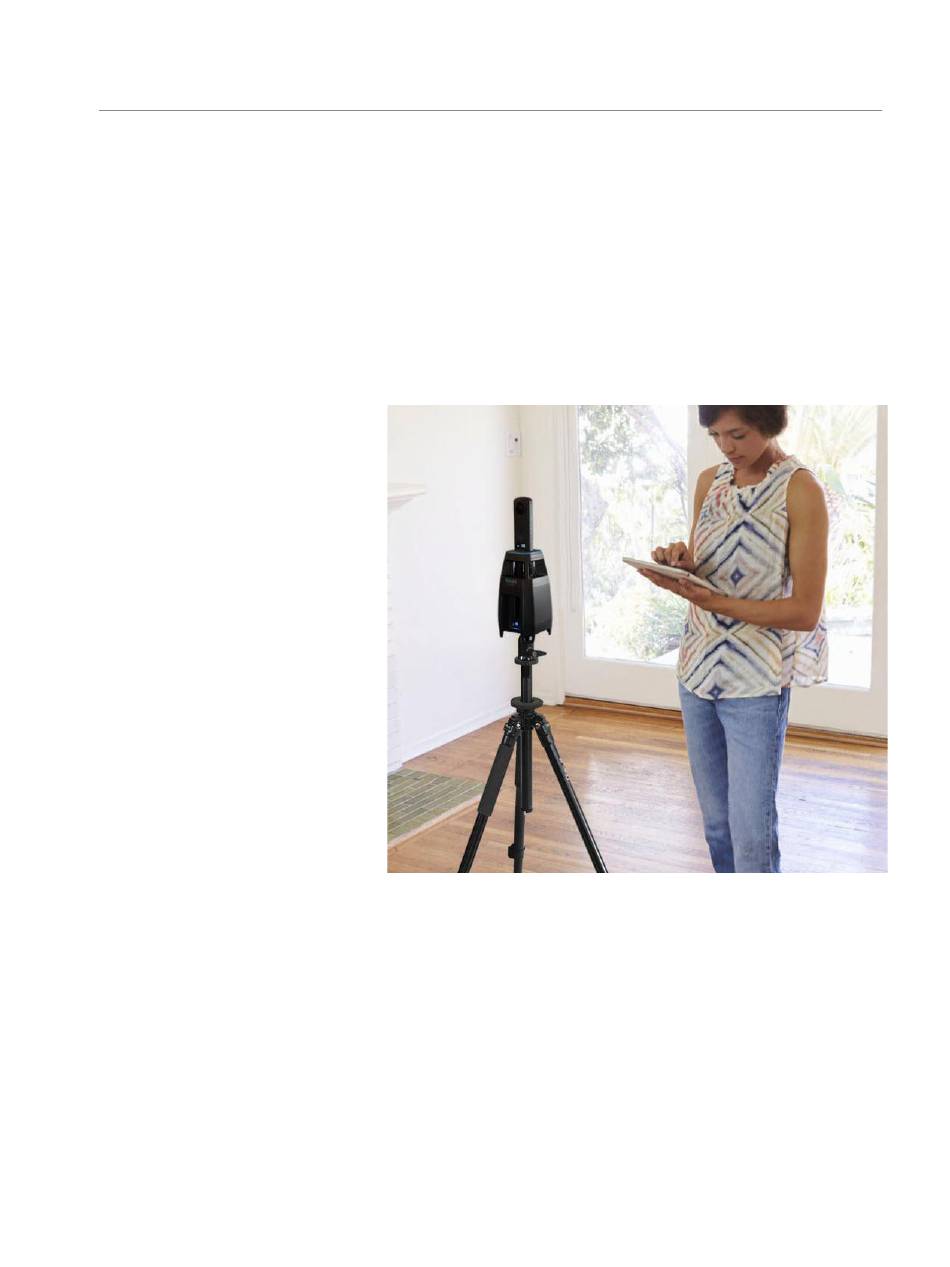

Figure 6 - Proper tripod setup
¼" ⅜"
to adapter
