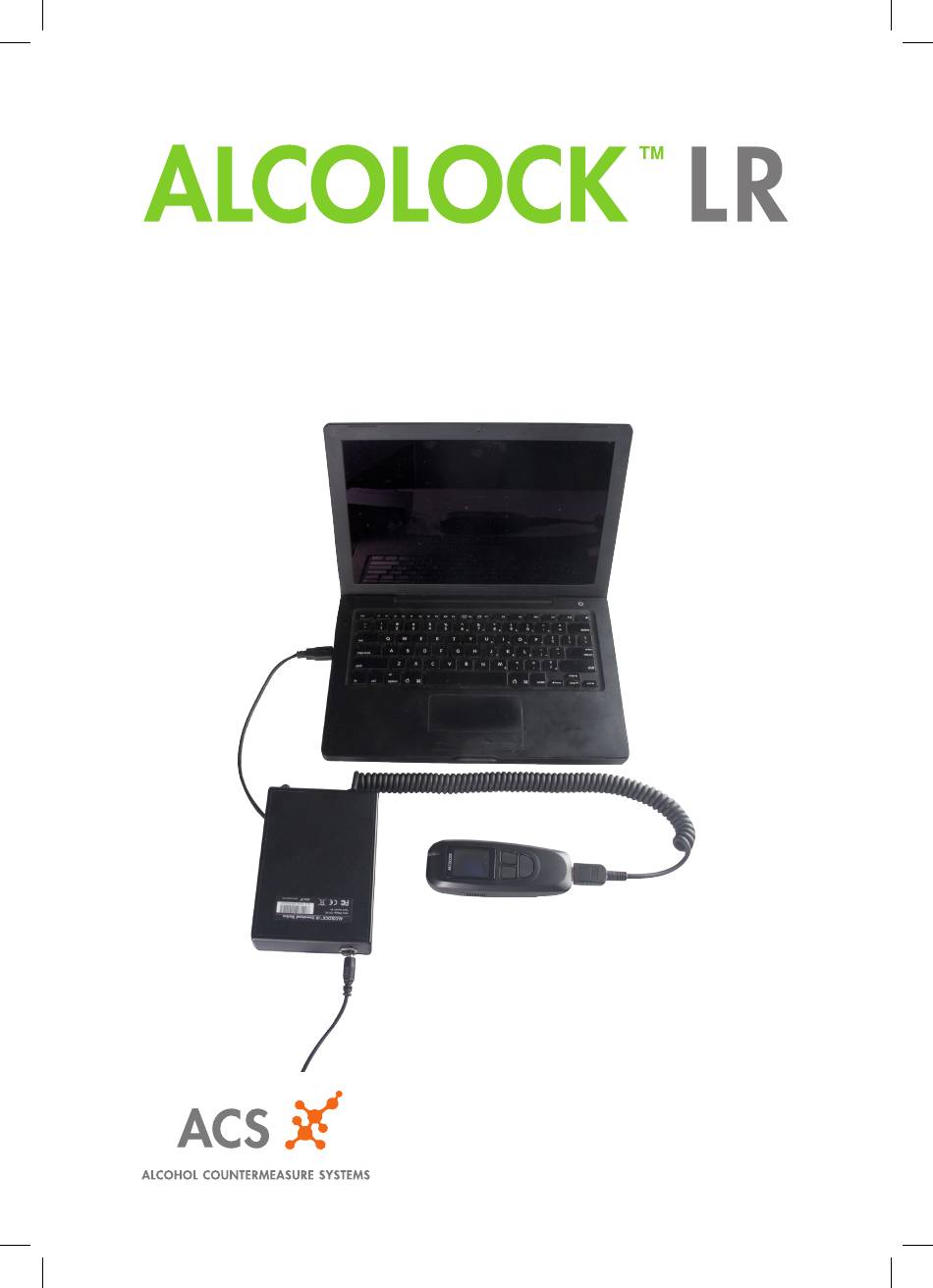

  • Page 1 DOWNLOAD STATION Instruction manual...
  • Page 2 Introduction This manual provides instructions for the connection of the ALCOLOCK LR download station. ATTENTION! • This guide is intended for authorized service technicians only • Use with the ALCOLOCK LR alcohol interlock only • This guide is intended for use with the INTERTRACK enterprise (ITE) web application manual • Ensure that the power-supply power ratings conform to the local supply ratings • Do not force a misaligned connector into place, as doing so may damage the components Download station – description • Downloads event log from ALCOLOCK LR handset • Operates with ITE web application ACS parts • ALCOLOCK LR download station (North America): 79-008952 •...
  • Page 3 Connect the power supply plug to a wall outlet. Connect the single-pin power supply connector (A) to the download station. Connect the HDMI connector (B) to the ALCOLOCK LR handset as follows: Turn the handset so that its back is facing you. Hold the HDMI connector with the “PUSH” button facing you. Align the connector pins to the handset connector and carefully insert the connector. The connector latches into place. Plug the USB connector (C) into the USB port of the PC, with the USB symbol face-up. “PUSH” Download station connection is complete. Refer to the ITE web application manual for actual event log download procedures.
  • Page 4 Toronto, Ontario M9W 6J2 CANADA acs-corp.com ALCOLOCK, INTERTRACK, ALCOHOL COUNTERMEASURE SYSTEMS, ACS and The Molly are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems Corp. © Alcohol Countermeasure Systems, 2012 The information disclosed in this document is the valuable property of Alcohol Countermeasure Systems and all copyright and other proprietary rights to this document are reserved.
