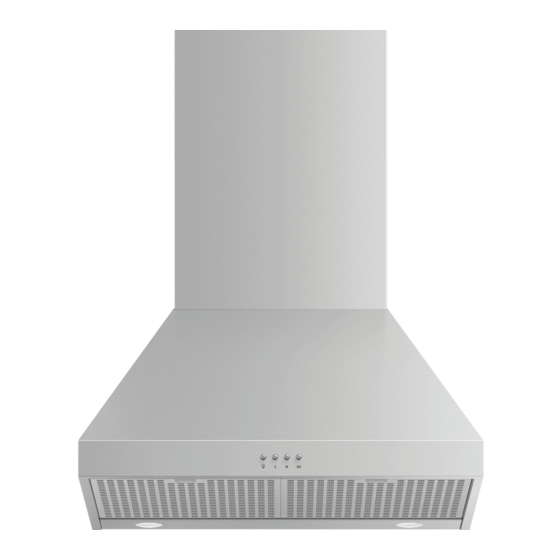

- Page 1 WALL RANGE HOOD, CHIMNEY PYRAMID CLASSIC HC24PCX1, HC30PCX1, HC30PCB1, HC30PCR1, HC30PCW1, HC36PCX1, HC36PCB1, HC36PCR1 & HC36PCW1 INSTALLATION GUIDE US CA...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Parts supplied Prior to installation Product dimensions – 24" models Product dimensions – 30" models Product dimensions – 36" models Installation height Attachment dimensions Venting options Prepare range hood Attach brackets and mounting screws Hang range hood Electrical connection Attach chimney Final checklist Registration To register your product visit our website: fisherpaykel.com/register... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. •... - Page 5 SAFETY AND WARNINGS WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.
-
Page 6: Parts Supplied
PARTS SUPPLIED WALL RANGE HOOD, CHIMNEY PYRAMID CLASSIC HC24PCX1, HC30PCX1, HC30PCB1, HC30PCR1, HC30PCW1, HC36PCX1, HC36PCB1, HC36PCR1 & HC36PCW1 INSTALLATION GUIDE US CA Range hood (1) Installation guide (1) Chimney (1) 3/8" (10 mm) Self tapping Upper chimney (1) Power connection box (1) -
Page 7: Prior To Installation
PRIOR TO INSTALLATION The manufacturer is not liable for any damage caused by not following these instructions. Unpack the range hood. Ensure the voltage (V) and the frequency (Hz) indicated on the rating plate match the voltage and frequency of the installation site. Check that the area behind the installation surface to be drilled is clear of any electrical cables or pipes etc. -
Page 8: Product Dimensions - 24" Models
PRODUCT DIMENSIONS – 24" MODELS UL connection box PLAN PROFILE FRONT BOTTOM... - Page 9 PRODUCT DIMENSIONS – 24" MODELS HC24 PRODUCT DIMENSIONS A Maximum overall height of product 38 3/8 B Minimum overall height of product 25 1/16 C Overall width of product 23 9/16 D Overall depth of product 19 11/16 E Height of product 11 3/4 F Width of chimney 12 5/8...
-
Page 10: Product Dimensions - 30" Models
PRODUCT DIMENSIONS – 30" MODELS UL connection box PLAN PROFILE FRONT BOTTOM... - Page 11 PRODUCT DIMENSIONS – 30" MODELS HC30 PRODUCT DIMENSIONS A Maximum overall height of product 38 3/8 B Minimum overall height of product 25 1/16 C Overall width of product 29 3/4 D Overall depth of product 19 11/16 E Height of product 11 3/4 F Width of chimney 12 5/8...
-
Page 12: Product Dimensions - 36" Models
PRODUCT DIMENSIONS – 36" MODELS UL connection box PLAN PROFILE FRONT BOTTOM... - Page 13 PRODUCT DIMENSIONS – 36" MODELS HC36 PRODUCT DIMENSIONS A Maximum overall height of product 38 3/8 B Minimum overall height of product 25 1/16 C Overall width of product 35 3/8 D Overall depth of product 19 11/16 E Height of product 11 3/4 F Width of chimney 12 5/8...
-
Page 14: Installation Height
INSTALLATION HEIGHT HEIGHT DIMENSIONS A Ducted installation 25 1/16 Minimum height Maximum hieght 38 3/8 Recirculation 26 5/8 Minimum height Maximum hieght 38 3/8 B Height top of cooktop to base of product 26 – 30 660 – 762 This range hood must be installed no lower than the minimum height indicated in the table above. -
Page 15: Attachment Dimensions
ATTACHMENT DIMENSIONS Upper chimney bracket attachment points Chimney bracket attachment points Upper range hood hood attachment points Lower range hood attachment points ATTACHMENT DIMENSIONS A Lower range hood attachment point width B Lower range hood attachment point height 1 3/4 C Upper range hood attachment point width 9 7/8 D Upper range hood attachment point height... -
Page 16: Venting Options
VENTING OPTIONS Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. Ducted It is recommended that 8" (203mm) diameter, rigid or semi-rigid ducting is used. This will require a 8 1/4" (210mm) (min) round hole in the ceiling or wall. Care should be taken to position the hole correctly. - Page 17 ELECTRICIAL REQUIREMENTS Rating plate location Before connecting the range hood to the power supply, ensure the voltage and frequency indicated on the rating plate match that of the installation location. MODEL FREQUENCY VOLTAGE HC24, HC30, HC36 60 Hz 120 V...
-
Page 18: Prepare Range Hood
PREPARE RANGE HOOD Warning: Failure to install the screws or fixing device in accordance with these instructions may result in an electrical hazards. Remove the filters –pull the catch and tilt the filter downwards until it disengages from the supports. -
Page 19: Attach Brackets And Mounting Screws
ATTACH BRACKETS AND MOUNTING SCREWS Temporarily mark the height of the bottom of the range hood and the centre of the cooktop on the wall according to the information provided in 'Installation Height'. Attach the chimney bracket and upper chimney bracket (if using the upper chimney). -
Page 20: Hang Range Hood
HANG RANGE HOOD Hang the range hood off the upper range hood mounting screws with 1/16" (2mm) gap. Hang off the keyhole attachment points on the back of the range hood then tighten the screws. Attach the lower range hood mounting screws to fix the range hood to the wall. -
Page 21: Electrical Connection
ELECTRICAL CONNECTION 1 Run three wires from the power connection box on the rangehood to the power point. 2 Two wires for the power supply and one for the ground wire. Open the power connection box on the range hood and secure the power conductor with a strain relief (not included). -
Page 22: Attach Chimney
ATTACH CHIMNEY Bend the tabs on the chimney. REAR VIEW Place chimney around the range hood chassis and hang off the chimney bracket. Extend the upper chimney and attach to the upper chimney bracket with 10mm screws. -
Page 23: Final Checklist
