Installation Instructions
Contents of Packaging
Installation instructions User guide
Ventilation hood (1)
manual (1)
Chimney (1)
Upp
https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions
Updated: Sun, 04 Nov 2018 05:00:28 GMT
Powered by
1
Advertisement
Table of Contents
Related Manuals for Fisher & Paykel HC24PHTX1
Summary of Contents for Fisher & Paykel HC24PHTX1
-
Page 1: Installation Instructions

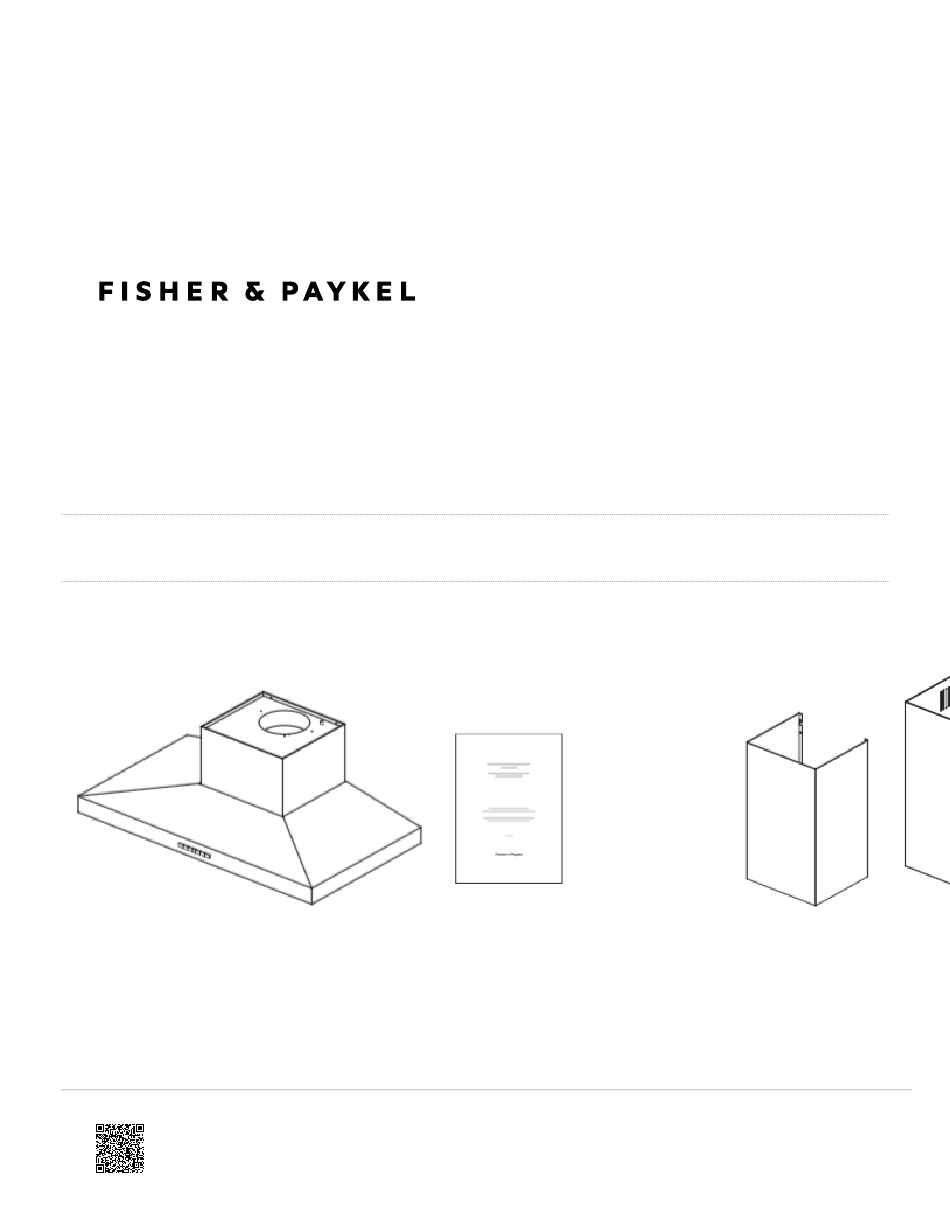

Installation Instructions Contents of Packaging Installation instructions User guide Ventilation hood (1) manual (1) Chimney (1) https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions Updated: Sun, 04 Nov 2018 05:00:28 GMT Powered by... - Page 2 6” (15 Power connection Ducti Upper chimney bracket (1) Chimney bracket (1) box (1) back 13/32” (10 mm) 1 3/16” (30 mm) Self tapping 1 3/16” (30 mm) Expansion plug (10) Self tapping screw (10) screw (4) 13/32” 1 23/32” (44 mm) Drywall expansion plug (8) https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions Updated: Sun, 04 Nov 2018 05:00:28 GMT Powered by...
-
Page 3: Product Dimensions
Product Dimensions https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions Updated: Sun, 04 Nov 2018 05:00:28 GMT Powered by... - Page 4 HC24PHTX1 HC30PHTX1 HC36PHTX1 PRODUCT DIMENSIONS inches (mm) inches (mm) inches (mm) 25 25/32” (655) 25 25/32” (655) 25 25/32” (655) A. Min overall height of product 43 1/16” (1094) 43 1/16” (1094) 43 1/16” (1094) A. Max overall height of product 23 17/32”...
-
Page 5: Height Of Ventilation Hood
Height of Ventilation Hood https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions Updated: Sun, 04 Nov 2018 05:00:28 GMT Powered by... -
Page 6: Venting Options
Installation Dimensions inches (mm) L. Installation height Ducted min. 26 25/32” – max. 43 1/16” (min. 680 – max. 1094) Recirculation min. 29 ” – max. 43 1/16” (min. 740 – max. 1094) M. Height top of cooktop to base of product min. -
Page 7: Before Installing Your Ventilation Hood
Recirculating To enable the product to operate with the air recirculating, please purchase a recirculation diverter and carbon filters (refer to the ‘Parts and accessories’ section). This recirculation diverter is required to channel the air out the side vents at the top of the chimney and the carbon filters are required to remove odors. A ducting hole is not required in the wall or ceiling if the ventilation hood is installed to operate with exhaust air recirculating. -
Page 8: Attach Chimney Brackets And Ventilation Hood Mounting Screws To The Wall
• Temporarily mark the height of the bottom of the ventilation hood and the center of the cooktop on the wall according to the information given in the ‘Installation instructions – Height of ventilation hood’ section. • The wall used for mounting the ventilation hood should have sufficient strength and a flat surface. 2. - Page 9 Product Dimensions inches (mm) O. Lower ventilation hood attachment point height 1 13/16” (46) P. Upper ventilation hood attachment point width 9 7/8” (250) Q. Upper ventilation hood attachment point height 11 3/8” (288) R. Chimney bracket attachment point width 9 1/4”...
-
Page 10: Attach Ducting Adapter And Power Connection Box To The Ventilation Hood
Fig.3 3. Attach ducting adapter and power connection box to the ventilation hood: • Place the ducting adapter onto the ventilation hood and screw it in place using 13/32” (10 mm) screws. • Place the power connection box onto the ventilation hood and screw it in place using 13/32”... -
Page 11: Electrical Connection
• Hang the ventilation hood off the upper ventilation hood mounting screws with 3/32” (2 mm) gap. Hang off the keyhole attachment points on the back of the ventilation hood then tighten the screws. • Attach the lower ventilation hood mounting screws to fix the ventilation hood to the wall. -
Page 12: Attach The Ducting
6. Attach the ducting: • Attach ducting to the ducting adapter using aluminum duct tape and vent outside. 7. Attach chimney: • Bend the tabs on the chimney (A). • Place chimney around the ventilation hood chassis and hang off the chimney bracket (B). •... -
Page 13: Remove Packaging
8. Remove packaging: • Remove all packaging and protective wrappings. https://producthelp.fisherpaykel.com/us/Cook/Ventilation/Pyramid/HC36PHTX1/User_Guide_HC36PHTX1/03_installation_instructions Updated: Sun, 04 Nov 2018 05:00:28 GMT Powered by...
