SWERVEBOT BUILDING INSTRUCTIONS
13

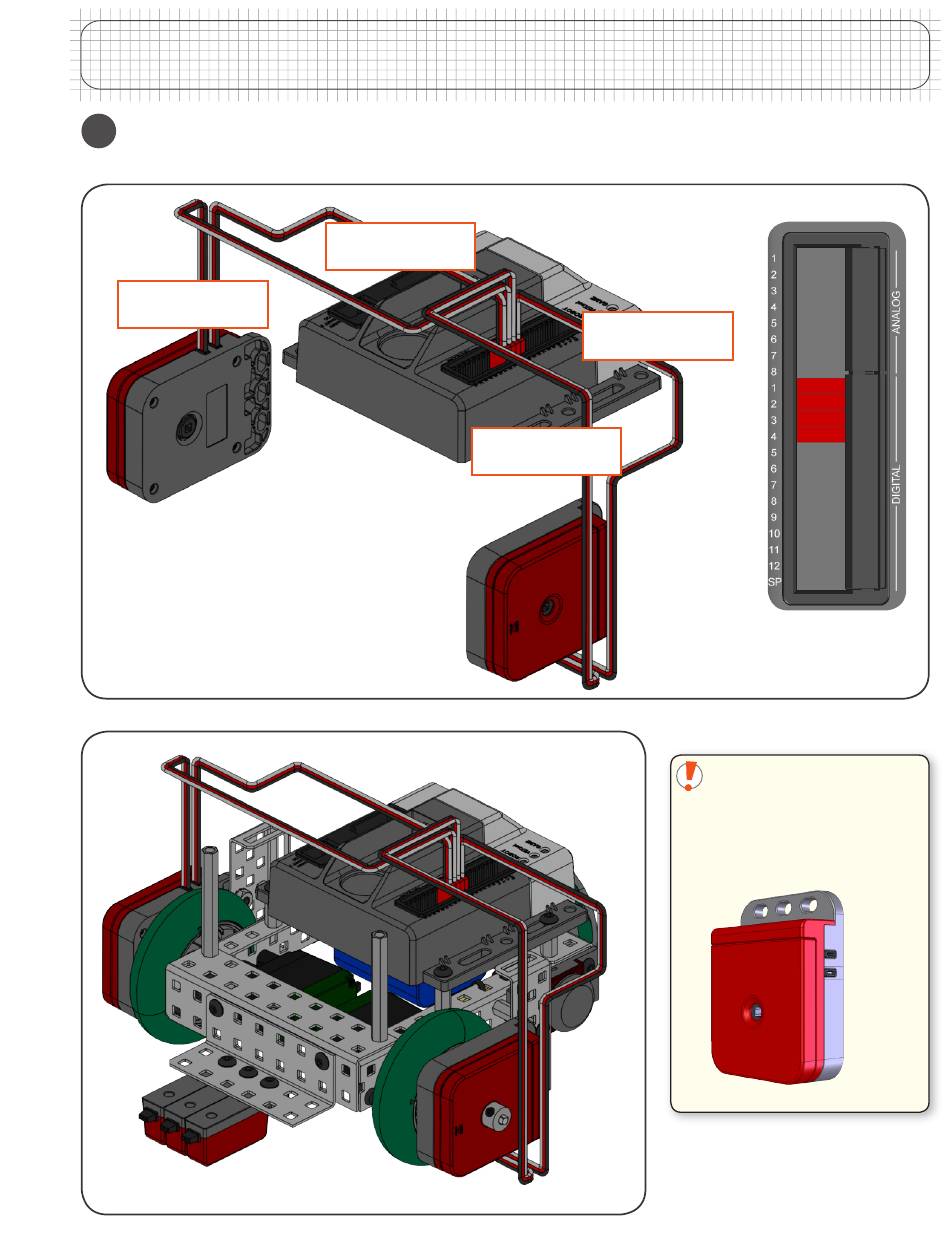

Wiring the Encoders
Bottom wire to
DIGITAL PORT 2
© 2011 Carnegie Mellon Robotics Academy / For use with VEX
Top wire to
DIGITAL PORT 1
Bottom wire to
DIGITAL PORT 3
Robotics Systems
®
Top wire to
DIGITAL PORT 4
Building Tip:
Encoder Wires
In the step above, the top
encoder wire is the wire closer
to the mounting holes.
ROBOTC
Top
Bottom
Swervebot 1.1 • 28
