WEIGHT BENCH STR-400
MANUAL
ENG 09/2010

Advertisement

loading
Need help?

Need help?

Do you have a question about the STR-400 and is the answer not in the manual?

Questions and answers

Related Manuals for Gymstick STR-400

Summary of Contents for Gymstick STR-400

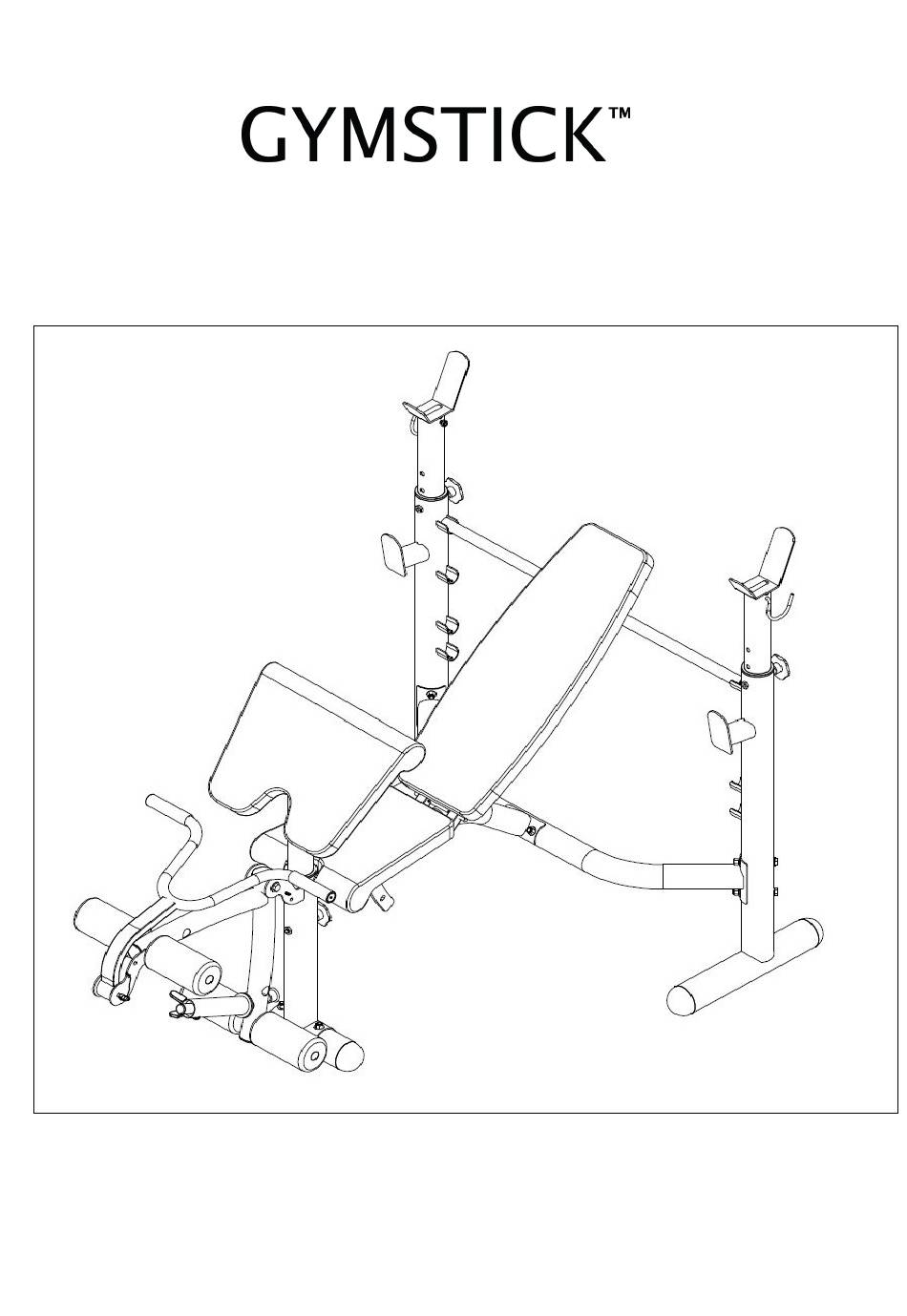

  • Page 1 WEIGHT BENCH STR-400 MANUAL ENG 09/2010...
  • Page 2 (1) Cross bar 1pc (3) Adjustable upright tube 2pcs (2L) Left upright 1pcs (2R) Right upright 1pcs (4) Arm curl frame 1pc (5) Leg extension 1pc (6) Extension handlebar (7) Front upright tube 1pc (8) Front stabilizer 1pc (9) Main frame 1pc (10) Seat adjustable plate 1pc (11) Seat frame 2pcs (13) Backrest frame 2pcs...
  • Page 3 (27) Round end over cap (28) Round end cap 2 5mm) 1pcs 7 6mm) 6pcs (29) Knob bolt 3pcx (30) Adjustable knob 1pc Φ Φ (34) Hex Bolt (M10 x 95mm) (32) Square End Cap (33) Round end cap 4pcs (31) Round open plug 3pcs 2 5mm) 8pcs 2 8mm) 2pcs...

  • Page 4: Foam Roller

    PART LIST DESCRIPTION DESCRIPTION CROSS BAR HANDLE GRIP LEFT UPRIGHT ROUND END CAP(Φ25mm) RIGHT UPRIGHT ROUND END OVER CAP (Φ25mm) ADJUSTABLE UPRIGHT TUBE ROUND END CAPS(Φ76mm) ARM CURL FRAME KNOB BOLT LEG EXTENSION ADJUSTABLE KNOB EXTENSION HANDLEBAR ROUND OPEN PLUG FRONT UPRIGHT TUBE SQUARE END CAP(□25MM) FRONT STABILIZER...

  • Page 6: Hex Bolts

    STEP 1 Unpack the carton and remove the packing materials Place all parts on the floor carefully A. Attach the two Upright (2L&2R) to the Cross Bar (1) with Upright connect Plate (17) using four Hex Bolts (34), eigth Curved Washers (35) and four Lock Nuts (36) M10*95mm M M M M 1 0 1 0 1 0 1 0...
  • Page 7 STEP 2 A. Attach the Front Upright Tube (7) to the Front Stabilizer (8) using two Carriage M10 x 90mm Bolts (38), two Curved Washers (35) and two Lock Nuts (36). B. Attach the Main Frame (9) to Front Upright Tube (7) using two M10x70mm Hex Bolts (40), four Curved Washers (35) and two Nylon Locknuts (36).
  • Page 8 STEP 3 A. Insert the Seat Adjustable Plate (10) into the Main Frame (9) using the Adjustable Knob (30). Attcah both Seat Frames (11) to Main Frame (9) and Seat Adjustable Plate (10) using one Hex Bolt (41), two Flat Washers (45) and one Nylon Locknut (35) as M10 x 155mm shown.
  • Page 9 STEP 4 A. Attach the Seat (20) to the Seat Frame (11) using four Flat Washers(44) and four M8x40mm Bolts(42) B. Attach the Backrest (21) to the Backrest Frame (13). Secure them with four M8 Flat 44) and four M8x40mm Bolts(42) Washers( C.
  • Page 10 STEP 5 A. Attach the Leg Extension (5) into Front Upright Tube (7) using Hex Bolt (39), M10 x 75mm Flat Washers (45), and one Nylon Locknut (36). B. Insert two Foam Roller Tubes (12) into the Leg Extension (5). Slide four Foam Rollers (19) onto both sides of each Foam Roller Tube (12).
  • Page 11 Insert the Lock Pin (47) to Main Frame (9) and please lock Backrest Frame (13) with Φ8*110mm Main Frame (9) for upright position. For safety please lock Leg Extension (7) by placing the Φ8*65mm Lock Pin (46) in middle hole at Front Upright Post bracket when device not in use.
  • Page 12 • Non-compliance of the operating instructions Wear parts and expendable parts are also not covered. The device is only intended for home use. The warranty does not apply to commercial use of any kind. Manufactured by: Gymstick International Oy Ratavartijankatu 11 15170 Lahti, FINLAND...
