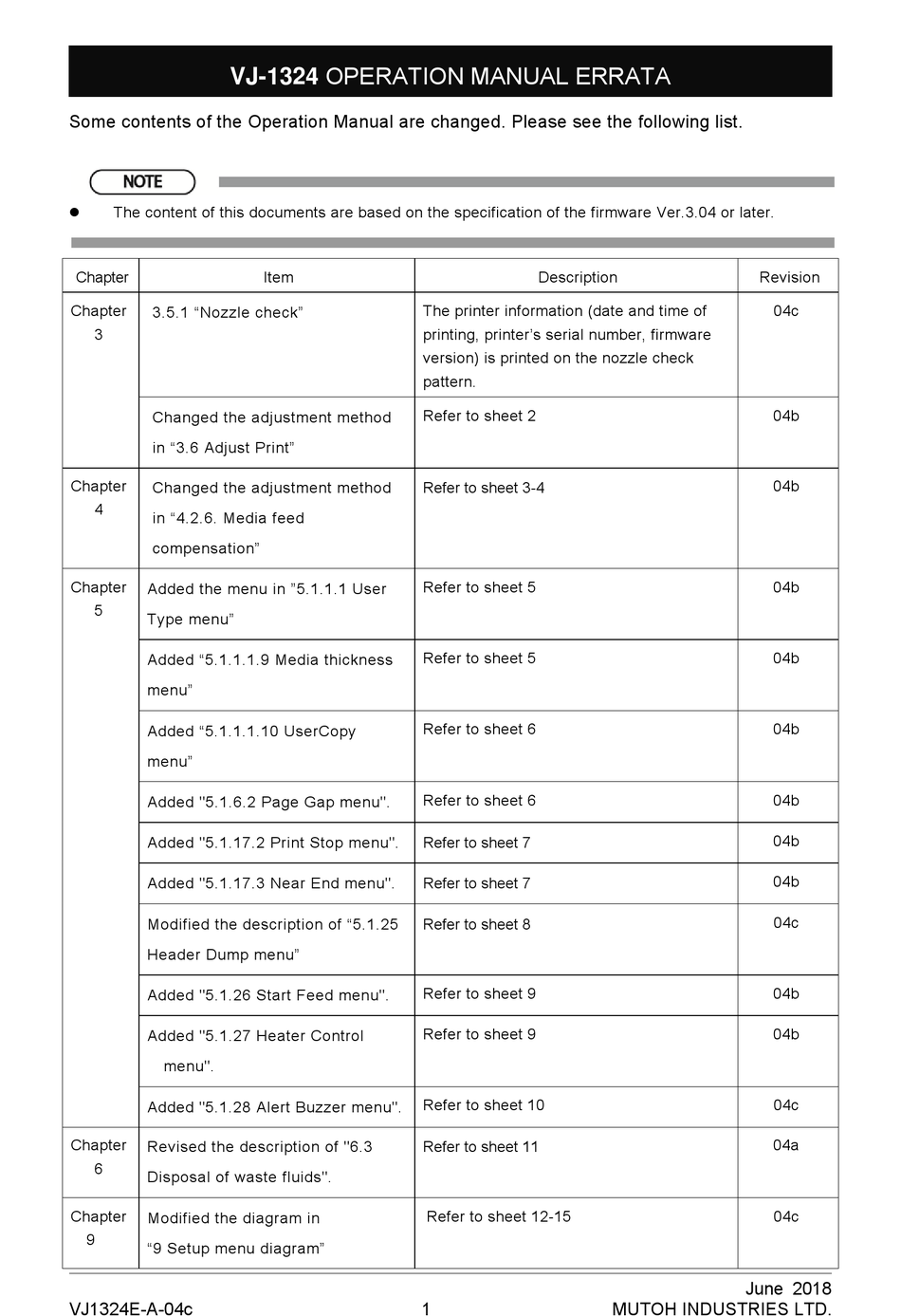

VJ-1324 OPERATION MANUAL ERRATA
Some contents of the Operation Manual are changed. Please see the following list.
The content of this documents are based on the specification of the firmware Ver.3.04 or later.
Chapter
Chapter
3.5.1 "Nozzle check"
3
Changed the adjustment method
in "3.6 Adjust Print"
Chapter
Changed the adjustment method
4
in "4.2.6. Media feed
compensation"
Chapter
Added the menu in "5.1.1.1 User
5
Type menu"
Added "5.1.1.1.9 Media thickness
menu"
Added "5.1.1.1.10 UserCopy
menu"
Added "5.1.6.2 Page Gap menu".
Added "5.1.17.2 Print Stop menu".
Added "5.1.17.3 Near End menu".
Modified the description of "5.1.25
Header Dump menu"
Added "5.1.26 Start Feed menu".
Added "5.1.27 Heater Control
menu".
Added "5.1.28 Alert Buzzer menu".
Chapter
Revised the description of "6.3
6
Disposal of waste fluids".
Chapter
Modified the diagram in
9
"9 Setup menu diagram"
VJ1324E-A-04c
Item
The printer information (date and time of
printing, printer's serial number, firmware
version) is printed on the nozzle check
pattern.
Refer to sheet 2
Refer to sheet 3-4
Refer to sheet 5
Refer to sheet 5
Refer to sheet 6
Refer to sheet 6
Refer to sheet 7
Refer to sheet 7
Refer to sheet 8
Refer to sheet 9
Refer to sheet 9
Refer to sheet 10
Refer to sheet 11
Refer to sheet 12-15
1
Description
MUTOH INDUSTRIES LTD.
Revision
04c
04b
04b
04b
04b
04b
04b
04b
04b
04c
04b
04b
04c
04a
04c
June 2018
