- Page 1 WIRELESS SWITCH (LUXURY VERSION) Combination of iNELS wall-mounted wireless controller and switching device for universal use. It can be used to control electrical appliances, lights, sockets, garage doors, etc.

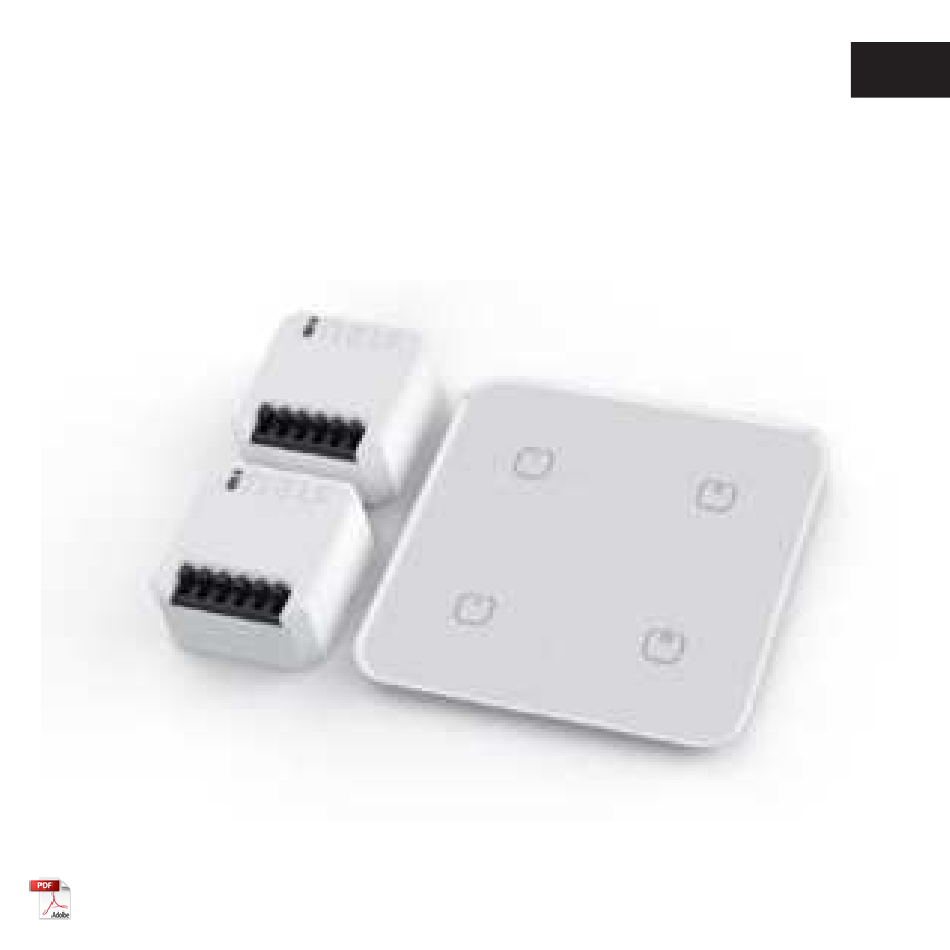

- Page 2 Package Glass touch controller - 2 buttons, SHARP RFGB-20/W, RFGB-20/B Glass touch controller - 4 buttons, SHARP RFGB-40/W, RFGB-40/B Glass touch controller - 2 buttons, ROUND RFGB-220/W, RFGB-220/B Glass touch controller - 4 buttons, ROUND RFGB-240/W, RFGB-240/B Switch unit, 1-channel RFSAI-11B-SL...

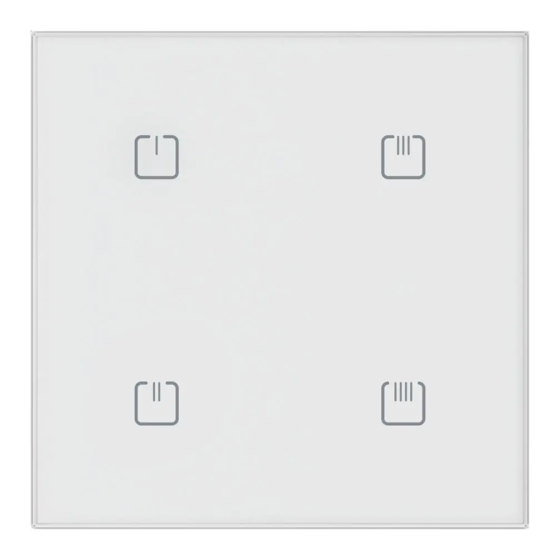

- Page 3 Glass touch controller, Detailed manual SHARP / ROUND - 2,4 buttons RFGB-20/W – Glass touch controller - 2 buttons, WHITE SHARP RFGB-220/W – Glass touch controller - 2 buttons, WHITE ROUND RFGB RFGB-40/W – Glass touch controller - 4 buttons, WHITE SHARP RFGB-240/W –...
- Page 4 Assembly Adhesive Peel off one protective Peel off the second protective If the device is installed on layer on the doublesided layer on the doublesided glass, cover it with adhesive sheets and stick them adhesive sheets and place the a cover foil to the marked places on the control in the prepared place.
- Page 5 Technical parameters RFGB-20/RFGB-220 RFGB-40/RFGB-240 Power voltage: 2x 3 V battery CR 2032 Battery life: about 2 years depending on the frequency of use Transmission indication Red LED Number of capacitive buttons: Communication Protocol: RFIO Frequency: 868,5 MHz Signal transmission method: one-way addressed message Range: in the open up to 200 m...
- Page 6 Switch unit, 1-channel Detailed manual RFSAI-11B-SL Characteristics RFSAI-11B-SL • The switching unit with 1 output channel is used to control appliances, lights, etc. • The BOX design lets you mount it right in an installation box, a ceiling or a controlled appliance cover. •...
- Page 7 Technical parameters RFSAI-11B-SL Supply voltage: 230 V AC Supply voltage frequency: 50-60 Hz 7 VA / cos φ = 0.1 / 0.7 W Power apparent / dissipated: Output: Number of contacts: 1x switching contacts (AgSnO2) Rated current: / switching power 8 A / AC1 / 2000 VA Peak current: 10 A / <3 s...
- Page 8 Compatibility The device can be combined with devices of iNELS RF Control2 with RFIO2 protocol. RFSAI-11B-SL Connection S - external input N - neutral wire L - phase wire V - output The screw-less terminal Solid conductor i - programing button 20~16 AWG - manual controll 0.2 ~1.5 mm...
- Page 9 Radiofrequency signal penetration through various construction materials Range up to 200 m in open space, if the signal is insu cient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO that supports this feature. 60 - 90 % 80 - 95 % 20 - 60 % 0 - 10 %...
- Page 10 Warning Instruction manual is designated for mounting and also for the usage of the device. It is always a part of its pac- king. Installation and connection can be carried out only by a person with adequate professional qualifi cation with understanding this instruction manual and functions of the device, and while observing all valid regulations.
- Page 11 Notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 12 A smart RF gateway is required for control via the iNELS application. CLOUD Backend Smart watch Smart TV Smart RF gateway Designed & Manufactured by: ELKO EP, s.r.o. Palackého 493, 769 01 Holešov, Všetuly, Czech republic, www.elkoep.com, Hotline: +420 800 100 671...
