Assembly Instructions
Item No. MLOBCH108, MLOBCH208, MLOBCH308

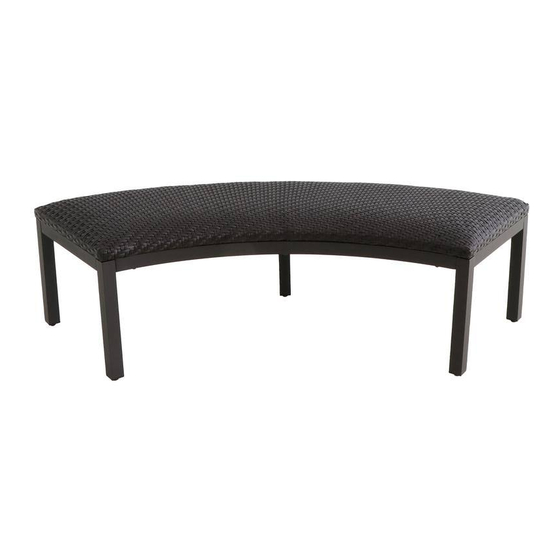

Padded Wicker Bench
Questions, problems, or missing parts?
Before returning to the store, call Customer Service.
1-866-988-3300
8 a.m. - 5 p.m., PST Monday - Friday
Retain this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLOBCH108 and is the answer not in the manual?

Questions and answers

Related Manuals for Royal garden MLOBCH108

Summary of Contents for Royal garden MLOBCH108

  • Page 1 Assembly Instructions Item No. MLOBCH108, MLOBCH208, MLOBCH308 Padded Wicker Bench Questions, problems, or missing parts? Before returning to the store, call Customer Service. 1-866-988-3300 8 a.m. - 5 p.m., PST Monday - Friday Retain this manual for future use.

  • Page 2: Table Of Contents

    Contents Safety Instructions Parts List Assembly Cleaning & Maintenance Warranty IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY. MLOBCH108, MLOBCH208, MLOBCH308...

  • Page 3: Safety Instructions

    WARNING When not in use, secure the product in a cool and covered location. WARNING Do not locate the product near any heat source. WARNING Warning: Weight limit for the chairs is 250lbs (113.39Kg) for each set. MLOBCH108, MLOBCH208, MLOBCH308...

  • Page 4: Parts List

    Parts List Seat frame - 2 M8x45 Bolt & Washer - 8 Middle leg - 2 M6x20 Bolt & Washer - 6 Side leg - 2 Wrench - 1 MLOBCH108, MLOBCH208, MLOBCH308...

  • Page 5: Assembly

    Place the seat frame (A) on a soft surface. Attach the side legs (C) to the seat frame (A) using M8x45 bolt and washer (AA). Do not tighten all bolts at this step. NOTE: Loosely tighten all bolts using the hex wrench (CC). MLOBCH108, MLOBCH208, MLOBCH308...
  • Page 6 Attaching the Middle Leg to the Seat Frame Attach the middle leg (B) to the seat frame (A) using M6x20 bolt and washer (BB). Do not tighten all bolts at this step. NOTE: Loosely tighten all bolts using the hex wrench (CC). MLOBCH108, MLOBCH208, MLOBCH308...
  • Page 7 Requires: E, F Tightening all Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (CC). Turn the bench right side up. Ensure all connections are secure before use. MLOBCH108, MLOBCH208, MLOBCH308...
  • Page 8 Assembly STEP 4 Turn adjustable feet as needed for level seating. MLOBCH108, MLOBCH208, MLOBCH308...

  • Page 9: Cleaning & Maintenance

    • Do not clean with abrasive materials, bleach, or solvents. • Store the benches in a dry, sheltered place when not in use. • Keep the benches away from fire, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind. MLOBCH108, MLOBCH208, MLOBCH308...

  • Page 10: Warranty

    After cleaning cushions tip on end and allow to drip dry. (Never use a commercial or home dryer to tumble dry fabric goods). Do not use bleach or solvents to clean any product! This will void the warranty. MLOBCH108, MLOBCH208, MLOBCH308...
  • Page 11 ARISING OUT OF ANY BREACH OF THIS WARRANTY OR NEGLIGENCE EVEN IF IT HAS BEEN ADVISED ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OTHER THAN THE WARRANTY DESCRIBED OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED. MLOBCH108, MLOBCH208, MLOBCH308...
  • Page 12 Assembly Instructions Product No. MLOFPT108 Model No. FWA19930 42” Tile Top Firepit Questions, problems, or missing parts? Before returning to the store, call Customer Service. 1-866-988-3300 8 a.m. - 5 p.m., PST Monday - Friday Retain this manual for future use.
  • Page 13 Contents Safety Instructions Parts List Assembly Cleaning & Maintenance Warranty IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY. MLOFPT108...

  • Page 14: Safety Instructions

    Safety Instructions BEFORE ASSEMBLY • Remove all parts and hardware from the box. Place all items on a carpeted or scratch-free work surface, as this will prevent damaging parts during assembly. • The shipping box provides an ideal work surface. •...
  • Page 15 Safety Instructions Model# FWA10155 Fire Pit Installer: Leave this manual with appliance. Consumer: Retain this manual for future reference. WARNING HOT! DO NOT TOUCH SEVERE BURNS MAY RESULT. CLOTHING IGNITION MAY RESULT. DANGER Glass and other surfaces are hot during operation and cool-down If you smell gas: •...
  • Page 16 Safety Instructions Installer: Leave these instructions with consumer WARNING Consumer: Keep these instructions for future reference. Do NOT use this appliance if any part of it has This appliance is a Decorative Gas Appliance for OUTDOOR USE ONLY and MUST NOT be used been under water.
  • Page 17 Gas Hookup & Information WARNING Fire Risk Explosion Risk. A. Fuel • Gas build-up during line purge may ignite. Before making gas connections, ensure the • Purge should be performed by qualified appliance being installed is compatible with the technician. available gas type.
  • Page 18 Safety Instructions WARNING *Do not use this fire pit for cooking. *Do not burn any other materials than are supplied with and intended for use in this fire pit. *Do not pour water into fire pit. *The installation of this product must conform with local codes. *Do not use this fire pit if any part has been under water.

  • Page 19: Parts List

    Parts List Table top - 1 M6x20φ24 Bolt & Washer - 3 Table base - 1 Wrench - 1 AAA Battery - 1 Cover - 1 Glass beads - 1 MLOFPT108...

  • Page 20: Assembly

    Assembly STEP 1 Requires: A, B, AA, BB Attach the Table Top (A) onto Table Base (B) by lining up the bolt holes. Insert M6x20 Bolts (AA) through the bolt holes on table base and into table top, loosely tighten the Bolts (AA) by hand. Fully tighten all bolts once they are in place.
  • Page 21 Assembly STEP 2 Requires: C, D 1) Place Glass Beads (D) into the burner. 2) Place Cover (C) onto burner. **KEEP GLASS BEADS away from Pilot Housing Screen.** **DO NOT place cover onto fire pit while hot.** Pilot Housing Burner Tube MLOFPT108...
  • Page 22 Assembly STEP 3 1) Open access door. 2) Place LPG (Liquefied Petroleum Gas) tank into table base. 3) Secure table base to LPG tank by turning locking knob clockwise until it stops. MLOFPT108...
  • Page 23 Assembly STEP 4 Connect Regulator Hose to LPG tank by turning knob clockwise until it stops. MLOFPT108...
  • Page 24 Assembly STEP 5 Battery Assembly. Warning: Battery may contain mercury. Do not put battery into the fire or trash. Please treat battery as hazardous waste and recycle properly. MLOFPT108...
  • Page 25 Assembly STEP 6 Open the LPG tank valve and turn on the control knob. Push and hold the ignitor to create spark with electrode. Turn the control knob to adjust flame to desired height. MLOFPT108...
  • Page 26 Assembly STEP 7 Turn off control knob and close LPG tank valve when not in use. Once the unit cools down, place Cover (C) onto burner. MLOFPT108...
  • Page 27 Safety Instructions FOR LIQUID PROPANE GAS UNITS *Do not attempt to disconnect the gas regulator or any gas fitting while your fire pit is in operation. *A dented or rusty liquid propane cylinder may be hazardous and should be checked by your gas supplier *Do not use a liquid propane cylinder with a damaged valve and any other worn out parts.
  • Page 28 Safety Instructions 12. If igniter does not light burner : a. Wearing heat-resistant gloves, position a long lit match or long lit butane lighter near the pilot housing. Note: b. Push and turn control knob to on • Illustrations reflect typical installations and are c.
  • Page 29 Troubleshooting Symptom Possible Causes Corrective Actions Check the LP (propane) tank. You may be No LP in tank. out of gas. Or check Natural Gas valve at main. Fire won’t light Check the burner orifice for stoppage. Plugged burner orifice. Remove stoppage.
  • Page 30 Maintenance & Service Tasks Inspect Inspect Remove decorative glass and examine burner. Vacuum and wipeout as needed. Use caution when cleaning these areas. Inspect for warping and corrosion. Repair as necessary. Burner Assembly Check the hose connecting the LP gas cylinder to ensure it is not damaged. Replace as necessary.

  • Page 31: Cleaning & Maintenance

    Cleaning & Maintenance • Dust often and use a vacuum cleaner crevice tool to clean between seams. • Keep furniture at least 60 cm / 2 ft from heat sources to avoid damage. • For best results, clean the frame with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.

  • Page 32: Warranty

    Warranty Outdoor Furniture IMPORTANT If you have any problems with this product (missing or damaged parts, assembly issues, etc.), PLEASE DO NOT RETURN TO THE RETAILER/STORE from where you purchased the product. Please call our Toll-Free Customer Service Hotline at: 1-866-988-3300 To expedite any future warranty claims, please retain the instruction sheet, warranty card and receipt for future use.
  • Page 33 Warranty Outdoor Furniture 1-YEAR LIMITED WARRANTY PROGRAM For a period of one (1) year after date of purchase, the Manufacturer will either repair or replace defective components in accordance with this Limited Warranty. This warranty is between the Manufacturer and the original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing original date of purchase and location of purchase.
