PHOTOVOLTAIC MODULES SAFETY
AND INSTALLATION MANUAL Rev. K
VALID IN NORTH AMERICA ONLY

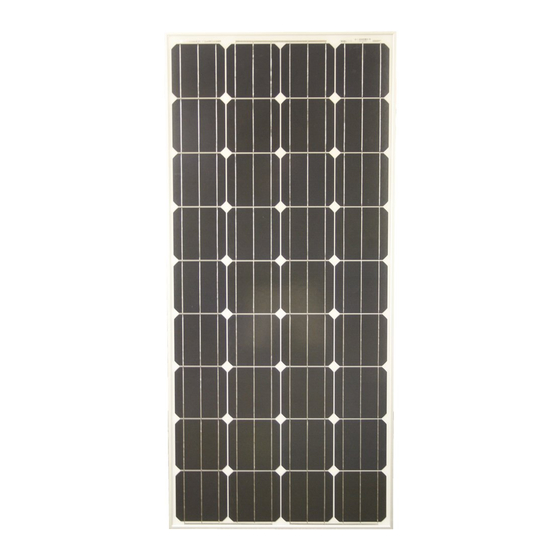

Grape Solar Photovoltaic Modules
Safety and Installation Manual
This document applies to Grape Solar photovoltaic modules with model number CS-S-160-DJ CS-S-165-DJ
CS-S-170-DJ CS-S-175-DJ CS-S-180-DJ, CS-P-200-DJ, CS-P-210-DJ, CS-P-220-DJ, CS-P-230-DJ, CS-P-240-DJ,
CS-P-250-DJ, CS-P-260-DJ, CS-P-270-DJ and CS-P-280-DJ. Carefully read through this manual in its entirety before
installing, operating or servicing the photovoltaic (PV) system. Failure to comply with the instructions described in this
manual may cause bodily injury or damage to property, and invalidate Grape Solar's limited warranty for photovoltaic
modules!
©Copyright 2010, Grape Solar, Inc. All Rights Reserved
1
1305 S. Bertelsen Road Eugene, OR 97402
Valid from September 2010
www.grapesolar.com
Tel: 1-877-264-1014 (toll free), 1-541-349-9000, Fax: 1-541-343-9000
Advertisement
Related Manuals for Grape Solar CS-S-160-DJ
Summary of Contents for Grape Solar CS-S-160-DJ
- Page 1 CS-P-250-DJ, CS-P-260-DJ, CS-P-270-DJ and CS-P-280-DJ. Carefully read through this manual in its entirety before installing, operating or servicing the photovoltaic (PV) system. Failure to comply with the instructions described in this manual may cause bodily injury or damage to property, and invalidate Grape Solar’s limited warranty for photovoltaic modules! ©Copyright 2010, Grape Solar, Inc.
-
Page 2: Table Of Contents
PHOTOVOLTAIC MODULES SAFETY AND INSTALLATION MANUAL Rev. K VALID IN NORTH AMERICA ONLY Table of Contents General Information ....................3 II. Safety Precautions ……………………………………...........4 III. Module Installation ....................7 IV. Maintenance ......................11 V. Disclaimer of Liability ………................12 VI. Appendix ………....................13 1305 S. Bertelsen Road Eugene, OR 97402 Valid from September 2010 www.grapesolar.com Tel: 1-877-264-1014 (toll free), 1-541-349-9000, Fax: 1-541-343-9000... -
Page 3: General Information
10. Follow all safety precautions of other components used in the PV system. 11. Retain this manual for future reference. 12. Grape Solar recommends that the customer makes a note of the serial numbers of modules in order to keep a record of the system. -
Page 4: Safety Precautions
Do not disassemble, modify or adapt the module such as drilling holes in the frame or glass. Do not apply paint or adhesive to the module rear surface. Do not remove any part or labeling installed by Grape Solar from the module. Doing so will void the module warranty. - Page 5 PHOTOVOLTAIC MODULES SAFETY AND INSTALLATION MANUAL Rev. K VALID IN NORTH AMERICA ONLY module. Broken or damaged modules must not be used and must be handled carefully and disposed properly since the broken glass can be sharp and cause bodily injury if not handled with the appropriate protective equipment, and contact with any surface or the frame of the broken module can result in electrical shock.
- Page 6 Do not install modules near equipment or locations where flammable gases can be generated or collected. Grape Solar recommends using components such as earth ground fault circuit breakers, fuses and circuit breakers in the PV system for fire prevention. 1305 S. Bertelsen Road Eugene, OR 97402 Valid from September 2010 www.grapesolar.com...
-
Page 7: Module Installation
MODULE INSTALLATION 1. Installation Site Selection The site for PV module installation shall have environment temperature within Grape Solar’s PV module operating temperature range -40° C to +80° C (-40° F to +176° F). The site shall allow all modules to be exposed to sunlight without obstruction all year round (shadows generated by trees or buildings, even partial shading, on the module array will result in reduction of PV system yield). - Page 8 To prevent untrained personnel from disconnecting the modules when under load, which may cause serious bodily injury or death, all Grape Solar PV modules are equipped with factory-installed wires and Multi-Contact® Type-3 or Type-4 quick connectors with locking safety clip. Once connected, the connector requires the use of a special tool to disconnect module-to-module connections.
- Page 9 PHOTOVOLTAIC MODULES SAFETY AND INSTALLATION MANUAL Rev. K VALID IN NORTH AMERICA ONLY nut (with torque less than 4N•m). Grounding wire should be directly connected with the screw. The rack must also be grounded unless they are mechanically connected by nuts and bolts to the grounded PV modules.
- Page 10 PHOTOVOLTAIC MODULES SAFETY AND INSTALLATION MANUAL Rev. K VALID IN NORTH AMERICA ONLY damage and allows air to circulate behind the module. PV modules can be mounted to the structure by the following methods: 5.9.1 Frame Holes: Secure the module to the structure using the mounting holes. There are 8 mounting holes in the frame of the module and they have been evaluated by UL for mounting.
- Page 11 IV. MAINTANIENCE 1. No routine maintenance is required. 2. Grape Solar recommends that periodic inspection of the PV system for tight electrical and mechanical connection and free of corrosion should be performed. 3. Periodic cleaning of modules is not required, but is recommended, as periodic cleaning can result in better performance of the PV system, especially in regions with low levels of annual precipitation.
-
Page 12: Maintenance
Since the use of this safety and installation manual and the conditions and methods of installation, operation, use and maintenance of the modules are not checked or monitored by Grape Solar Inc. Grape Solar assumes no liability for loss, damage, injury or expense arising through improper use or incorrect installation, operation or maintenance. -
Page 13: Appendix
VALID IN NORTH AMERICA ONLY Appendix Figure-2 Position of Mounting Holes, Model#: CS-S-160-DJ, CS-S-165-DJ, CS-S-170-DJ, CS-S-175-DJ, and CS-S-180-DJ Figure-3 Position of Mounting Holes, Model#: CS-P-200-DJ, CS-P-210-DJ, CS-P-220-DJ, CS-P-230-DJ, and CS-P-240-DJ Figure-4 Position of Mounting Holes, Model#: CS-P-250-DJ, CS-P-260-DJ, CS-P-270-DJ, and CS-P-280-DJ 1305 S.
