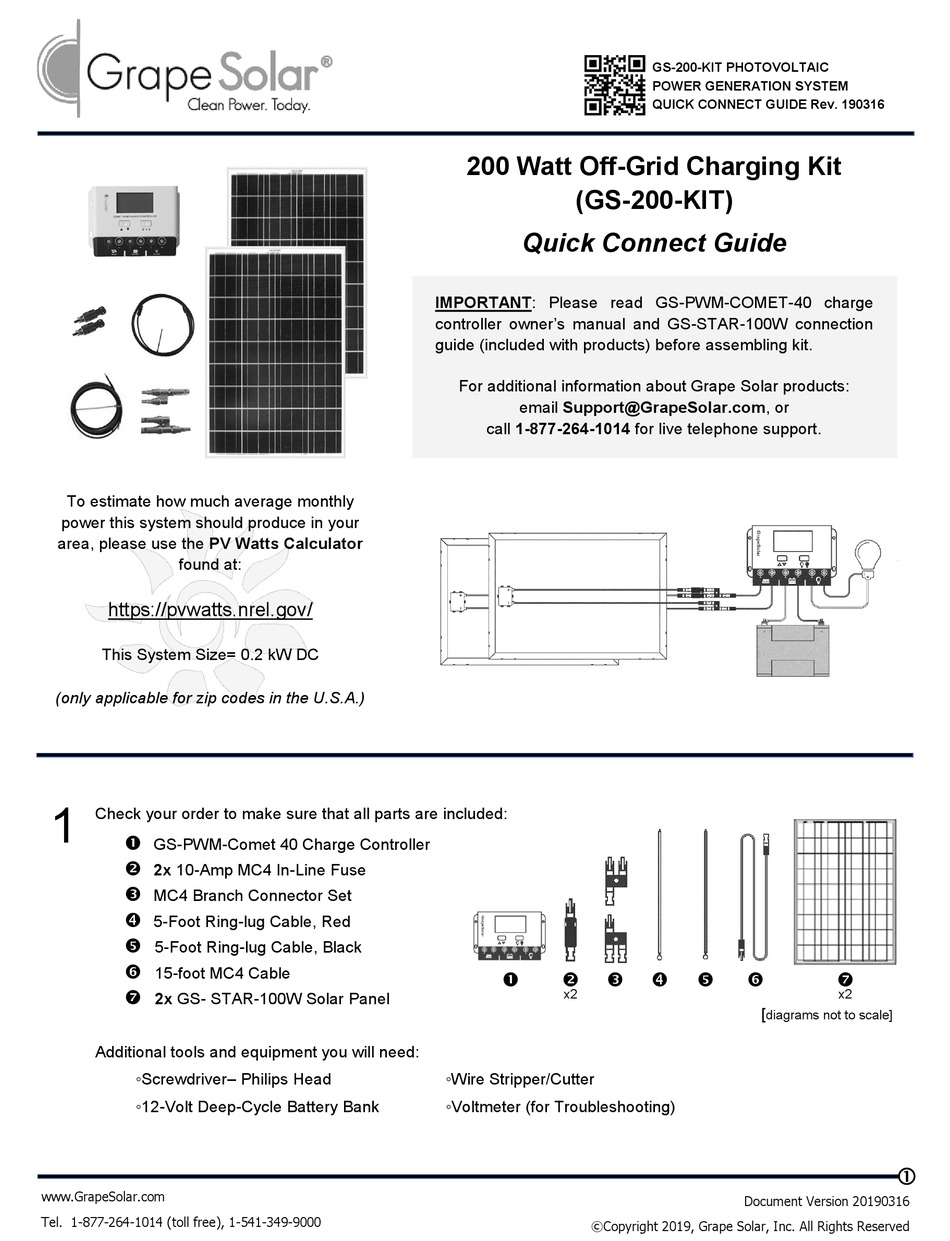

Grape Solar GS-200-KIT Quick Connect Manual

To estimate how much average monthly
power this system should produce in your
area, please use the PV Watts Calculator
found at:
https://pvwatts.nrel.gov/
This System Size= 0.2 kW DC
(only applicable for zip codes in the U.S.A.)
1
Check your order to make sure that all parts are included:


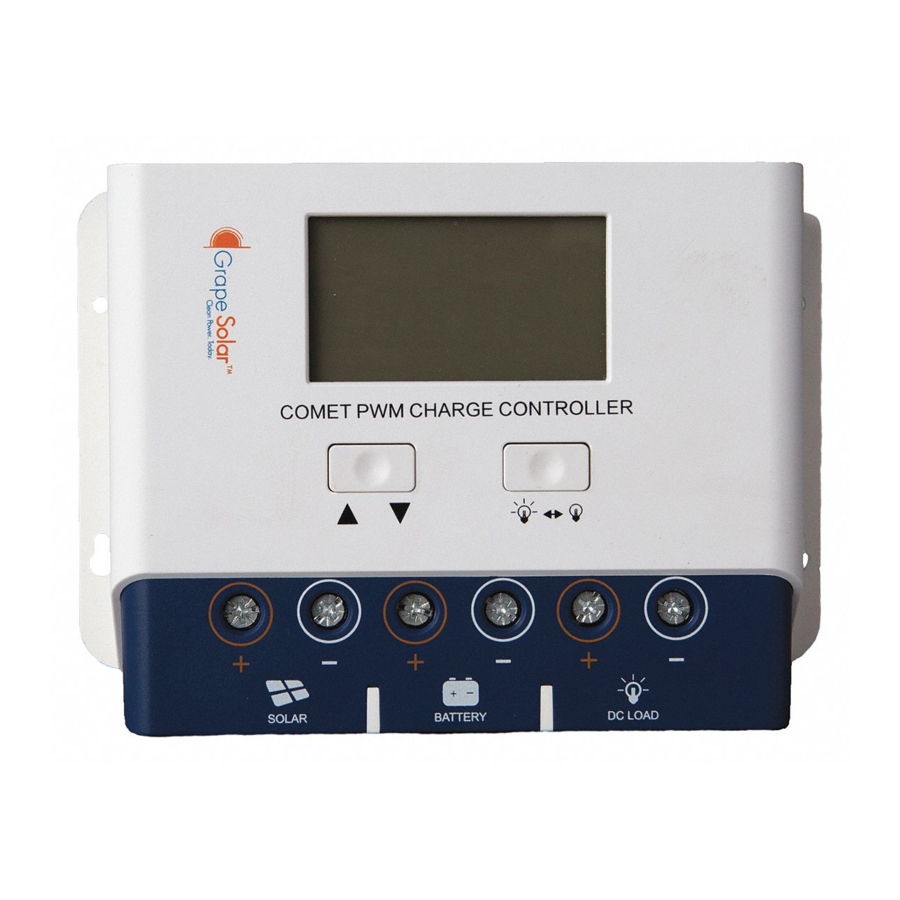

GS-PWM-Comet 40 Charge Controller

2x 10-Amp MC4 In-Line Fuse

MC4 Branch Connector Set

5-Foot Ring-lug Cable, Red

5-Foot Ring-lug Cable, Black

15-foot MC4 Cable

2x GS- STAR-100W Solar Panel
Additional tools and equipment you will need:
◦Screwdriver– Philips Head
◦12-Volt Deep-Cycle Battery Bank
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000
200 Watt Off-Grid Charging Kit
(GS-200-KIT)
Quick Connect Guide
IMPORTANT: Please read GS-PWM-COMET-40 charge
controller owner's manual and GS-STAR-100W connection
guide (included with products) before assembling kit.
For additional information about Grape Solar products:
email Support@GrapeSolar.com, or
call 1-877-264-1014 for live telephone support.

 
x2
◦Wire Stripper/Cutter
◦Voltmeter (for Troubleshooting)
©Copyright 2019, Grape Solar, Inc. All Rights Reserved
GS-200-KIT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 190316

 
[
diagrams not to scale]
Document Version 20190316

x2

