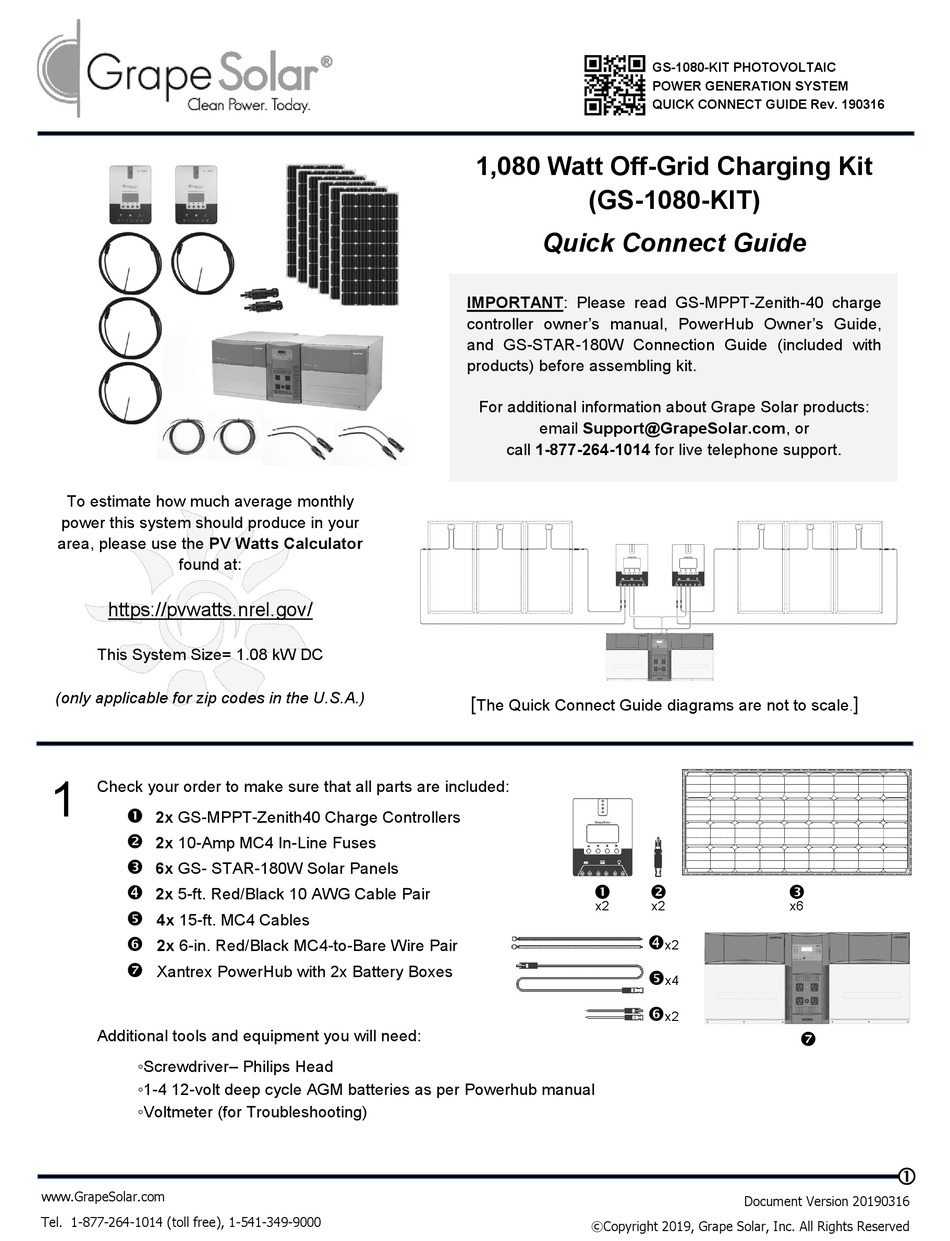

Grape Solar GS-1080-KIT Quick Connect Manual

To estimate how much average monthly
power this system should produce in your
area, please use the PV Watts Calculator
found at:
https://pvwatts.nrel.gov/
This System Size= 1.08 kW DC
(only applicable for zip codes in the U.S.A.)
1

Check your order to make sure that all parts are included:


2x GS-MPPT-Zenith40 Charge Controllers

2x 10-Amp MC4 In-Line Fuses

6x GS- STAR-180W Solar Panels

2x 5-ft. Red/Black 10 AWG Cable Pair

4x 15-ft. MC4 Cables

2x 6-in. Red/Black MC4-to-Bare Wire Pair


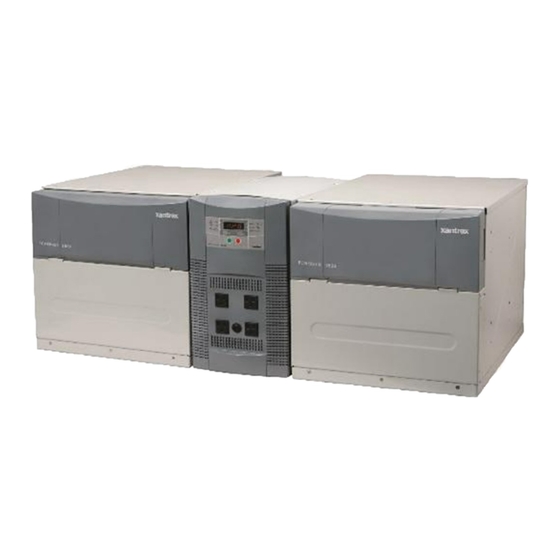

Xantrex PowerHub with 2x Battery Boxes
Additional tools and equipment you will need:
◦Screwdriver– Philips Head
◦1-4 12-volt deep cycle AGM batteries as per Powerhub manual
◦Voltmeter (for Troubleshooting)
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000
1,080 Watt Off-Grid Charging Kit
(GS-1080-KIT)
Quick Connect Guide
IMPORTANT: Please read GS-MPPT-Zenith-40 charge
controller owner's manual, PowerHub Owner's Guide,
and GS-STAR-180W Connection Guide (included with
products) before assembling kit.
For additional information about Grape Solar products:
email Support@GrapeSolar.com, or
call 1-877-264-1014 for live telephone support.
[
The Quick Connect Guide diagrams are not to scale

x2
©Copyright 2019, Grape Solar, Inc. All Rights Reserved
GS-1080-KIT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 190316
 
x2 x6

x2

x4

x2

Document Version 20190316
]
.

