IMPORTANT: Please read the GS-PWM-COMET-40 Owner's Manual and the
Required tools: Philips-head screwdriver
Recommended tools: insulated wrench or other insulated tool for battery connections, digital multimeter or voltmeter
For additional information about this kit visit grapesolar.com/manuals.html, or email support@grapesolar.com
www.grapesolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000, Fax: 1-541-343-9000

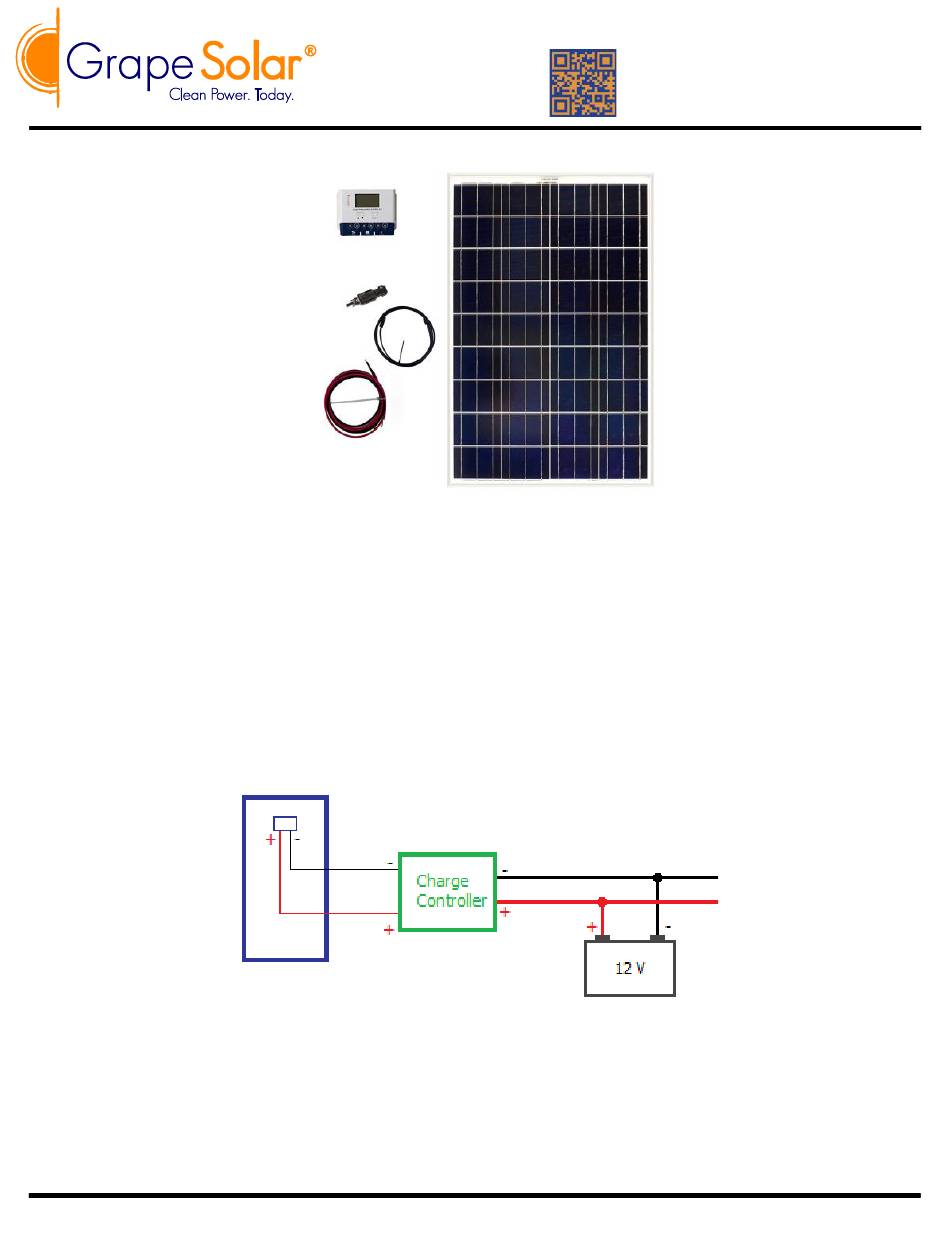

Grape Solar 100 Watt Off Grid Kit
Panel User Guide (included with panels) before assembling this kit.
Basic Wiring Diagram
©Copyright 2016, Grape Solar, Inc. All Rights Reserved
(GS-100-KIT)
Installation Guide
GS-100+KIT EXPANDABLE PHOTOVOLTAIC
POWER GENERATION SYSTEM
CONFIGURATION MANUAL Rev. 180601
Valid from June 2018
1
Advertisement
Table of Contents
Related Manuals for Grape Solar GS-100-KIT
Summary of Contents for Grape Solar GS-100-KIT
- Page 1 Recommended tools: insulated wrench or other insulated tool for battery connections, digital multimeter or voltmeter Basic Wiring Diagram For additional information about this kit visit grapesolar.com/manuals.html, or email support@grapesolar.com ©Copyright 2016, Grape Solar, Inc. All Rights Reserved www.grapesolar.com Valid from June 2018...
- Page 2 GS-100+KIT EXPANDABLE PHOTOVOLTAIC POWER GENERATION SYSTEM CONFIGURATION MANUAL Rev. 180601 Installation Guide Step 1: Check your order to make sure that all parts are included. For the 100 watt kit, this is a GS- STAR-100 solar panel, one 10 amp inline fuse, a 15-foot MC4 cable (cut this in half, the two halves connect the panel leads to the charge controller’s solar inputs), a red/black 5-foot bare- wire-to-ring-lug cable pair (charge controller to battery), and a GS-PWM-COMET-40 charge controller.
- Page 3 GS-100+KIT EXPANDABLE PHOTOVOLTAIC POWER GENERATION SYSTEM CONFIGURATION MANUAL Rev. 180601 Step 3: Mount controller if desired (note that it must be in a NEMA-4 rated enclosure if it is outdoors). Step 4: Use the 5-foot red & black cable pair to connect your positive and negative battery termi- nals to the “Battery Positive”...
- Page 4 Important: Proper fuses or breakers should be used to comply with all local and national codes. Contact Grape Solar for specific recommendations. Important: All batteries used for this system should be identical. Do not mix battery types or sizes. Do not mix old batteries with new batteries.
