Grape Solar GS-400-KIT Quick Connect Manual

Grape Solar GS-400-KIT Quick Connect Manual

400 watt off-grid charging kit

Advertisement

Quick Links

To estimate how much average monthly
power this system should produce in your
area, please use the PV Watts Calculator
found at:
https://pvwatts.nrel.gov/
This System Size= 0.4 kW DC
(only applicable for zip codes in the U.S.A.)
1
Check your order to make sure that all parts are included:
GS-PWM-Comet40 Charge Controller
4x 10-Amp MC4 In-Line Fuse
4x GS- STAR-100W Solar Panel
5-ft. Red/Black 10 AWG Cable Pair
2x 15-ft. MC4 Cable
6-in. Red/Black MC4-to-Bare Wire Pair
5-ft. MC4 Parallel Cable Pair
Additional tools and equipment you will need:
◦Screwdriver– Philips Head
◦12-Volt Deep-Cycle Battery Bank
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000

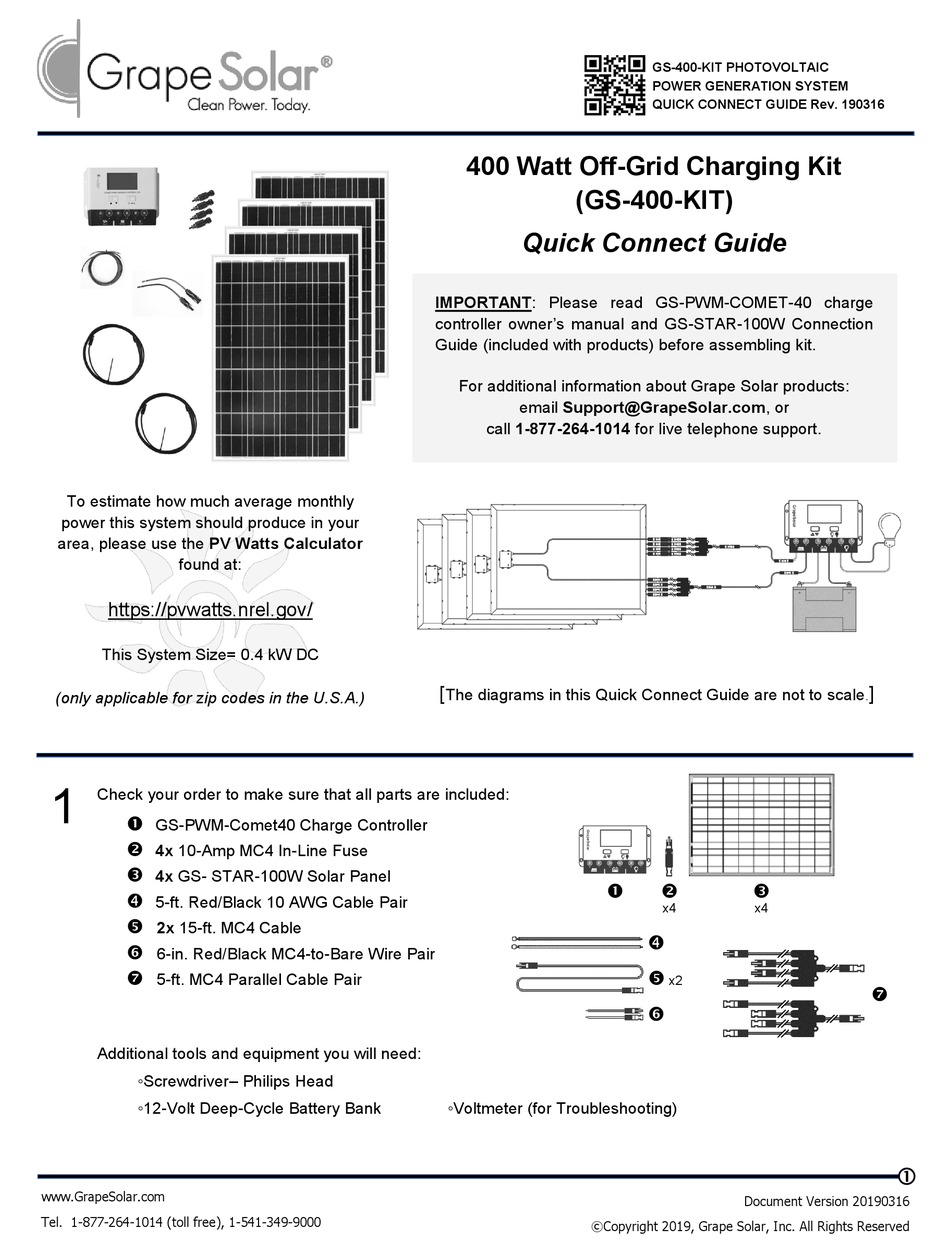

400 Watt Off-Grid Charging Kit
(GS-400-KIT)
Quick Connect Guide
IMPORTANT: Please read GS-PWM-COMET-40 charge
controller owner's manual and GS-STAR-100W Connection
Guide (included with products) before assembling kit.
For additional information about Grape Solar products:
email Support@GrapeSolar.com, or
call 1-877-264-1014 for live telephone support.
[
The diagrams in this Quick Connect Guide are not to scale
◦Voltmeter (for Troubleshooting)
©Copyright 2019, Grape Solar, Inc. All Rights Reserved
GS-400-KIT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 190316
x4
x4
x2
Document Version 20190316
]
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GS-400-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grape Solar GS-400-KIT

  • Page 1 5-ft. MC4 Parallel Cable Pair   Additional tools and equipment you will need: ◦Screwdriver– Philips Head ◦12-Volt Deep-Cycle Battery Bank ◦Voltmeter (for Troubleshooting)  www.GrapeSolar.com Document Version 20190316 Tel. 1-877-264-1014 (toll free), 1-541-349-9000 ©Copyright 2019, Grape Solar, Inc. All Rights Reserved...
  • Page 2 Attach an MC4 In-line fuse  to each of the wire connects to the (+) input and the black wire female inputs. connects to the (-) input.      www.GrapeSolar.com Document Version 20190316 Tel. 1-877-264-1014 (toll free), 1-541-349-9000 ©Copyright 2019, Grape Solar, Inc. All Rights Reserved...
  • Page 3 100%. When the controller is set to “LOAD ON,” the system will provide power through the load control output or through the USB port.  www.GrapeSolar.com Document Version 20190316 Tel. 1-877-264-1014 (toll free), 1-541-349-9000 ©Copyright 2019, Grape Solar, Inc. All Rights Reserved...
  • Page 4 Proper fuses or breakers should be used to comply with all local and national codes. Contact Grape Solar for specific recommendations. Proper fuses or breakers should be used to comply with all local and national codes. Contact Grape Solar for specific recommendations.
