Grape Solar GS-200-KIT Installation Manual

200 watt off grid kit
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

IMPORTANT: Please read the Panel User Guide, charge controller and inverter manuals
REQUIRED TOOLS: wire cutter/stripper, phillips head screwdriver
For additional information about this kit visit grapesolar.com/manuals.html, or email support@grapesolar.com
www.grapesolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000, Fax: 1-541-343-9000
Grape Solar 200 Watt Off Grid Kit (GS-200-KIT)
Installation Guide
before connecting the kit components

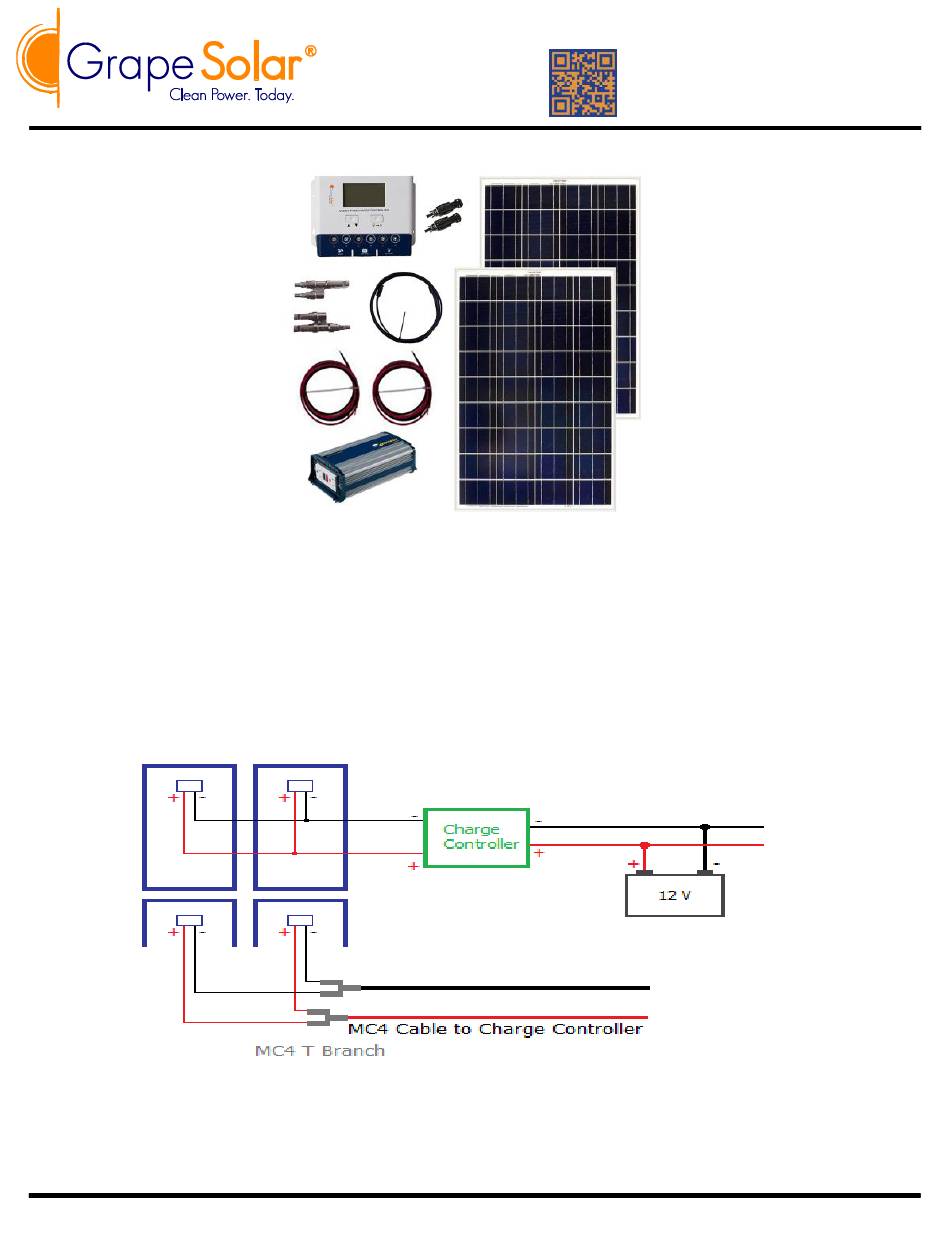

Basic Wiring Diagram
©Copyright 2016, Grape Solar, Inc. All Rights Reserved
GS-200-KIT EXPANDABLE PHOTOVOLTAIC
POWER GENERATION SYSTEM
CONFIGURATION MANUAL Rev. 180601
Valid from June 2018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS-200-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for Grape Solar GS-200-KIT

Summary of Contents for Grape Solar GS-200-KIT

  • Page 1 GS-200-KIT EXPANDABLE PHOTOVOLTAIC POWER GENERATION SYSTEM CONFIGURATION MANUAL Rev. 180601 Grape Solar 200 Watt Off Grid Kit (GS-200-KIT) Installation Guide IMPORTANT: Please read the Panel User Guide, charge controller and inverter manuals before connecting the kit components REQUIRED TOOLS: wire cutter/stripper, phillips head screwdriver Basic Wiring Diagram For additional information about this kit visit grapesolar.com/manuals.html, or email support@grapesolar.com...
  • Page 2 GS-200-KIT EXPANDABLE PHOTOVOLTAIC POWER GENERATION SYSTEM CONFIGURATION MANUAL Rev. 180601 QuickStart Setup Step 1: Check your order to make sure that all parts are included. For the 200 watt kit, this is two 100 watt solar panels, two inline fuses (10A each), a pair of MC4-comparable T-branch connectors, a 15-foot MC4 cable...

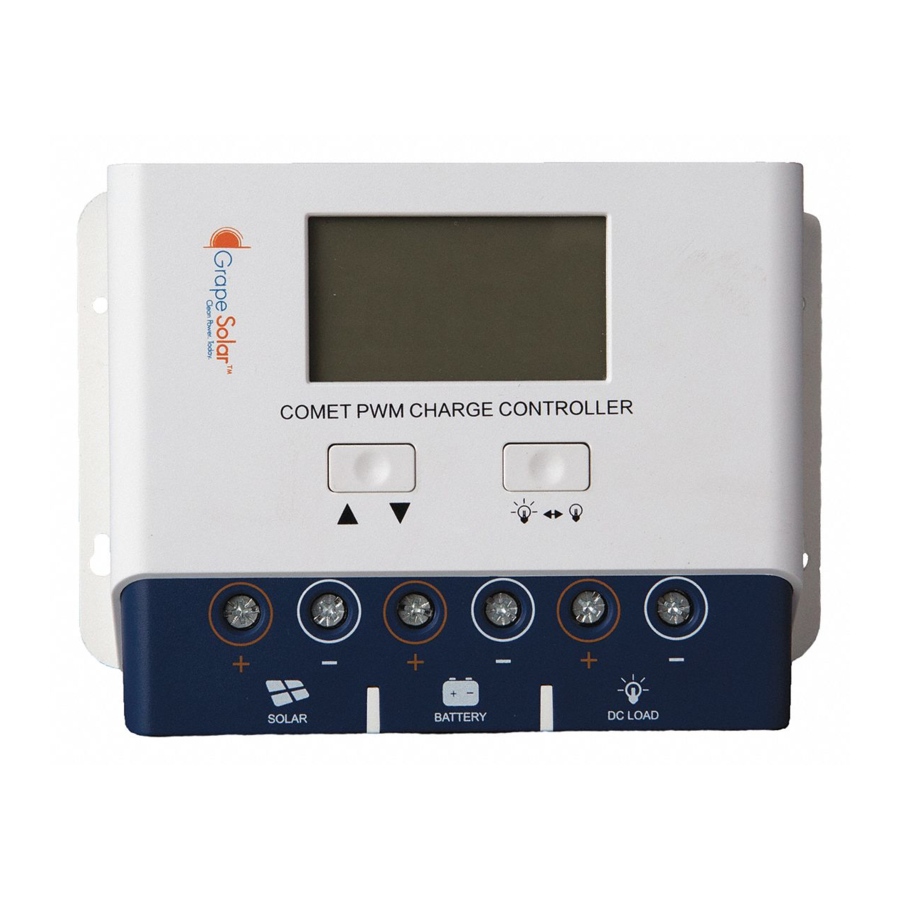

  • Page 3 GS-200-KIT EXPANDABLE PHOTOVOLTAIC POWER GENERATION SYSTEM CONFIGURATION MANUAL Rev. 180601 QuickStart Setup If your battery has sufficient charge (11.5 volts or more), you should now see the LCD display on the controller activate. This means the controller has power (controllers are powered by the battery, not the panels).
  • Page 4 Installers should have adequate knowledge of national and local code to ensure the installa- tion passes inspection by the local electric authority. Important: Proper fuses or breakers should be used to comply with all local and national codes. Contact Grape Solar for specific recommendations.
