Okamura LIVE S Shelf Assembly Manual

Attachment to wall
Components
Wall attachment brackets x2
＊
The type of screws required for attachment to the wall will differ depending on the wall s material. Purchase screws for this separately.
Assembly Instructions
1
Method for attaching to wall
①
Attach the wall attachment brackets using the self-threading
flat head screws M4 by screwing them into the 2 holes on
the top of the upper frame.
② Attach the wall attachment brackets to the wall.
Wall
When attaching perpendicularly to the wall
...
Lastly
Make sure of the following items when assembling is complete.
● Are bolts completely tightened? ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
●
Are there any scratches, dirt, distortions or malfunctions?
●
Are there any packaging materials or trash on the floor?
Make sure that you have all of the necessary parts before assembling.
Self-threading flat head
screw (M4x8L) x4 pieces
Follow the instructions to ensure proper assembly.
Purchase screws
for this separately.
Self-threading
flat head
screw
(M4x8L)
Wall
When attaching parallel to the wall
‥‥‥‥‥‥‥‥‥‥‥‥‥‥
‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥
Shelf Unit
Read this guidebook thoroughly and fully understand its content before assembling the product.

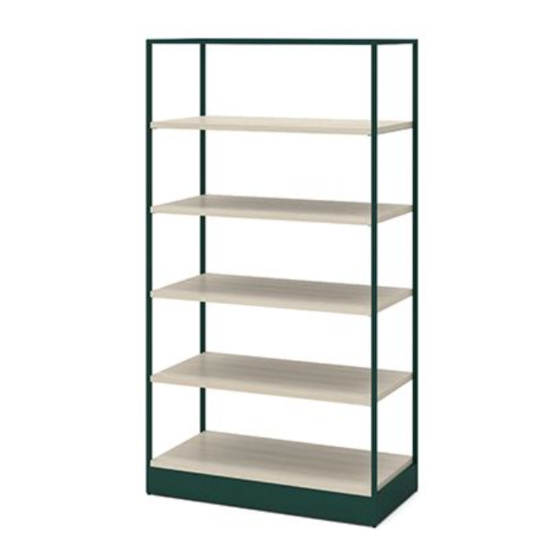

Figure of completed assembly
Wall
attachment
brackets
〈Shelf Unit (2236H)〉
Safety Instructions
Caution
● Secure enough workspace before assembly. Failure to do so may cause injury.
● Assembly must be conducted by two or more people. Failure to do so may cause injury.
● Use specified tools for assembly. Improper assembly, such as not completely tightening screws, may cause damage to
the product or cause the product to overturn resulting in injury.
● Take gloves off when using power tools. Gloves may get caught in tools causing injury.
● Be careful when handling the ends and backs of parts, and with the gaps between parts. Failure to do so may cause injury.
Components
Shelf x5
Self-threading
pan head screw
(M5x10L) x16 pieces
GXC293／2020-10
Shelf [High type]
This guide will enable you to properly assemble and use <Lives Shelf>.
Assembly Preparations
● E nsure that you have all the parts required.
● P repare tools for assembly.
● W hen you inserting screws, lightly tighten
before completely tightening them.
● H andle the product with care.
●
Make sure there is about 300mm of space from the
ceiling to assemble the product from above
Tools
Spanner
(13mm)
(Make sure to follow these instructions)
This indicates that improper handling may cause injury or property damage.
C aution
Make sure that you have all of the necessary parts before assembling.
Upper frame x1
Side frame x2 Baseboard x2
Ultra low Hexagonal socket Hexagonal socket
head screw head cap bolt
(M6x15L) x16 pieces (M6x15L) x4 pieces (M8x20L) x4 pieces
Assembly Guide
Hexagon Phillips-head Electric drill
wrench screw driver
(width across
flats 4mm) Stepladder
Z bracket x4 Extension frame x4 Connector
bracket x4
Ultra low head
screw (M6x15L)
Bracket x2
x4 pieces
Special screw Hexagonal socket
head cap bolt (M6x12L) head cap bolt
x8 pieces (M8x16L) x2 pieces
