Seaside Casual DEX 140 Assembly Instructions

Seating armless/left arm/right arm/club chair

Advertisement

Quick Links

DEX Seating
(140 Armless)
(141 Left Arm)
(142 Right Arm)
(143 Club Chair)
1
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.

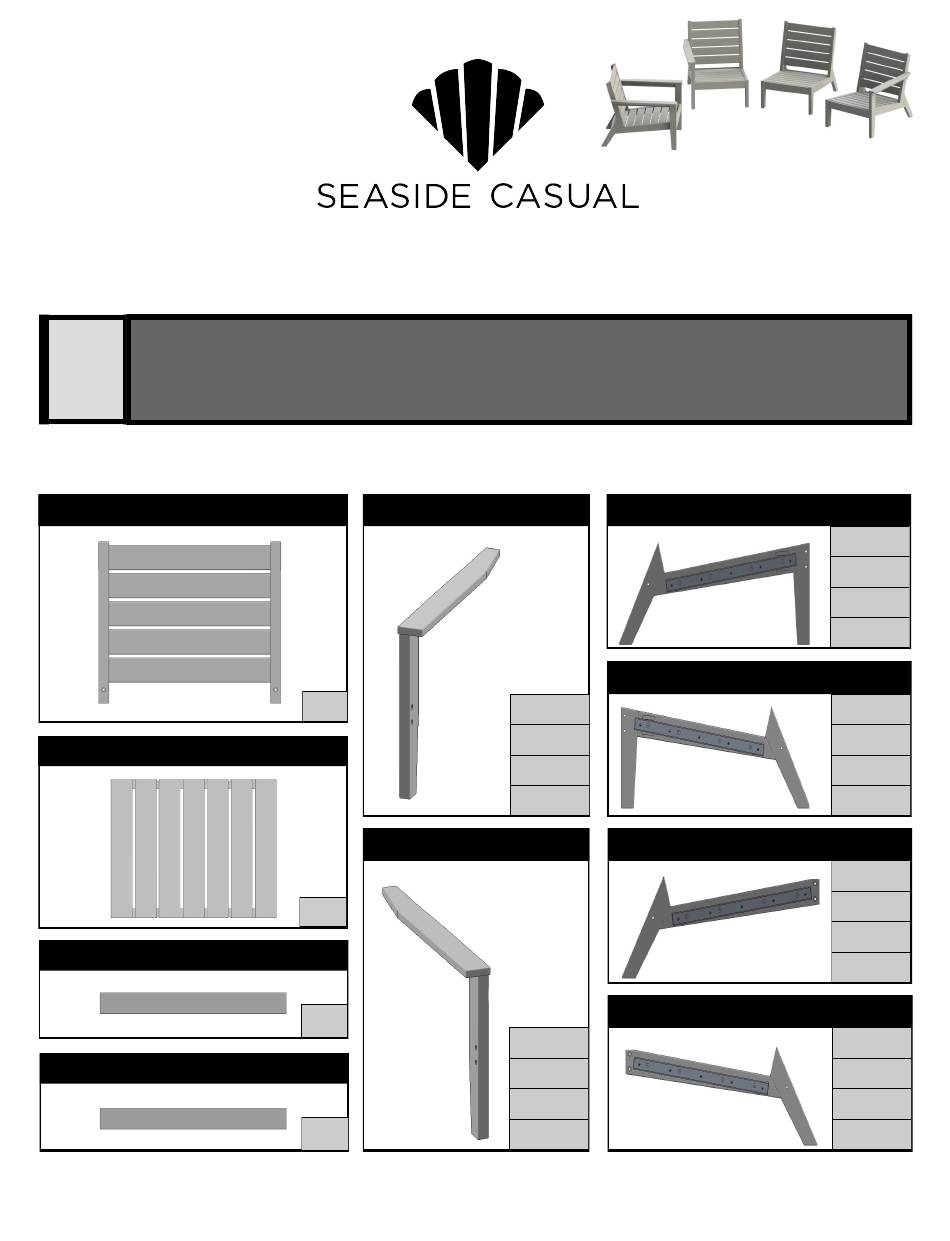

Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.

Tools Required:

Back Assembly
Seat Assembly
Front Apron
Rear Apron
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench (included); #2 Phillips Head Screwdriver;
Rubber Mallet
Left Front Leg Assembly
x 1
Right Front Leg Assembly
x 1
x 1
x 1
Left Armless Side Assembly
Right Armless Side Assembly
140 x 0
141 x 1
142 x 0
143 x 1
Left Armed Side Assembly
Right Armed Side Assembly
140 x 0
141 x 0
142 x 1
143 x 1
DEX Collection 140, 141, 142, 143 Rev A
140 x 1
141 x 0
142 x 1
143 x 0
140 x 1
141 x 1
142 x 0
143 x 0
140 x 0
141 x 1
142 x 0
143 x 1
140 x 0
141 x 0
142 x 1
143 x 1
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEX 140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seaside Casual DEX 140

  • Page 1 143 x 1 143 x 1 WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114 DEX Collection 140, 141, 142, 143 Rev A Page 1 Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com...
  • Page 2 Parts List Continued: 4mm Allen Wrench 1-3/4” Phillips Head Screw Actual Size Actual Size x 10 Part Code: 316-8X1-3/4PFDS Part Code: 4MMALLEN 50mm Hex Lag 3/4” Phillips Pan Head Screw 5/8” tap® Actual Size Actual Size x 12 x 10 x 10 Part Code: 316-8X3/4PPDS...
  • Page 3 ATTACH BACK ASSEMBLY Align Back Assembly as shown. Secure using (4) 50mm Hex Lags thru counter-bored holes in Side Aprons thru pilot holes in Back. And thru counter-bores in Back Assembly into pilot holes in Rear Legs. Plug Holes in Back with 5/8” taps®. ATTACH SEAT ASSEMBLY Secure Seat Assembly using (8) 1-3/4”...

This manual is also suitable for:

Dex 141Dex 142Dex 143
