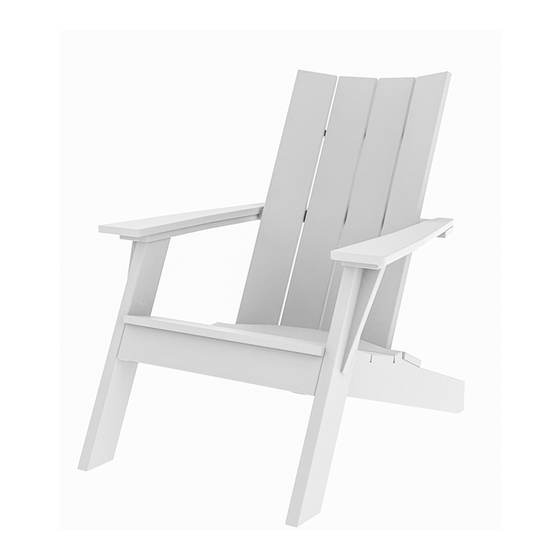

MAD Adirondack Chair
(280)
1
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.
Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.
Tools Required:
Back Assembly
Front Leg Assemblies
50mm Connector Bolt
Actual Size
Part Code: 316-1/4-20-50B
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench (included); #2 Phillips Head Screwdriver;
#3 Phillips Head Screwdriver.
Right & Left Arm Assemblies
x 1
1-3/4" Phillips Head Screw
x 8
x 1
x 1
Actual Size
Part Code: 316-8X1-3/4PFDS
Seat Assembly
4mm Allen Wrench
Actual Size
Part Code: 4MMALLEN
1" Phillips Pan Head Screw
Actual Size
x 6
Part Code:
316-1/4-20-1PPMS
x 1
x 1
x 4
Page 1
REV A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seaside Casual MAD Adirondack Chair 280
Summary of Contents for Seaside Casual MAD Adirondack Chair 280
- Page 1 Actual Size Actual Size Part Code: 316-1/4-20-50B Part Code: 316-8X1-3/4PFDS Part Code: 316-1/4-20-1PPMS WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114 Page 1 Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com REV A...
- Page 2 ATTACH LEGS TO SEAT ATTACH SEAT APRON TO ASSEMBLY LEGS Attach front apron of Seat Assembly to Align Front Leg Assemblies with Seat Front Legs with (2) 1-3/4” Phillips Head Assembly. Secure using (8) 50 mm Con- Screws as shown using a #2 Phillips necter Bolts thru threaded inserts in head screwdriver.
