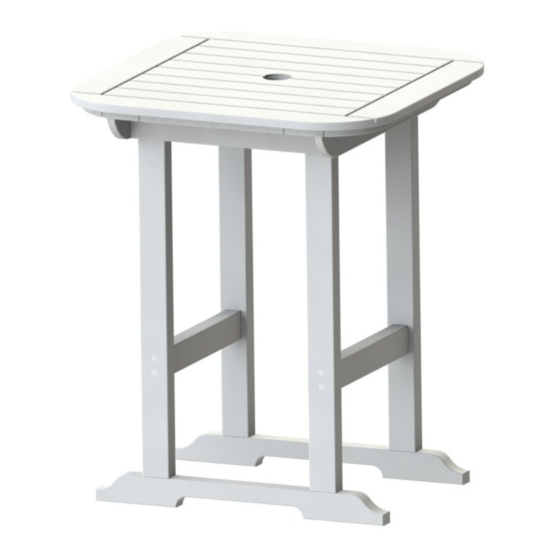

Portsmouth 30" Table
(Dining 055)
(Balcony 080)
(Bar 057)
1
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.
Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.
Tools Required:
Table Top Assembly
Part Code: 4MMALLEN
Part Code: 316-1/4-10-80HL
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench (included); #2 Phillips Head Screwdriver;
Rubber Mallet
Leg Assembly
x 1
4mm Allen Wrench
Actual Size
80mm Hex Lag
Actual Size
Dining and Balcony
x 16
x 2
x 1
Dining and Balcony
1-1/4" Phillips Head Screw
Bar Height
x 24
Part Code: 316-8X1-1/4PFDS
Long Apron Assembly
Short Apron
Leg Stretcher
x 2
Bar Height
5/8" Bung
Actual Size
Actual Size
x 48
x 2
x 2
x 4
x 16
Page 1
