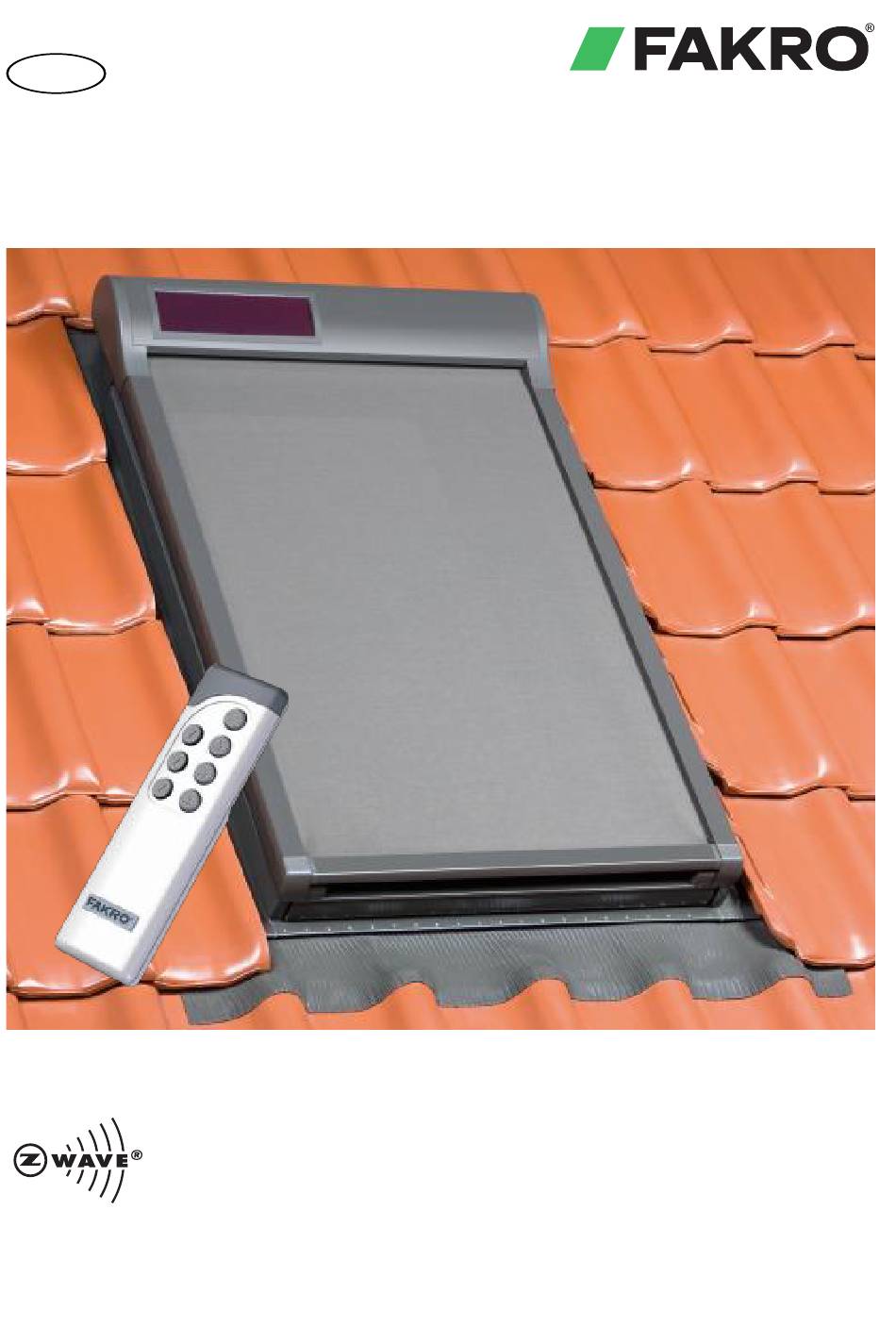

- Page 1 User manual AMZ Z-Wave Solar Awning Blind Read the instruction below carefully before proceeding to device usage www.FAKRO.com...
-
Page 2: Table Of Contents
Additional informations ...........................11 Cooperation of device from different manufacturers in Z-Wave network …........11 Adding the AMZ awning to the network operate by the controller of other manufacturer ....11 Special function – ALL ON, ALL OFF …..................11 Manual operating …........................11 Remote control ….............................1 2... -
Page 3: Important Informations
• The awning blind should be used according to its intended design. • The FAKRO Company shall not be responsible for any consequences being the result of improper awning blind use. • Any activities relating to cleaning, adjustment or dismantling should be preceded with disconnecting the power supply. -
Page 4: Characteristics Of The Awning Blind

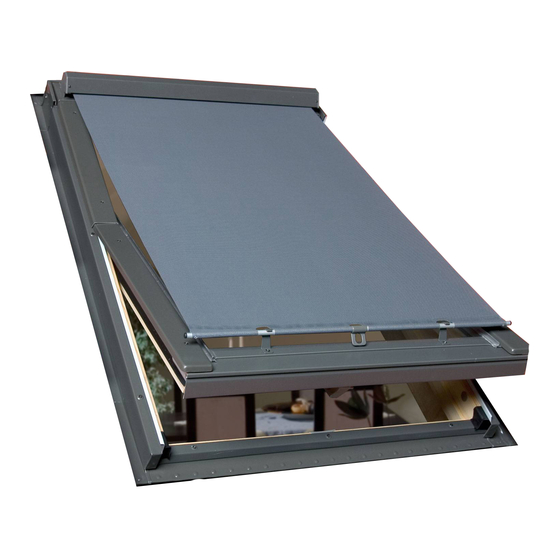

To be able to control the device, it is necessary to install it following the picture installation instructions included in the product package. Below there is presented a general view of the AMZ Z-Wave Solar awning blind with the description of the available buttons and signalling. - Page 5 Available programming and manual operating buttons (up-down arrow) and signalling are on the right side of the awning blind guide. ZWMS controller terminals of the AMZ Z-Wave Solar awning blind are under right cover of the awning blind – see the picture below.
-
Page 6: Characteristics Of The Remote
Characteristics of the remote Note ZWP SA4 is a remote intended to control the AMZ Z-Wave Solar awning blind. Using other controllers is possible but it can cause faster wearing off the batteries of these controllers due to the using awakening function which extends required time of the controller activity. -
Page 7: Device Programming
Device programming NOTE ZWP SA4 The awning blind is factory programmed for controller 0.5s. on channel 1 . In case of need for controller replacement, change of configuration or programming additional device, it is necessary to follow recommendations presented below. Before proceeding to programming check whether the device is not already a part of another network. -
Page 8: Assigning The Device To The Operating Buttons Of The Controller - Associate Function
Device programming Assigning the device to the operating buttons of the controller – ASSOCIATE function. Please find below exemplary procedure of adding the device to the operating buttons of the controller (ASSOCIATE FUNCTION): 2 3 4 In order to control the device (the awning blind): 1 . -
Page 9: Removing The Device From The Operating Buttons - Delete Function
Device programming Removing the device from the operating buttons – DELETE function. In some cases (change of place of installation, replacement of damaged equipment), it is necessary to remove the device from the operating buttons (DELETE) as well as from the network (EXCLUDE) to prevent errors when sending commands (to non-existent devices) and Do not remove excessive drain on the batteries of portable controllers. -
Page 10: Removing The Device From The Network (Controller) - Exclude Function
Device programming Removing the device from the network (controller) – EXCLUDE function. Please find below exemplary procedure of removing the device from the network (controller). IN/EX 1 . Press twice In/Ex button on the controller momentarily. 2. The controller signals awaiting for information about the device being removed from the network –... -
Page 11: Additional Informations
The more devices in the network, the more reliable and more resistant to interference is performance of the devices within the network. Adding the AMZ Solar awning blind to the network operated by the controller of other manufacturer. Note Make sure that the device (awning blind) is not a part of any network. -
Page 12: Remote Control
Remote control Modes of control Note Every command sent from the remote to the awning blind is preceded with the period of awakening the blind. It lasts about 0.3 sec. In practice it reflects in 0.5 sec. delay of the awning blind. The awning blind can be controlled in one of three modes: 1 ) manual –... -
Page 13: Operation Mode And Automatic Control
Operation mode and automatic control Mode of the awning blind operation In automatic control the solar blind utilizes 2 sensors: solar radiation and temperature. Solar radiation sensor is realized by measuring the voltage from photovoltaic panel and has direct influence on the awning blind unrolling and rolling up. -
Page 14: Change Of Sensitivity Level Of The Night Mode
Mode of work and automatic control Change of sensitivity level of the night mode 2 3 4 It is possible to choose between 4 sensitivity levels of the night mode. No. 2 is default mode of the sensitivity level. In order to change sensitivity level of the night mode it is necessary to press SELECT and UP/DOWN buttons. -
Page 15: Additional Functions
Additional functions Checking battery charge level 1 . Choose with the SELECT ( ) button appropriate channel on which the awning blind is programmed, e.g. 1 2. Press the button ( ) and hold for 3 sec. until LED of the channel 1 starts blinking t=3sec. -
Page 16: Technical Parameters
• In case of failure, the device must be submitted for repair with a Warranty Card. Defects revealed within the warranty period will be removed free of charge no longer than 1 4 days after accepting the product for repair. Warranty and post-warranty repairs are performed by the manufacturer i.e. FAKRO PP. Sp. z o.o.. Quality Certificate: Device Model............................
