Chapter 1 Product Overview

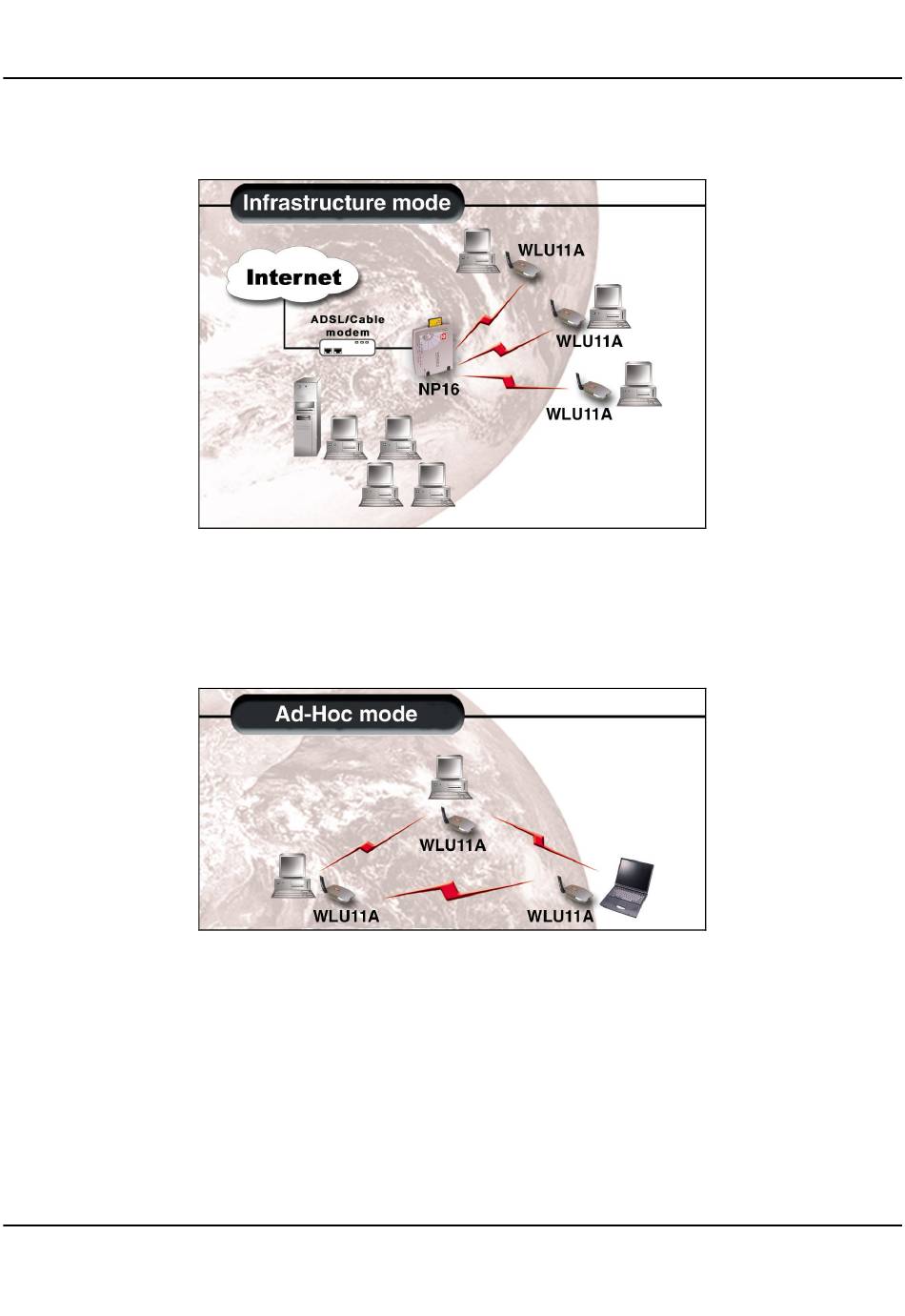

Figure 1.4.2a shows an example of how you can use the WLU11A in an infrastructure
architecture. The number of wireless clients support depends on the access point.
Figure 1.4.2a Infrastructure Architecture Configuration
Figure 1.4.2b shows an example of how a WLU11A can work in an Ad-Hoc
architecture. In an Ad-Hoc architecture, there is no limit to the number of wireless
clients you can connect.
Figure 1.4.2b Ad-Hoc Architecture Configuration
