Kobold DOG-4 Instructions Manual

Electronic option g0/h0/i0/k0/l0 flow rate indicator/totaliser
Hide thumbs Also See for DOG-4:
Table of Contents

Advertisement

Quick Links

Download this manual
DOG-4/-6
electronic option
G0/H0/I0/K0/L0
FLOW RATE INDICATOR/TOTALISER
Signal input flowmeter: pulse
Signal outputs: 4-20 mA ref. flow rate and pulse ref. volume quantity
Options: Modbus communication

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOG-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold DOG-4

Summary of Contents for Kobold DOG-4

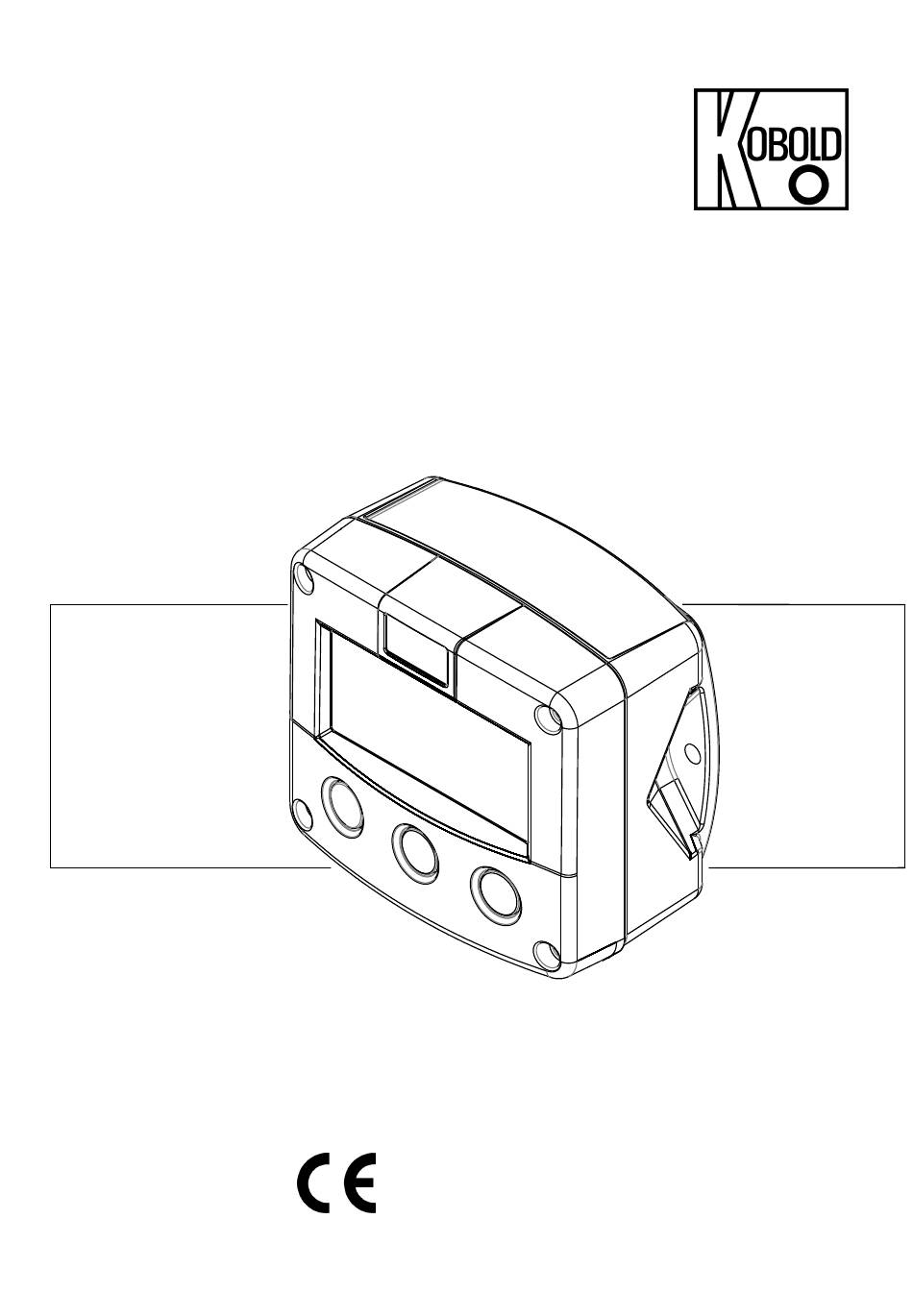

  • Page 1 DOG-4/-6 electronic option G0/H0/I0/K0/L0 FLOW RATE INDICATOR/TOTALISER Signal input flowmeter: pulse Signal outputs: 4-20 mA ref. flow rate and pulse ref. volume quantity Options: Modbus communication...

  • Page 2: Safety Instructions

    electronic option G0/H0/I0/K0/L0 SAFETY INSTRUCTIONS  Any responsibility is lapsed if the instructions and procedures as described in this manual are not followed.  LIFE SUPPORT APPLICATIONS: The flow rate/totaliser is not designed for use in life support appliances, devices, or systems where malfunction of the product can reasonably be expected to result in a personal injury.

  • Page 3: About The Operation Manual

    A "note" indicates actions or procedures which, if not performed correctly, may indirectly affect operation or may lead to an instrument response which is not planned. Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com...

  • Page 4: Table Of Contents

    electronic option G0/H0/I0/K0/L0 CONTENTS MANUAL   Safety instructions 2   Safety rules and precautionary measures ..............................2   About the operation manual ..................................3   Contents manual ....................................4     Introduction ....................................6     Operational ....................................7    ...
  • Page 5 G0/H0/I0/K0/L0 The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. If you need an instruction manual that corresponds to the purchased product version, you can request it from us free of charge by email (info.de@kobold.com) in PDF format, specifying the relevant invoice number and...

  • Page 6: Introduction

    INTRODUCTION 1.1. General notice This operating manual provides assistance and instructions to clients of Kobold Messring GmbH for the installation and configuration of the flow rate/totaliser when used in combination with a type DOG- … oscillation flowmeter. This operating manual is a supplement to existing documents, such as the data sheet and the operating manual for the DOG-…...

  • Page 7: Operational

    electronic option G0/H0/I0/K0/L0 OPERATIONAL 2.1. General  The flow rate/totaliser may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed.  Take careful notice of the "Safety rules, instructions and precautionary measures" in the front of this manual.
  • Page 8 electronic option G0/H0/I0/K0/L0 2.3. OPERATOR INFORMATION AND FUNCTIONS In general, the flow rate/totaliser will always act at Operator level. The information displayed is dependent upon the SETUP-settings. All pulses generated by the connected flowmeter are measured by the flow rate/totaliser in the background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be updated very quickly during a 30 second period, after which it will slow-down again.

  • Page 9: Configuration

    electronic option G0/H0/I0/K0/L0 3. CONFIGURATION 3.1. INTRODUCTION This and the following chapters are exclusively meant for electricians and non-operators. In these, an extensive description of all software settings and hardware connections are provided.  Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility.
  • Page 10 electronic option G0/H0/I0/K0/L0 Matrix structure SETUP-level: SCROLLING THROUGH SETUP-LEVEL Selection of function-group and function: SETUP is divided into several function groups and functions. Each function has a unique number, which is displayed below the word "SETUP" at the bottom of the display.
  • Page 11 electronic option G0/H0/I0/K0/L0 To change or select a value: To change a value, use  to select the digits and  to increase that value. To select a setting, both  and  can be used. If the new value is invalid, the increase sign or decrease-sign will be displayed while you are programming.
  • Page 12 electronic option G0/H0/I0/K0/L0 3.2.2. OVERVIEW FUNCTIONS SETUP LEVEL SETUP FUNCTIONS AND VARIABLES TOTAL   11  UNIT  L ‐ m3 ‐ kg ‐ lb ‐ GAL ‐ USGAL ‐ bbl ‐ no unit   12  DECIMALS  0 ‐ 1 ‐ 2 ‐ 3 (Ref: displayed value)   13  K‐FACTOR:  0.000010 ‐ 9,999,999   14  DECIMALS K‐FACTOR  0 ‐ 6 FLOWRATE  ...

  • Page 13: Total

    electronic option G0/H0/I0/K0/L0 3.2.3. EXPLANATION OF SETUP-FUNCTIONS 1 - TOTAL MEASUREMENT UNIT SETUP - 11 determines the measurement unit for total, accumulated total and pulse output. The following units can be selected: L - m3 - kg - lb. - GAL - USGAL - bbl - _ (no unit). Alteration of the measurement unit will have consequences for operator and SETUP-level values.

  • Page 14: Flow Rate

    electronic option G0/H0/I0/K0/L0 2 – FLOW RATE The settings for total and flow rate are entirely separate. In this way, different units of measurement can be used for each e.g. cubic meters for total and liters for flow rate. The display update time for flow rate is one second or more. Note: these settings also influence the analog output.

  • Page 15: Display

    electronic option G0/H0/I0/K0/L0 3 - DISPLAY FUNCTION The large 17mm digits can be set to display total or flow rate. When "total" is selected, both total and flow rate are displayed simultaneously. When "flow rate" is selected, only flow rate will be displayed with it’s measuring unit while total will be displayed after pressing SELECT.

  • Page 16: Flowmeter

    electronic option G0/H0/I0/K0/L0 5 - FLOWMETER SIGNAL The flow rate/totaliser is able to handle several types of input signal. The type of flowmeter pickup / signal is selected with SETUP 51. Note: The selections "active pulse" offers a detection level of 50% of the supply voltage.

  • Page 17: Linearisation

    electronic option G0/H0/I0/K0/L0 6 - LINEARISATION The linearization function is available to approach the real flow curve better as with the general K-factor (KF0) entered with setup 14 and 24. This to obtain a more accurate flow rate, total and accumulated total as well as the analog and pulse output at any flowmeter frequency.

  • Page 18: Analog Output

    electronic option G0/H0/I0/K0/L0 7 - ANALOG OUTPUT A linear analog 4-20 mA signal is generated according to the flow rate with a 10 bits resolution. The settings for flow rate (SETUP - 2) influence the analog output directly. The relationship between rate and analog output is set with the following functions: DISABLE / ENABLE The analog output can be disabled.

  • Page 19: Analog Output (Continued)

    electronic option G0/H0/I0/K0/L0 7 - ANALOG OUTPUT (CONTINUED) FILTER This function is used to stabilize the analog output signal. The output value is updated every 0.1 second. With the help of this digital filter a more stable but less precise reading can be obtained. The filter principal is based on three input values: the filter level (01-99), the last analog output value and the last average value.

  • Page 20: Pulse Output

    electronic option G0/H0/I0/K0/L0 8 - PULSE OUTPUT One transistor or mechanic relay output is available as scaled pulse output according to the accumulated total. PERIOD TIME The period time determines the time that the transistor or relay will be switched; PULSE OUTPUT in other words the pulse length.

  • Page 21: Communication (Optional)

    electronic option G0/H0/I0/K0/L0 9 - COMMUNICATION (OPTIONAL) The functions described below deal with hardware that is not part of the standard delivery. Programming of these functions does not have any effect if this hardware has not been installed. Consult Appendix C and the Modbus communication protocol description for a detailed explanation. BAUDRATE For external control, the following communication speeds can be selected: 1200 - 2400 - 4800 - 9600 baud...

  • Page 22: Installation

    electronic option G0/H0/I0/K0/L0 INSTALLATION GENERAL DIRECTIONS  Take careful notice of the "Safety rules, instructions and precautionary measures" at the front of this manual. Mounting, electrical installation, start-up and maintenance of this instrument may only be  carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.
  • Page 23 electronic option G0/H0/I0/K0/L0 4.3.1. TERMINAL CONNECTORS The following terminal connectors are available: Fig. 6: Overview terminal connectors for electronic options G0/H0 Terminal PE – 1 – 2 (power supply) I/K: G/H: Terminal 21 – 22: Connection to the measuring sensor Use terminal connectors 21 and 22 to connect the transmitter and the flow computer with the measuring sensor.
  • Page 24 electronic option G0/H0/I0/K0/L0 Terminal 5 – 6 (scaled pulse output according to linearised total) Setup 8 (par. 3.2.3.) determines the pulse output function. The maximum pulse frequency of this output is 60Hz. Max. driving capacity 50mA @ 24V per output. Terminal 7 –...

  • Page 25: Maintenance

    electronic option G0/H0/I0/K0/L0 5. MAINTENANCE 5.1. GENERAL DIRECTIONS  Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ...

  • Page 26: Appendix A: Technical Specification Of Flow Indictaor

    electronic option G0/H0/I0/K0/L0 APPENDIX A: TECHNICAL SPECIFICATION OF FLOW INDICTAOR GENERAL Display Type High intensity reflective numeric and alphanumeric LCD, UV-resistant. Digits Seven 17 mm (0.67") and eleven 8 mm (0.31"). Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs. Operating temperature Operational -25°C…+60°C...
  • Page 27 electronic option G0/H0/I0/K0/L0 INPUTS Flowmeter Coil/sine wave (minimum 20mVp-p or 80mVp-p - sensitivity selectable), NPN/PNP, open collector, reed-switch, Namur, active pulse signals 8 - 12 and 24V. Frequency Minimum 0 Hz - maximum 7 kHz for total and flow rate. Maximum frequency depends on signal type and internal low-pass filter.

  • Page 28: Appendix B: Problem Solving

    electronic option G0/H0/I0/K0/L0 APPENDIX B: PROBLEM SOLVING In this appendix, several problems are included that can occur when the flow rate/totaliser is going to be installed or while it is in operation. Flowmeter does not generate pulses: Check:  Signal selection SETUP - 51, ...

  • Page 29: Appendix C: Communication Variables

    electronic option G0/H0/I0/K0/L0 APPENDIX C: COMMUNICATION VARIABLES Remarks:  Below, an overview of the flow rate/totaliser specific variables; other common variables are described in the standard table. All numbers are decimal numbers, unless otherwise noted.  The following variables of the standard table (var00-var30) are not valid for this product and will be ...
  • Page 30 electronic option G0/H0/I0/K0/L0 DESCRIPTION BYTES VALUE REMARKS DISPLAY display function 0=total (40h) 1=flow rate set flow rate monitor 1 0=operator level (44h) 1=SETUP level POWERMANAGEMENT LCD update time 0=fast (50h) 1=1sec 2=3sec 3=15sec 4=30sec 5=off power-mode battery 1 0=operational (51h) 1=shelf FLOWMETER flowmeter signal...
  • Page 31 electronic option G0/H0/I0/K0/L0 DESCRIPTION BYTES VALUE REMARKS OTHERS pass code xxxx read only! (A8h) tagnumber 0..9999999 Other vars: see standard table OTHER flow rate/totaliser VARIABLES FOR COMMUNICATION TOTAL - variable number 566 (236h) – 6 bytes Read total: The value of total read using RS communications might differ from the value that appears on the display.

  • Page 32: Appendix D: Factory Settings For Flow Indicator

    electronic option G0/H0/I0/K0/L0 APPENDIX D: FACTORY SETTINGS FOR FLOW INDICATOR MENU FUNCTIONS FACTORY DEFAULT SETTINGS SETTINGS TOTAL UNIT DECIMALS 111111,1 K-FACTOR (enter with one decimal, according to 25) DECIMALS K-FACTOR FLOWRATE UNIT TIME UNIT DECIMALS 22222,22 K-FACTOR (enter with one decimal, according to 25) DECIMALS K-FACTOR CALCULATION CUT-OFF...
  • Page 33 electronic option G0/H0/I0/K0/L0 ANALOG OUTPUT enable 4mA / 0V 0000000 Full scale flowrate value 20mA / 10V (Units dependent upon SETUP 21 and 22) CUT-OFF CALIBRATE LOW 0296 ± 1 CALIBRATE HIGH 5395 ± 1 FILTER IMPULSE PERIOD TIME 002 (pulse width 15.6ms) IMPULSE PER 000001,0 (i.e.

  • Page 34: Eu Declaration Of Conformance

    G0/H0/I0/K0/L0 6. EU DECLARATION OF CONFORMANCE We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: DOG-… electronic option G0/H0/I0/K0/L0 (Flow controller) to which this declaration relates is in conformity with the standards noted...
