- Page 1 compass ® MTT Training Benches User Manual International Back Trainer Crunch Bench Adjustable Incline and Flat Bench Flat Bench compass MTT training benches ®...
- Page 2 In this user manual you will find information on the following products: compass® MTT International Back Trainer compass® MTT Crunch Bench compass® MTT Adjustable Incline and Flat compass® MTT Flat Bench Bench...
-
Page 3: Foreword
Dear Customer, We would like to thank you for the confidence you have placed in us by purchasing products from proxomed Medizintechnik GmbH and for sharing and supporting our vision of a healthy society. We are pleased that our devices are in therapeutic use with you and support many patients in their rehabilitation. -
Page 4: Table Of Contents
Table of Contents Foreword ............................ 3 Legend ............................6 General symbolism ............................... 6 Safety instructions ................................. 6 Safety instructions ........................7 Marking on the device ..............................7 Applied symbols for transport ..........................8 Liability notice ................................. 9 Intended use ..................................9 Indications and contraindications ........................ - Page 5 Application ................................22 Settings ................................. 23 compass MTT Flat Bench ............................. 24 ® Intended use ............................... 24 Application ................................24 Settings ................................. 24 Maintenance, cleaning, servicing, disposal ................25 Service ............................26 Technical data.......................... 27 Warranty ..........................29...
-
Page 6: Legend
Legend This user manual is part of the product and must be kept safe and accessible throughout the product's service life. In the event of a change of ownership, the user manual must be handed over to the new owner. If supplements to these instructions for use are supplied, these must be added to the document. -
Page 7: Safety Instructions
ATTENTION ATTENTION Indicates a potentially harmful situation. • If the situation is not avoided, the device may be • damaged. Safety instructions Marking on the device Figure Description Reference Follow the instructions for use EN ISO 15223-1 Manufacturer, name, address, year EN ISO 15223-1 manufacture... -
Page 8: Applied Symbols For Transport
Nameplate Manufacturer's identification, address, year of EU 2017/ 745 manufacture, device designation, serial number, UDI number and device-specific information Follow instructions ISO 15223-1 Is additionally attached to devices with electrical components Applied symbols for transport Figure Description Reference TOP - top here DO NOT stack Protect from moisture Temperature range... -
Page 9: Liability Notice
Humidity ISO 15223-1 Liability notice The training benches are built according to the current state of the art and the recognized technical safety rules. Nevertheless, in case of inadmissible misuse, danger for people and equipment can arise. No modifications may be made to the device. The installation of additional components or the removal of components is not permitted. - Page 10 Position on the device Muscular stabilization compass MTT International Back Trainer ® Standing and lateral to the device Lateral flexion Standing and looking forward Dorsal musculature compass MTT Crunch Bench ® Supine Ventral musculature compass MTT Adjustable Incline and Flat Bench ®...
-
Page 11: Indications And Contraindications
Clinical benefit Compass MTT training benches support physiotherapeutic interventions. The clinical benefit for the patient lies in the complementary use of the equipment and the resulting improved muscle stabilization. -
Page 12: Safety Regulations
These symptoms should disappear spontaneously after a few days. 3.11 Incident reporting Please report any clinical events occurring during and immediately after use of the device directly to the manufacturer at the following address: vigilance@proxomed.com... -
Page 13: Storage, Transport And Installation
The devices are usually delivered completely assembled. In rare cases, it may be necessary to ship the devices partially disassembled for transport reasons. In these cases, please use the corresponding assembly instructions at the service service@proxomed.com and follow the instructions given there! ●... - Page 14 In general, it is important to ensure that the distance of at least 1 m Movement ● (starting from the movement dimension) to other devices is maintained dimension during installation. However, the safety clearances may overlap. Area up to next device Active Training area...
-
Page 15: Commissioning
Commissioning Check the technical condition of the training device before each use. Locking bolt on function, the locking button must engage automatically. Protective cladding - present or damaged. Screw connections - check for tight connection. Welded joints - visual inspection. ... -
Page 16: Training Tips
Training tips The device must be adjusted to the ergonomic conditions of the user before the first training session. The adjustment of the training device for the user is the responsibility of the qualified personnel. CAUTION Improper or excessive training can lead to health problems. To avoid injuries and to make the training more effective, a general and special warm-up •... - Page 17 During fast-impact exercises, the weight can be moved explosively. Controlled movement must • be ensured, especially with this training method, so that incorrect loads and injuries are avoided. Usually concentric and eccentric ways of working the muscles are combined. Different training methods are used. If training is done according to the repetition method, •...
-
Page 18: Device Descriptions

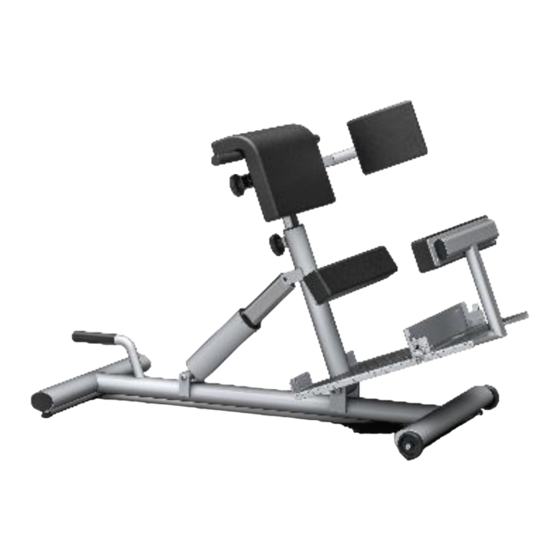

Device descriptions ® compass MTT International Back Trainer Cushion Upholstery support Inclination Intended use Compass MTT International Back Trainer is designed for muscular stabilization of the back muscles. In ® the lateral position of the user, the compass MTT International Back Trainer is designed for muscular ®... -
Page 19: Settings
Settings Inclination 90° - 125° 10 á 3,5° Cushion height 88,5 - 133 cm 19 á 2,5 cm Upholstery support 24 cm Stepless... -
Page 20: Compass ® Mtt Crunch Bench
compass ® MTT Crunch Bench Leg rest Bench Intended use Compass Crunch Bench designed muscular stabilization ventral ® musculature/abdominal musculature. Application It is trained in the supine position, the legs are fixed in a 90° position on the lower leg pad. The leg length can be individually adjusted by adjusting the lower leg pad by means of locking bolts on the back of the device. -
Page 21: Settings
Settings Bench inclination 167° - 193° 3 á 13° Leg rest 32 cm - 54 cm 8 á 2,5 cm... -
Page 22: Compass ® Mtt Adjustable Incline And Flat Bench
compass ® MTT Adjustable Incline and Flat Bench Backrest Seat Intended use Compass ® MTT Adjustable Incline and Flat Bench is designed for muscular stabilization of the anterior trunk muscles and is designed in combination with pulleys for muscular stabilization of the shoulder- arm muscles. -
Page 23: Settings
Settings Backrest 0° - 90° 9 á 10° Seat 180° - 140° 4 à 10 °... -
Page 24: Compass ® Mtt Flat Bench
compass ® MTT Flat Bench Bench Intended use Compass MTT Flat Bench is designed for muscular stabilization of extensor muscles of extremities. ® Application The positioning during training on the training benches depends on the exercise to be completed. However, this takes place exclusively in a lying or sitting position. Training with free weights may only take place after sufficient instruction by a trainer. -
Page 25: Maintenance, Cleaning, Servicing, Disposal
The authorized service will help you quickly and competently. You will find the "Repair order/fault report" form in the enclosed medical device booklet. Create an error message and send it by e-mail (service@proxomed.com) or use our servicehelper form (see Chap. 9 Service ). We are happy to help you. -
Page 26: Service
If our devices do not work properly, our customer support team will help you quickly and easily. steps directly to the goal! Scan servicehelper QR code or go to https://www.proxomed.com/leistungen/technischer- service/servicehelper-meldung. This will take you directly to our servicehelper form. -
Page 27: 10 Technical Data
10 Technical data Movement Device Patient Training Isometric Adjustable size dimension weight weight weight load Depth x width x Depth x width x maximum maximum maximum maximum height in cm height in cm (Standard) compass ® MTT International Back Trainer 57 kg 145 kg 133 x 68 x 104... - Page 28 Ambient conditions Operation Temperature +5° to +45° Celsius Humidity <65% Transport and storage Temperature -10° to +45° Celsius Humidity < 65% Requirements Medical Devices Ordinance EU 2017/745 Product life 7 years as medical device Stationary training equipment EN ISO 20957-1, ISO 20957-2 Use class according to ISO 20957-1 Risk classification 93/42/EEC...
-
Page 29: 11 Warranty
The customer is responsible for ensuring the functionality of the device through the early replacement of wear parts if the intervals for safety checks specified by proxomed are not adhered to or if no maintenance contract has been concluded with proxomed. - Page 30 All illustrations in these instructions for use are approximate for typographical reasons; we accept no liability for typographical errors. Errors excepted. User Manual compass MTT Training Benches, version 01, 2021-11-11...
