Summary of Contents for Proxomed compass MTT
- Page 1 - rope pulls manual...

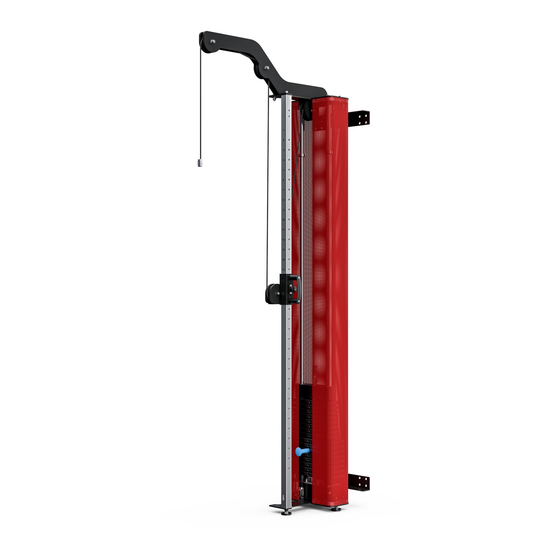

- Page 2 These operating instructions apply exclusively to the devices shown below. If the device has been modified, please use the latest version. Models: compass® MTT S1 med. explosive pulley compass® MTT S3 med. vertical pulley manual Page 1 of 37 version 01...
-
Page 3: Table Of Contents
table of contents Symbols and stickers ........................3 Generally used symbols .............................. 3 Symbols used for transport ............................4 Applied stickers on the device ..........................5 General information ........................6 Description of the product line ..........................8 Version compass® MTT S1 med. explosive cable pull incl. stand ............. 9 Version compass®... -
Page 4: Symbols And Stickers
Symbols and stickers Generally used symbols Picture Description of the Reference Caution Consult accompanying documents ISO 7000-0434 Consult the instructions for use ISO 7000-1641 (DB 2004-01) Manufacturer ISO 15223-1 CE mark, as evidence that the fundamental requirements of the Medical Device Directive 93/42/EEC have been complied with. -
Page 5: Symbols Used For Transport
Symbols used for transport Picture Description of the Reference TOP - above here DO NOT stack risk of breakage Protect from moisture Fragile manual Page 4 of 37 version 01... -
Page 6: Applied Stickers On The Device
Applied stickers on the device Picture Description of the Reference multi-year audit badge Next test date (countersigned by perforation) Type plate (without Smart-Panel) Here all relevant information of the devices is shown. (manufacturer, year of manufacture, device designation/line, max. user weight, serial number, electrical data) Follow the instructions Additional attachment for devices with... -
Page 7: General Information
General information Identification of the instructions for use The version is indicated on the last page. If modifications by the manufacturer should require a change, this will be indicated by the manufacturer by a new version number. Modifications of products Product modifications may generally only be carried out with original parts from the manufacturer and by authorized specialist personnel. - Page 8 In the case of the contraindications listed below, training on the training equipment considered here must be excluded. Relative contraindications: tumor disease • Hypertension not sufficiently controlled by medication • Stress sensitive coronary heart diseases (CHD) • Relative heart failure •...
-
Page 9: Description Of The Product Line
If any of the following occurrences show up during training, the session should be stopped immediately in order to avoid overloading the human organism: shortness of breath, feeling of anxiety • Angina pectoris (seizure-like pain in the chest) • sickness •... -
Page 10: Version Compass® Mtt S1 Med. Explosive Cable Pull Incl. Stand
Version compass® MTT S1 med. explosive cable pull incl. stand manual Page 9 of 37 version 01... -
Page 11: Version Compass® Mtt S3 Med. Vertical Tension
Version compass® MTT S3 med. vertical tension manual Page 10 of 37 version 01... -
Page 12: Intended Purpose
The weight pin is secured against falling out by appropriate mechanism (magnet or mechanical fixation). For this it is necessary that the weight pin is always inserted completely. Only original weight pins from proxomed may be used! compass® MTT S1 med. explosive Rope pull wall, Art. 10120100 The compass®... -
Page 13: Compass® Mtt S1 Med. Explosive Rope Pull Stand, Art. 10120100 + 10305100
Due to their small weight increment, the rope pulley can be used in all phases of therapy. The multiple deflection of the compass® S1 wire rope pulley ensures an even finer weight grading. The weight is changed by inserting the pin into the desired training weight on the weight stack. The accompanying therapist should check the positioning of the patient before and during training. -
Page 14: Compass® Mtt S3 Med. Vertical Pull, Art. 10120300
compass® MTT S3 med. vertical pull, Art. 10120300 The compass® S3 vertical pull provides a wide range of training options for neuromuscular training within the medical training therapy (MTT). These machines can be used to train a wide variety of muscle groups, mainly in the upper and lower extremities, as well as the stabilizing trunk muscles at various levels of movement. -
Page 15: Safety And Security
Safety and security Correct use - User Before starting the training program, the patient should warm up on an ergometer, and prepare the corresponding muscles for the strain with subsequent stretching exercises. If mobility is restricted or if pain is present, training may only be carried out in the possible or pain-free range of motion. -
Page 16: Correct Use - Location
Correct use - Location Note that the load-bearing capacity of the subfloor must correspond to the weight of the equipment. Use the units only in dry rooms free of seawater air (<65% humidity) and avoid temperatures below 5 degrees Celsius and above 45 degrees Celsius. Application duration According to the doctor's instructions. -
Page 17: General Warnings
General warnings The training equipment may only be used in areas where access and supervision is specifically • controlled by the owner. The scope of the supervision depends on the users and their degree of reliability, age, experience, etc. The training equipment may only be used under the supervision of authorized specialist personnel (e.g. -
Page 18: Safety Instructions
Safety instructions It must be ensured, especially when changing the position of the device without dismantling it, • that the safe standing on level ground is guaranteed. The protective cover must not be dismantled. • The wire rope pulley only comply with the statutory regulations with protective cladding. •... -
Page 19: Preparation
Preparation Transport The devices are usually delivered completely assembled by our employees or by a forwarding agent. In rare cases it may be necessary for transport reasons to ship the equipment partially dismantled (e.g. stand versions). In these cases, please use the corresponding assembly instructions and follow the instructions given there or the instructions within this operating manual! Storage The storage location of the devices should be dry, seawater-free and dust-protected and should have a... - Page 20 The first figure shows the maximum range of movement of the wall version. A space requirement of approx. 12 m² must be expected here. approx. 3,5m Ø ≥2m Area up to next device active person training sector Maximum extent of movement of the wall version The space required for the stand version is approx.
- Page 21 The illustration shows the cable columns with the shifting device. For this a space f approx. 20m² must be calculated. approx. 6m Ø ≥2m Ø ≥2m Maximum range of motion of the version with shifting device The training device must be placed on a level, impact-resistant surface. In the case of small uneven surfaces, these can be compensated for by the adjustable feet to be attached or attached to the device or a flat surface must be created by using suitable underlay material made of compensating plates or heavy-duty plastic.
-
Page 22: Commissioning
Since the type of the walls to which the supplied cable columns are attached, can differ considerably. proxomed only supplies wall attachments for walls with load-bearing properties. We strongly recommend that the mounting has to be carried out by a specialist company in order to ensure safety during training. - Page 23 For cable column S1 as standing model (Art. 10120100 + 10305100) The stability of the free-standing cable column is only guaranteed after the feet have been removed for transport reasons, in conjunction with the movement limitation of the weights (adjusting ring). Check the correct fixing of all screw connections before commissioning.
- Page 24 Since the type of the walls to which the cable columns are attached can differ considerably, proxomed only supplies wall attachments for walls with load-bearing properties.
-
Page 25: General Application
• Vertical and cable colmns with lat pull attachment: Please note that lat pull rods that are too heavy can fall down with a low insertion weight and cause injuries to the user. Only use suitable original proxomed accessories! • The settings on the device should be made with the necessary care. Read the relevant passages in the instructions for use. -
Page 26: Accessories
Accessories The following accessories can be attached to the unit: Articles designation Description of the 10305600 Grip bar for stabilization (S1) The grip bar can be adjusted to the body size and can be mounted on the right and/or left side. - Page 27 10305000 Attachment for lat pulldown (S1) The lat pull gallows can be used for exercises with 'overhead level' without any problems. Both a training of the 'Pull_Down' movement for the stabilization of the shoulder blades (lat pull rod art. 10120700) as well as various other exercises (e.g.
-
Page 28: Hand Grips Etc
10306* cover exchange possibility of the fabric lining Color variations: *000 - black *100 - white *200 - red Hand grips etc. Articles Designation Description The lat pull bar with double eyelet enables vertical pull exercises to be carried out on the 10120700 Lat bar with double eyelet (chrome) S1 rope pull, which are equipped with the... -
Page 29: Technical Data
10 Technical data Description Technical data Dimensions Depth x width x height in cm S1 med. explosive wire rope hoist - wall version 55 x 37 x 214 (Art. 10120100) S1 med. explosive wire rope hoist - standing version 113 x 134 x 214 (Art. -
Page 30: Real Acting Power During Rope Pull Training
10.1 Real acting power during rope pull training The basis for cable column training is the pulley principle. The force required to lift a weight can be reduced by using loose pulleys and the number of supporting ropes. The more load-bearing ropes used through the use of loose sheaves, the lower the load arriving at the rope ends. - Page 31 Real acting force at S1 (table) Real acting weight* staked weight incoming load incoming load one rope end [kg] two rope ends [kg] 1,08 2,17 1,50 3,00 1,92 3,83 2,33 4,67 12,5 2,75 5,50 3,17 6,33 17,5 3,58 7,17 4,00 8,00 4,83 9,67...
- Page 32 Real acting force at S3 (table) Real acting weight* staked incoming load weight one end of rope 5,29 7,79 10,29 12,79 12,5 15,29 17,79 17,5 20,29 22,79 27,79 32,79 37,79 42,79 47,79 52,79 57,79 62,79 * including base weight manual Page 31 of 37 version 01...
-
Page 33: Maintenance
11 Maintenance Despite the excellent quality of the equipment, you should carry out the following checks from time to time (1 - 2 months) for safety reasons: Check all parts of the device, especially moving parts such as track rollers, screws, bolts, •... -
Page 34: Cleaning
11.1 Cleaning frame parts Clean the frame parts regularly with a damp cloth and mild soap to remove aggressive welding residues. Handles, Upholstery After training, disinfect the handles and pads with commercially available disinfectants. cladding Clean the cladding with water and a soft natural brush (plus mild soap if necessary). Corresponding cleaning products are available at www.traininghelper.de. -
Page 35: Service
Our Local Partner in your Region: Contact us Switzerland Please check at our web site: +41 52 762 16 17* https://www.proxomed.com/en/serv +41 52 762 14 70 ice/ansprechpartner.html +41 76 362 64 81 *Mon-Fri 8am-17pm manual Page 34 of 37... -
Page 36: Warranty
As soon as a warranty case occurs, you should immediately inform the Service Hot Line of proxomed under the telephone number +49 (6023) 9168 77 or contact by email service@proxomed.com. proxomed or our local partner will immediately arrange for a service, but reserves the right to the type of use. The following procedures are conceivable. - Page 37 notes manual Page 36 of 37 version 01...
- Page 38 +41 52 762-1300 info@proxomed.ch www.proxomed.com Changes: proxomed® reserves the right to change products, if these amendments lead to a quality and safety of our products from our point of view. Functional improvement. All illustrations in these instructions for use are only approximate for technical printing reasons;...
