Assembly and Operating Instructions
~ 90 Min.
75 kg
L 40 | W 36 | H 223
TFKABELZUG.01.01
Art. No. TF-KABELZUG
TF-

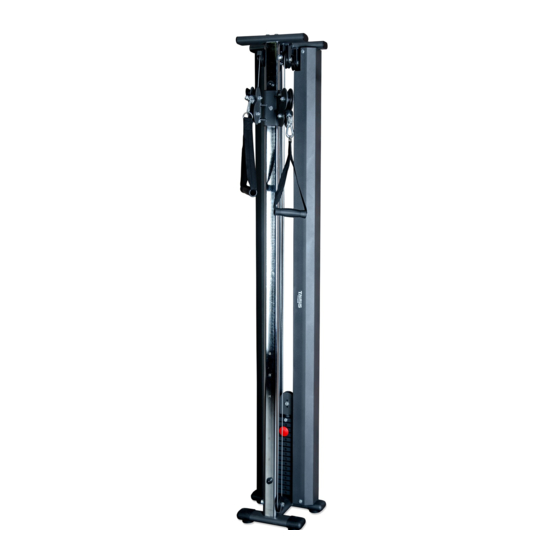

Taurus
Pulley Hi-Low

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TF-KABELZUG and is the answer not in the manual?

Questions and answers

Summary of Contents for Taurus TF-KABELZUG

  • Page 1 Assembly and Operating Instructions ~ 90 Min. 75 kg L 40 | W 36 | H 223 TFKABELZUG.01.01 Art. No. TF-KABELZUG Taurus Pulley Hi-Low...
  • Page 2 Hi-Low...
  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing...
  • Page 4 Hi-Low...
  • Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
  • Page 7: General Information

    GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.: Box 1: 218 cm x 20 cm x 13 cm 23 kg Box 2: 98 cm x 38 cm x 11 cm 17.5 kg Box 3: 28 cm x 15 cm x 18 cm...
  • Page 8: Personal Safety

    Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
  • Page 9: Set-Up Place

    Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.
  • Page 10: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 11 Number Description Quantity Bottom base Upright frame Guide rod Left cover Right cover Upper slide block Cable slide Upper beam Cable Hook Selector shaft Pulley block...
  • Page 12 Double pulley block Long lat bar Heavy weight plate Heavy weight plate with pre-mounted & & plastic bushing for top plate Handle strap Rubber donut Pulley Nylon lock bushing Plastic head bolt Oval end cap Buffer Shaft Large pulley Hi-Low...
  • Page 13 Bolt M8*12 washer Bolt M10*50 + washers + lock nut Bolt M10*110 + washer + bend washer + lock nut Bolt M8*50 washer Cross pad head screw M8*50 + washer + lock nut Bolt M8*55 washer Bolt M10*105 + washers + lock nut...
  • Page 14: Assembly

    Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the Bottom Base, Upright Frame and Guide Rods Attach four oval end caps (27) to the bottom base (1).
  • Page 15 Step 2: Assembly of the Weight Stack Slide two rubber donuts (19) over the guide rods (3). Carefully slide each of the heavy weight plates (16) over the guide rods (3). Attach the selector shaft (11) and the pulley block (12) to the top weight plate (16) with one bolt assembly (35).
  • Page 16 Step 3: Assembly of the Double Pulley Blocks and Pulleys Attach the double pulley blocks (13) to the upper slide block (6) with one shaft (37) and one bolt assembly (36) each. Tighten the bolts and nuts (36). Slightly pull the fast pin (23) and slide the upper slide block (6) over the upright frame (2). Tighten the fast pin (23) again and make sure it engages in one of the holes on the upright frame (2).
  • Page 17 Step 4: Assembly of the Upper Beam and Pulleys Attach the upper beam (8) to the upright frame (2) and guide rods (3) with four bolt assemblies (33). Attach three pulleys (20) along with three cable slides (7) to the upper beam (8) with one bolt assembly (31) each.
  • Page 18 Step 5: Cable Routing NOTICE To perform the cable routing, you might need to loosen some of the pulleys. Detach the ball ends of the cable (9) and place one end of the cable under the upper pulley in the double pulley block (13a). Reattach the ball end to the cable (9) in this position to ensure the cable (9) does not pull through.
  • Page 19 Step 6: Assembly of the Covers Remove the plastic bolt head (24) from the nylon lock bushing (22). Attach the left cover (4) to the bottom base (1) and upper beam (8) with four bolt assemblies (30). Attach the right cover (5) to the bottom base (1) and upper beam (8) with four bolt assemblies (30).
  • Page 20 Step 7: Wall Mounting ࣑ ATTENTION The supplied assembly material for wall mounting is not suitable for every wall. Pay attention to the condition of your wall to determine which assembly material is suitable for your wall. The contractual partner accepts no liability for any damage to the wall. Make sure that there are no cables or wires running in the wall where you attach the training equipment.
  • Page 21: Storage And Transport

    STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
  • Page 22: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
  • Page 23: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing...
  • Page 24: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.
  • Page 25: Ordering Spare Parts

    The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Pulley Hi-Low Article Number: TF-KABELZUG...
  • Page 26: Parts List

    Parts List Name Qty. BOTTOM BASE UPRIGHT FRAME GUIDE ROD LEFT COVER RIGHT COVER UPPER SLIDE BLOCK PROTECT PLATE UPPER BEAM CABLE HOOK SELECTOR SHARFT PULLEY BLOCK DOUBLE PULLEY BLOCK LONG LAT BAR HEAVY WEIGHT PLATE PLASTIC BUSHING FOR TOP PLATE HANDLE STRAP RUBBER DONUT PULLEY...
  • Page 27 BOLT M10*105 + WASHER+BEND WASHER + LOCK NUT BOLT M8*50 + WASHER CROSS PAD HEAD SCREW M8*50 + WASHER + LOCK NUT BOLT M8*55 + WASHER BOLT M10*80 + WASHERS + LOCK NUT SHAFT LARGE PULLEY...
  • Page 28: Exploded Drawing

    Exploded Drawing Hi-Low...
  • Page 29: Warranty

    WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 30 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
  • Page 31: Contact

    CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de �� �� Åbningstider kan findes på...
  • Page 32 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
  • Page 33 Notes...
  • Page 34 Notes Hi-Low...
  • Page 36 Taurus Pulley Hi-Low...
