- Page 1 Assembly Instructions ~ 30 Min. 30 kg L 147 | W 123 | H 90 TFKHS30.01.01 Art. No. TF-KHS-30 Dumbbell Stand KHS 30...
- Page 2 KHS 30...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 KHS 30...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. KHS 30...
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging): Box 1: 6 cm x 53 cm x 100 cm 7 kg Box 2: 19 cm x 31 cm x 113 cm 23.5 kg Set-up dimensions (L x W x H): 47 cm x 123 cm x 90 cm... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. KHS 30... -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. KHS 30... -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... -
Page 12: Assembly
Attach one barbell support (2) along with two joint plates (3) to the upright supports (1) with a total of four bolts (4), eight washers (5) and four nuts (6). Repeat the procedure with the other barbell supports. Tighten all bolts. KHS 30... -
Page 13: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 14: Troubleshooting, Care And Maintenance
If the equipment still does not function properly, contact your contract partner. Fault Cause Solution Squeaking & cracking Screw connections loosened Check or lubricate screw connections noises or too tight Uneven ground Align unit Unit wobbles Loose screw connections Tighten screw connections KHS 30... -
Page 15: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Legend: C = clean;... -
Page 16: Recommended Accessories
We will be happy to advise you! chest strap floor mat chest strap contact gel silicone spray towels KHS 30... -
Page 17: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / strength training Model Name: Dumbbell Stand KHS 30 Article Number: TF-KHS-30... -
Page 18: Parts List

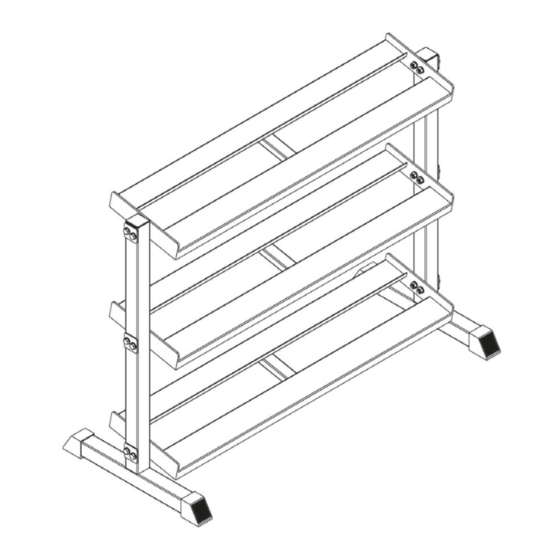

Parts List Name Qty. Upright support Barbell support Joint plate Bolt M10*75 Washer 10 Nut M10 End cap Square plug Exploded Drawing KHS 30 NUMBER DESCRIPTION QUANTITY UPRIGHT SUPPORT BARBELL SUPPORT... -
Page 19: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 20 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. KHS 30...
-
Page 21: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de �� �� Åbningstider kan findes på... - Page 22 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! KHS 30...
