Summary of Contents for Walker Edison HT72SLD

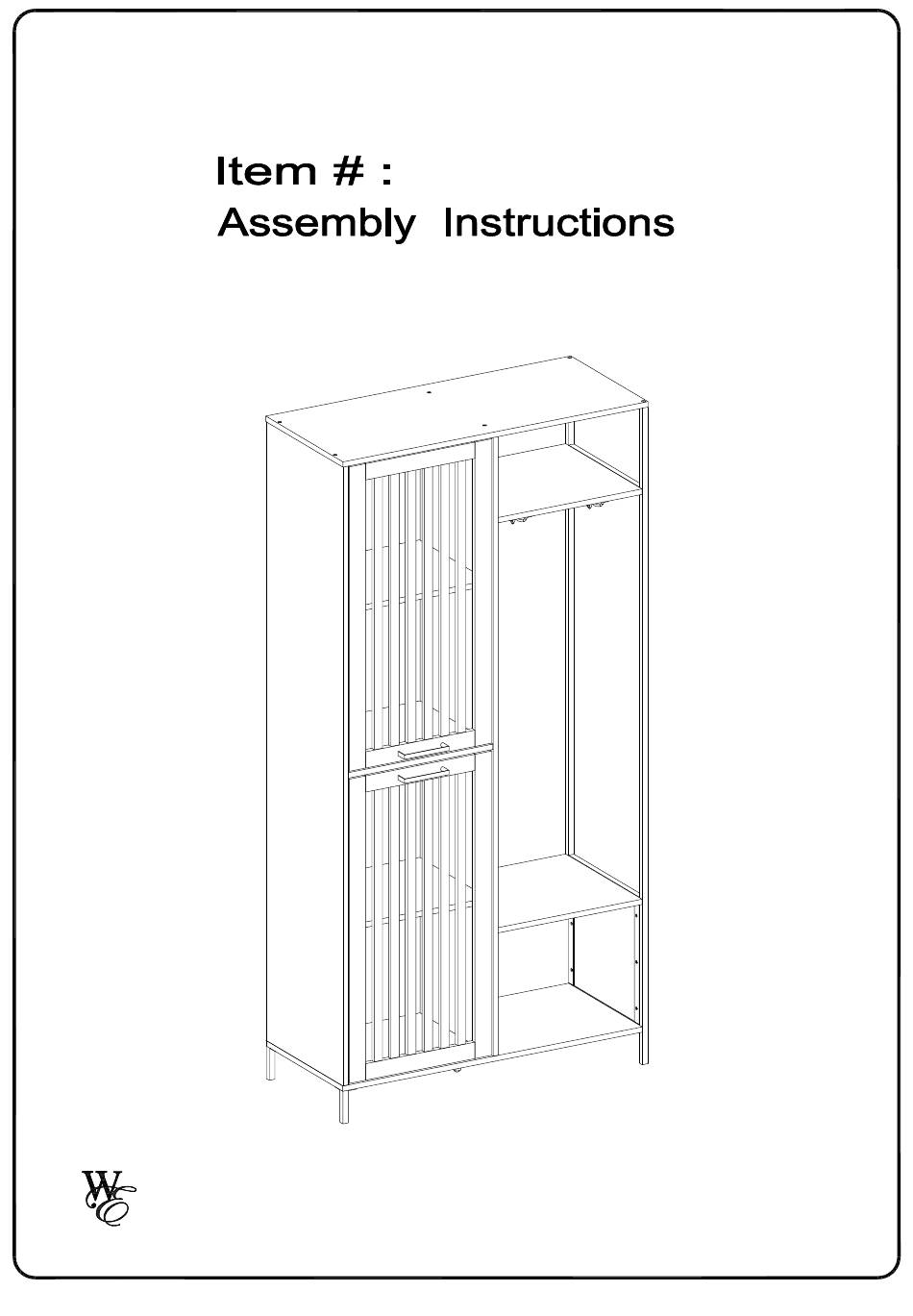

- Page 1 HT72SLD Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 09/12/2019(I) Walker Edison ® Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
-
Page 2: General Assembly Guidelines
Concealed hinges are three-way adjustable. Horizontal In-and-Out Vertical by screw adjustment by loosening the hinge-arm Via slots in the mounting mounting screw or via cam plate or via cam adjustment adjustment © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 3: Parts List
Parts List © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. -
Page 4: Hardware List
Glue tube Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. ©... - Page 5 Step 1 Insert wooden dowel (A) into part (3) ，then secure cam bolt (B) into part (3) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 6 Step 2 Insert wooden dowel (A) into part (4) ,then secure cam bolt (B) into two sides of part (4) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 7 (N) to parts(1,14)with Philips head screwdriver .using bolts (S,T) attach part (15) to part (2) , using bolt (S) attach part(12) to part (2) with hex key (R) as per diagram . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 8 Insert wooden dowel (A) into parts (10,11) ,Secure cam bolt (B) into part (10) then using cam lock (C) attach part (11) into part (10) with Philips head screwdriver as per diagram . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 9 Step 5 Using cam lock (C) attach parts (9,10,11) to part (4) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved.
- Page 10 Step 6 Using cam lock (C) attach part (14) to part (4) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.10...
- Page 11 Step 7 Using cam lock (C) attach part (14) to part (3) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.11...
- Page 12 Step 8 Using screw (E) attach part (2) into parts (3,4,11) with hex key (R) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.12...
- Page 13 Step 9 Using bolt (S) attach part (5) to parts (2,9,10) with hex key (R) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.13...
- Page 14 Step 10 Put part (6) as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.14...
- Page 15 Using bolt(T,E ) attach part (1) into part (3,4,5) with hex key (R) as per diagram .please kindly note that keep the back panel into the groove of part (1) then secure all the bolts. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.15...
- Page 16 Step 12 Place sticker (D) cover the holes as per diagram . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.16...
- Page 17 Step 13 Using screw (X) attach Velcro strap (U) into part (1) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.17...
- Page 18 Step 14 Using screw (G) secure plastic wedge (F) into part (6) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.18...
- Page 19 (Q) in the same level. So the shelf is not titled .Put part (13) into unit as per diagram. Tilt and rest the adjustable shelf(13) onto the shelf support pins . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.19...
- Page 20 Step 16 Using bolt (J) attach handle (H) into parts (7,8) ,and using screw(L) attach Europe hinge (K) to parts (7,8) with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.20...
- Page 21 Using screw(L) attach Europe hinge (K) to part (3) with Philips head screwdriver as per diagram. Open and close the doors to make sure they were shut correctly .if necessary ,adjust the screws for a good fit . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.21...
- Page 22 Wall Using screw (V) attach Velcro strap (U) into Nut (W) to Wall with Philips head screwdriver as per diagram. © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.22...
- Page 23 Step 19 Position the assembled unit at the desired location .if necessary ,adjust the floor leveler at the bottom of support leg to level the unit . © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.23...
- Page 24 Step 20 Final Assembly © Copyright 2019, by Walker Edison Furniture Co., LLC. All rights reserved. P.24...
