3.2 BIF-CON (Option)

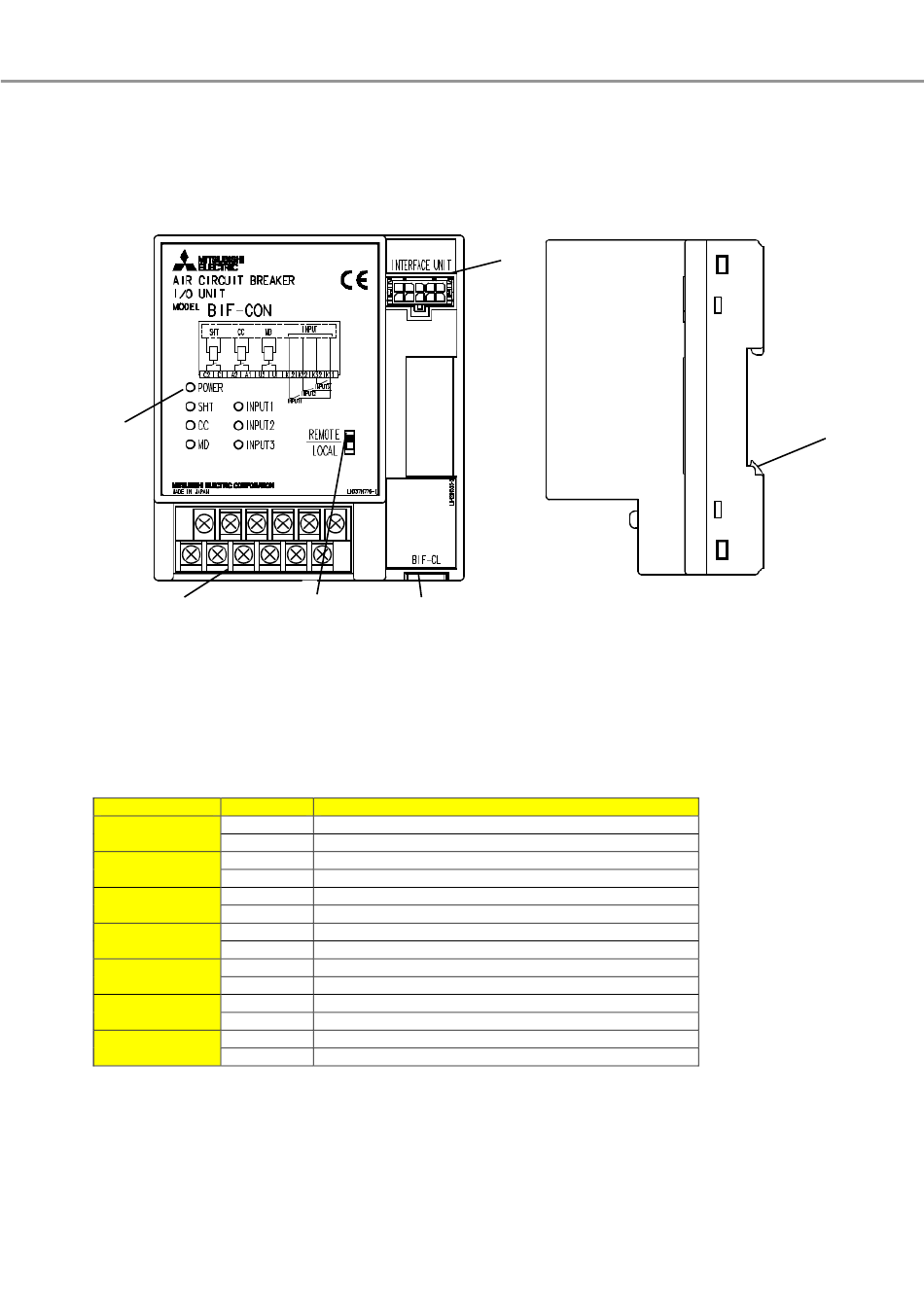

The unit overview is shown as below.
A
B
Fig 3.7: Front view
●(A) LEDs
Name Indication
ON
POWER
OFF
ON
SHT
OFF
ON
CC
OFF
ON
MD
OFF
ON
INPUT1
OFF
ON
INPUT2
OFF
ON
INPUT3
OFF
AE-SW Shunt trip device
■1): SHT is a type name of
For details about SHT, please see
AE-SW Closing coil
■2): CC is a type name of
For details about CC, please see
AE-SW Motor charging device
■3): MD is a type name of
For details about MD, please see
C
D
Description
Power is supplied from BIF-CC correctly
Power is not supplied
1a contact for SHT 1) is closed (500ms)
1)
1a contact for SHT is open
2)
1a contact for CC is closed (500ms)
1a contact for CC 2) is open
3)
1a contact for MD is closed (5s)
3)
1a contact for MD is open
INPUT1 signal is ON
No INPUT1 signal
INPUT2 signal is ON
No INPUT2 signal
INPUT3 signal is ON
No INPUT3 signal
which open the main contact via remote control.
"AE-SW INSTRUCTION MANUAL"
which close the main contact via remote control.
"AE-SW INSTRUCTION MANUAL"
which charges the closing spring for motor operating.
"AE-SW INSTRUCTION MANUAL"
