Summary of Contents for Mamiya FD-401

  • Page 1 Magnifier FD-401 English Instructions...

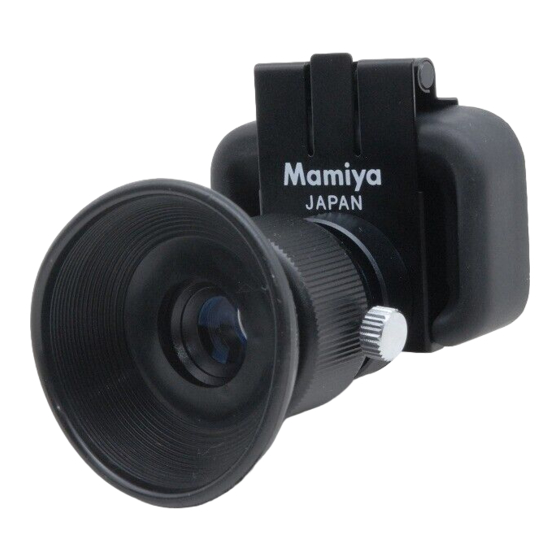

  • Page 2 Features The Magnifier is used to enhance focusing. It magnifies the central finder image by a factor of two, guaranteeing that close-up or copy work can be sharply focused. With an adjustment of -5 to +5 diopter, it can accommodate a broad range of eyesight and can be used with the following finders: AE Prism Finder N 645 Super...
  • Page 3 Adjusting the Magnifier for Your Eyesight Attach the Magnifier to the prism finder. Set the distance on your lens to infinity (∞) by rotating the lens’ Focusing Ring until the infinity symbol aligns with the index mark. Loosen the Set Screw (1). Hold the camera up to your eye and look through the Magnifier.
