Summary of Contents for Maxtang EHL-10

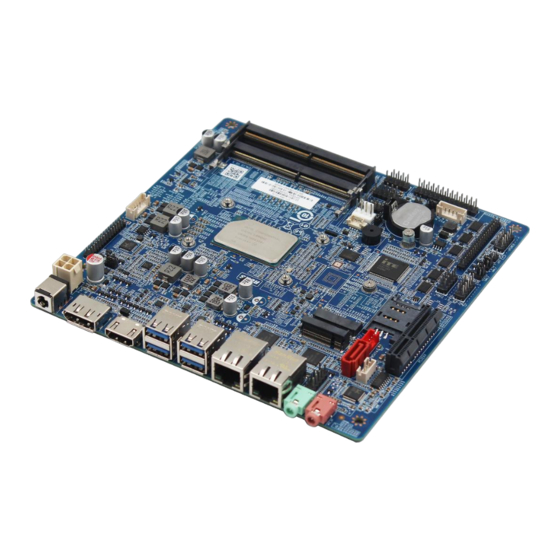

- Page 1 EHL-10 Mini-ITX Motherboard...
- Page 2 Copyright © 2022 Shenzhen Maxtang Computer Co., Ltd. All rights reserved. No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of Shenzhen Maxtang Computer Co., Ltd (hereinafter referred to as “Maxtang”).
- Page 3 Shenzhen Maxtang Computer Co., Ltd EHL10 Motherboard User Manual (Version 1.0) Version: Description Issue Date: V1.0 Initial Version 2022/07/12...
-
Page 4: Table Of Contents
Shenzhen Maxtang Computer Co., Ltd Contents Chapter 1 Product Introduction ......................3 1.1 Brief Introduction ......................3 1.2 Parameters ........................3 1.3 Connector Diagram ......................4 Chapter 2 Hardware ................6 2.1 Installations ........................6 2.2 Jumper Setting ........................6 2.3 Memory Slots ........................6 2.4 Display Interfaces ......................7 2.5 Storage ...........................9... -
Page 5: Chapter 1 Product Introduction
Shenzhen Maxtang Computer Co., Ltd Chapter 1 Product Introduction 1.1 Brief Introduction The EHL-10 is a mini ITX motherboard based on the Intel Elkhart Lake platform; features a small form factor, low power consumption, and high performance. 1.2 Parameters CPU: Intel Celeron J6412——4Cores 4Threads, Base Frequency 2.00GHz, Burst Frequency 2.60 GHz, TDP 10W... -
Page 6: Connector Diagram
Shenzhen Maxtang Computer Co., Ltd 1.3 Connector Diagram DP/HDMI HDMI 2*USB3.2 2*USB3.2 LAN23 LAN1 LINE_OUT MIC_IN DC_IN FP-AUDIO PWR2 SATA JAUD PWSATA M.2_S L-VCC PCIEX4 M.2_E BKLADJ COM2 JSPI LVDS/EDP COM1 SO-DIMM E_DIS SYSFAN JSYSFAN L-BKL JPOWER GPIO COM36 CPUFAN2 PS2_H 2*USB2.0... - Page 7 Shenzhen Maxtang Computer Co., Ltd...
-
Page 8: Chapter 2 Hardware
Shenzhen Maxtang Computer Co., Ltd Chapter 2 Hardware 2.1 Installations Please refer to the following steps for installations: Read the user manual carefully to make sure all the adjustments on the EHL10 are correct. Installing the Memory: ⚫ Press the ejector tab of the memory slot outwards with your fingertips. -
Page 9: Display Interfaces
Shenzhen Maxtang Computer Co., Ltd 2.4 Display Interfaces The board features Integrated Intel UHD graphics through 1xHDMI2.0 standard interface, 1xDP1.4(optional HDMI), 1xLVDS (optional eDP) for trio 4K displays. 2.4.1 LVDS The board supports a dual channel 24bit LVDS interface, the "L_VCC" pin is the display working voltage adjustment jumper, and the "... - Page 10 Shenzhen Maxtang Computer Co., Ltd Backlight Standard/Reverse adjustment jumper (Screen Printing: BKLADJ) Setting Function Close REV (Backlight Control Reverse) 55-6 Close STD (Backlight Control Standard) 2.4.2 eDP (Optional) Optional function, the board supports 2LANE eDP1.3 interface. When it is set as eDP functions, the pin transmits the eDP signal and disables the LVDS function.
-
Page 11: Storage
Shenzhen Maxtang Computer Co., Ltd Close VCC 5V Close VCC 12V Backlight Standard/Reverse adjustment jumper (Screen Printing: BKADJ) Setting Function Close REV (Backlight Control Reverse) 55-6 Close STD (Backlight Control Standard) 2.5 Storage The board features 1x SATA3.0 standard interface, transmission rate at 6GB/s, a disk power supply socket;... - Page 12 Shenzhen Maxtang Computer Co., Ltd COM1, COM2 pin definition (Screen Printing: COM1, COM2) Signal Signal DCD# DTR# DSR# RTS# CTS# (NC) COM36 (Screen: COM36) Signal Signal DCD# DTR# DSR# RTS# CTS# (NC) DCD# DTR# DSR# RTS# CTS# (NC) DCD# DTR#...
-
Page 13: Lpt
Shenzhen Maxtang Computer Co., Ltd DSR# (NC) RTS# (NC) CTS# (NC) (NC) 2.10 LPT A set of 2x13 Pin LPT interfaces onboard. Please use an adapter to convert the LPT interface to a standard parallel port for use. Users can connect it to a printer or other devices according to the needs. -
Page 14: Panel Switch Pin
Shenzhen Maxtang Computer Co., Ltd PWR3: ATX12V supplementary power supply socket (2x2PIN) 2.13 Panel Switch Pin The front control panel interfaces are to connect the functional buttons and indicators on the front panel. JPOWER (Screen Printing: JPOWER) Signal Signal HDD_LED+... -
Page 15: Cpu Fan Socket
Shenzhen Maxtang Computer Co., Ltd 2.16 CPU FAN Socket The board provides a CPU Fan socket for cooling. The default power supply is 5V, 12V optional. CPU_FAN (Screen Printing: CPU_FAN) Signal 2.17 System Fan Socket The board provides one system fan socket, default 5V for power supply (optional 12V through JSYSFAN).
