Summary of Contents for Maxtang ALD-70
- Page 1 ALD-70 Mini ITX Motherboard...
- Page 2 Copyright © 2023 Shenzhen Maxtang Computer Co., Ltd. All rights reserved. No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of Shenzhen Maxtang Computer Co., Ltd (hereinafter referred to as “Maxtang”).
-
Page 3: Ald70 Motherboard
Shenzhen Maxtang Computer Co., Ltd ALD70 Motherboard User Manual (Version 0.5) Version: Description Issue Date: V0.5 Initial Version 2022/12/01... -
Page 4: Table Of Contents
Shenzhen Maxtang Computer Co., Ltd Contents ALD70 Motherboard ................1 User Manual ..................1 (Version 0.5) ..................1 Chapter 1 Product Introduction ....................4 1.1 Brief Introduction ......................4 1.2 Parameters ........................4 1.3 Connector Diagram ......................5 Chapter 2 Hardware ................6 2.1 Installations ........................6 2.2 Jumper Setting .........................6... - Page 5 Shenzhen Maxtang Computer Co., Ltd 3.3.7 Super IO Configuration ....................20 3.3.8 Hardware Monitor ......................21 3.3.9 Watch Dog Configuration ...................22 3.3.10 S5 RTC Wake Settings ....................23 3.3.11 USB Configuration ....................24 3.3.12 Network Stack Configuration ..................25 3.3.13 CSM Configuration....................26 3.3.14 NVMe Configuration ....................27 3.4 Chipset ..........................28...
-
Page 6: Chapter 1 Product Introduction

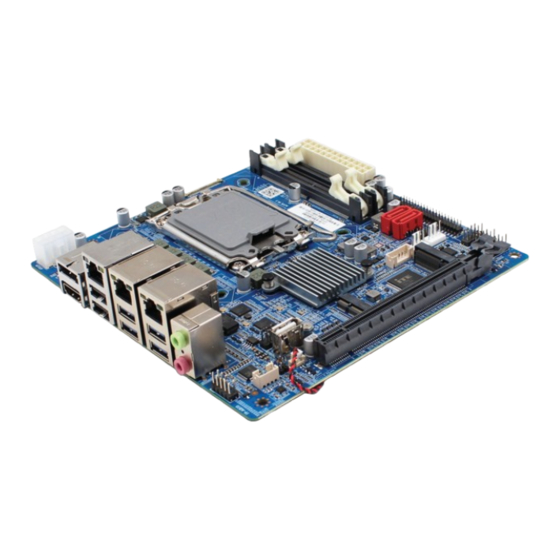

Chapter 1 Product Introduction 1.1 Brief Introduction The ALD-70 is a mini ITX motherboard based on the Intel Raptor Lake/Alder Lake-S (FCLGA1700 socket) processor with H610 chipset; small form factor and high performance up to 65W for TDP. 1.2 Parameters... -
Page 7: Connector Diagram
Shenzhen Maxtang Computer Co., Ltd 1.3 Connector Diagram 深圳市大唐计算机有限公司 FP-AUDIO AUDIO LAN2+2*USB3.2 HDMI+DP ATX12V JAUD LAN3+2*USB2.0 LAN1+2*USB3.2 1*USB2.0 2*USB2.0 PCIE 16X M.2 WIFI M.2-N/S GPIO JCOM1 JCOM2 COM36 ATX1 2*SODIMM 2*SATA... -
Page 8: Chapter 2 Hardware
Shenzhen Maxtang Computer Co., Ltd Chapter 2 Hardware 2.1 Installations Please refer to the following steps for installations: Read the user manual carefully to make sure all the adjustments on the ALD70 are correct. Installing the Memory: ⚫ Press the ejector tab of the memory slot outwards with your fingertips. -
Page 9: Storage
Shenzhen Maxtang Computer Co., Ltd 40Pin eDP (Screen Printing: PANEL) Signal Signal 管脚 NC-RESERVED LCD_VCC BL_PWR LCD_VCC BL_PWR LCD_VCC BL_PWR H_GND BL_PWR AUX_CH_N NC-RESERVED AUX_CH_P NC-RESERVED H_GND BL_PWR_DIM Lane0_P BL_ENABLE Lane0_N BL_GND H_GND BL_GND Lane1_P BL_GND Lane1_N BL_GND H_GND Lane2_P... -
Page 10: Lan
Shenzhen Maxtang Computer Co., Ltd USB DATA+ USB DATA+ 2.7 LAN The board adopts a high-performance Intel network card chip, two 2.5Gbps Ethernet control chips (Intel i226) (Note: the Intel i226 network controller only supports one-time programming of MAC address, which cannot be changed later);... -
Page 11: Expansion Slot (Screen Printing: Sata, M.2-N, Pwsata)
Shenzhen Maxtang Computer Co., Ltd DTR# DSR# RTS# CTS# COM36 (Screen Printing: COM36) Signal Signal DCD# DTR# DSR# RTS# CTS# DCD# DTR# DSR# RTS# CTS# DCD# DTR# DSR# RTS# CTS# DCD# DTR# DSR# RTS# CTS# 2.10 Expansion Slot (screen printing: SATA, M.2-N, PWSATA) Screen printing M.2_E: 1xM.2 key E, Type 2230 (PCIE/USB2/CNVi) -
Page 12: Ps/2 (Screen Printing: Ps2)
Shenzhen Maxtang Computer Co., Ltd 2.12 PS/2 (Screen Printing: PS2) The board supports 1xPS2 header for PS2 keyboard and mouse (2.54mm spacing). PS2 Pin (Screen Printing: PS2) Signal 管脚 KB_DATA KB_CLK MS_ DATA MS_CLK 2.13 Switch Panel Socket (screen printing: JFP) The Jumper Front Panel interface is used to connect to the function buttons and indicators on the front panel of the chassis. -
Page 13: Atx Power Supply (Screen Printing: Atx1, Atx12V)
Shenzhen Maxtang Computer Co., Ltd 2.15 ATX Power Supply (Screen printing: ATX1, ATX12V) The board power supply: ATX power supply mode (ATX_24PIN+2*8PIN). ATX_24PIN (screen printing: ATX) Signal Signal +3.3V +3.3V +3.3V -12V PS_ON PWR_OK 5VSB +12V +12V +3.3V 8PIN (screen printing: ATX12V) - Page 14 Shenzhen Maxtang Computer Co., Ltd Step 1: Turn off the PC and disconnect the power. Step 2: Use the jumper cap to connect the 1 and 2 header of JCMOS for 10 seconds, then disconnect. Step 3: Restart the device, press the <DEL> button to enter the BIOS, load the optimal default value, save, and exit the settings.
-
Page 15: Chapter 3 Bios Setup
Shenzhen Maxtang Computer Co., Ltd Chapter 3 BIOS Setup 3.1 Entering the BIOS Turn on the computer and press <Delete> entering the BIOS After the computer is turned on, keep pressing F11, select enter Setup BIOS Hotkeys: F9: Restore to Factory setting. -
Page 16: Advanced Settings
Shenzhen Maxtang Computer Co., Ltd 3.3 Advanced Settings Select any of the items in the left frame of the screen. The advanced sections allow you to configure, improve and set up system features according to the preference of the CPU Configuration. All Advanced BIOS Setup options are described as follows. -
Page 17: Cpu-Power Management Control
Shenzhen Maxtang Computer Co., Ltd 3.3.2 CPU-Power Management Control Intel® Speedstep®(TM): Enhanced Intel SpeedStep® Technology enables the operating system to control multiple frequencies and voltage points for optimal performance and power efficiency. Intel® Speed Shift Technology: An energy-efficient frequency control method by the hardware rather than relying on OS control. -
Page 18: Gt-Power Management Control
Shenzhen Maxtang Computer Co., Ltd 3.3.3 GT-Power Management Control RC6(Render Standby): Allow/Prohibit integrated graphics card standby, the setting item has been Enabled/Prohibited, and the default setting is (Enabled). Maximum GT frequency： Maximum GT Frequency, Default max frequency. Disable Turbo GT frequency：... -
Page 19: Thermal Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.4 Thermal Configuration Enable All Thermal Functions CPU Thermal Configuration: Unlocks the temperature setting, the “Tcc Activation Offset” is the temperature adjustment option, the highest temperature is 105°C. Change the temperature by minus the number of degrees you wish to change. -
Page 20: Overclocking Performance Menu
Shenzhen Maxtang Computer Co., Ltd 3.3.5 OverClocking Performance Menu Over Clocking Feature: Disabled WDT (Watchdog Timer) Enable: Disabled BCLK Frequency... -
Page 21: Acpi Settings
Shenzhen Maxtang Computer Co., Ltd 3.3.6 ACPI Settings Enabled ACPI Auto Configuration Enabled Hibernation ACPI Sleep State S3 Video Repost: S3 Sleep Mode (Enable VGA BIOS POST function when waking up from S3 Sleep mode) -
Page 22: Super Io Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.7 Super IO Configuration Serial Port 1~6 Configuration Serial Port: Enable or disable serial port (COM). Device Setting (Read-only): Displays serial ports’ interrupt and location. Change Setting: Change serial port settings and suggest setting “Auto” as default. -
Page 23: Hardware Monitor
Shenzhen Maxtang Computer Co., Ltd 3.3.8 Hardware Monitor PC Health Status The PC health status displays CPU temperature, system temperature, fan speed, and other relevant voltage values. The above parameters have a certain range, and the system cannot run beyond these ranges. -
Page 24: Watch Dog Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.9 Watch Dog Configuration Watch Dog Configuration WDT Timeout Mode select: Minute or Second... -
Page 25: S5 Rtc Wake Settings
Shenzhen Maxtang Computer Co., Ltd 3.3.10 S5 RTC Wake Settings Wake system From S5: timing boot settings, disabled by default. Fixed Time: Select Fixed Time and the system will wake on the Hr: Min: Sec specified. Dynamic Time: Select Dynamic Time and the system will wake on a dynamic time. -
Page 26: Usb Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.11 USB Configuration Legacy USB Support Enable Legacy USB support. Disables legacy support if no USB devices are connected. Select enable will keep USB devices available under UEFI’s support. XHCI Hand-off Whether to enable the USB XCHI transfer protocol. A workaround for OS without XHCI hand-off support. -
Page 27: Network Stack Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.12 Network Stack Configuration Network Stack PXE Network boot setting, disabled by default. -
Page 28: Csm Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.13 CSM Configuration Boot Option Filter Option ROM Execution Network Storage Video Other PCI Devices... -
Page 29: Nvme Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.14 NVMe Configuration The capacity and model of the SSD will be displayed under the option after the NVMe protocol SSD has been installed. -
Page 30: Chipset
Shenzhen Maxtang Computer Co., Ltd 3.4 Chipset Select the chipset tab from the setup screen to enter the chipset BIOS Setup screen. System Agent (SA) Configuration: Northbridge configuration options, including video memory, display devices, and other options. PCH-IO Configuration: Southbridge configuration options, including hard disk, sound card equipment, and... -
Page 31: Pch-Io Configuration
Shenzhen Maxtang Computer Co., Ltd 3.4.1 PCH-IO Configuration PCI Express Configuration SATA Configuration USB Configuration Security Configuration HD Audio Configuration PCH LAN Controller State After G3 setting: S0 State (auto-start after power-on), S5 State by default. -
Page 32: Security
Shenzhen Maxtang Computer Co., Ltd 3.5 Security Administrator Password: Set the Administrator Password. User Password: Set User Password. Secure Boot: Secure boot... -
Page 33: Boot
Shenzhen Maxtang Computer Co., Ltd 3.6 BOOT Setup Prompt Timeout: Number of seconds that the firmware will wait before initiating the original default boot selection. A value of 0 indicates that the default boot selection is to be initiated immediately on boot. A value of 65535(0xFFFF) indicates that firmware will wait for user input before booting. -
Page 34: Save & Exit
Shenzhen Maxtang Computer Co., Ltd 3.7 Save & Exit Save Changes and Exit: Exit the system setup after saving the changes and continue to start the computer. Discard Changes and Exit: Exit the system setup without saving any changes and continue to start the computer.
