Mocka Eliza Buffet Assembly Instructions Manual

Eliza Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C D
dowel bolt locking
long
x16 screw x23 nut x23
x8
K L M N
bolt screw
screw Allen
x8 x24 x15
key
x1
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E F G H
s crew slide slide slide
x40 rail x3 rail x3 rail x3
O P Q
shelf
handle hinge
x5 x2
plug
x8

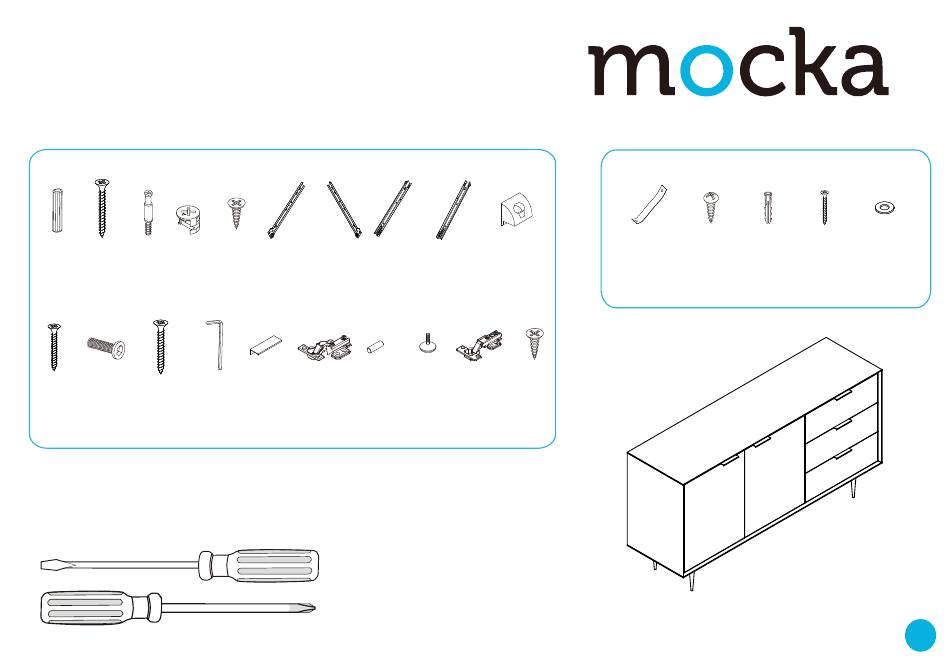

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
I J
slide wedge
rail x3 x8
R S T
adjuster
hinge hinge
x2 screw
x2
x24
V W X
safety screw wall
x1
strap x1 anchor
x1
Wall Strap
Y Z
wall washer
screw x2
x1
1
