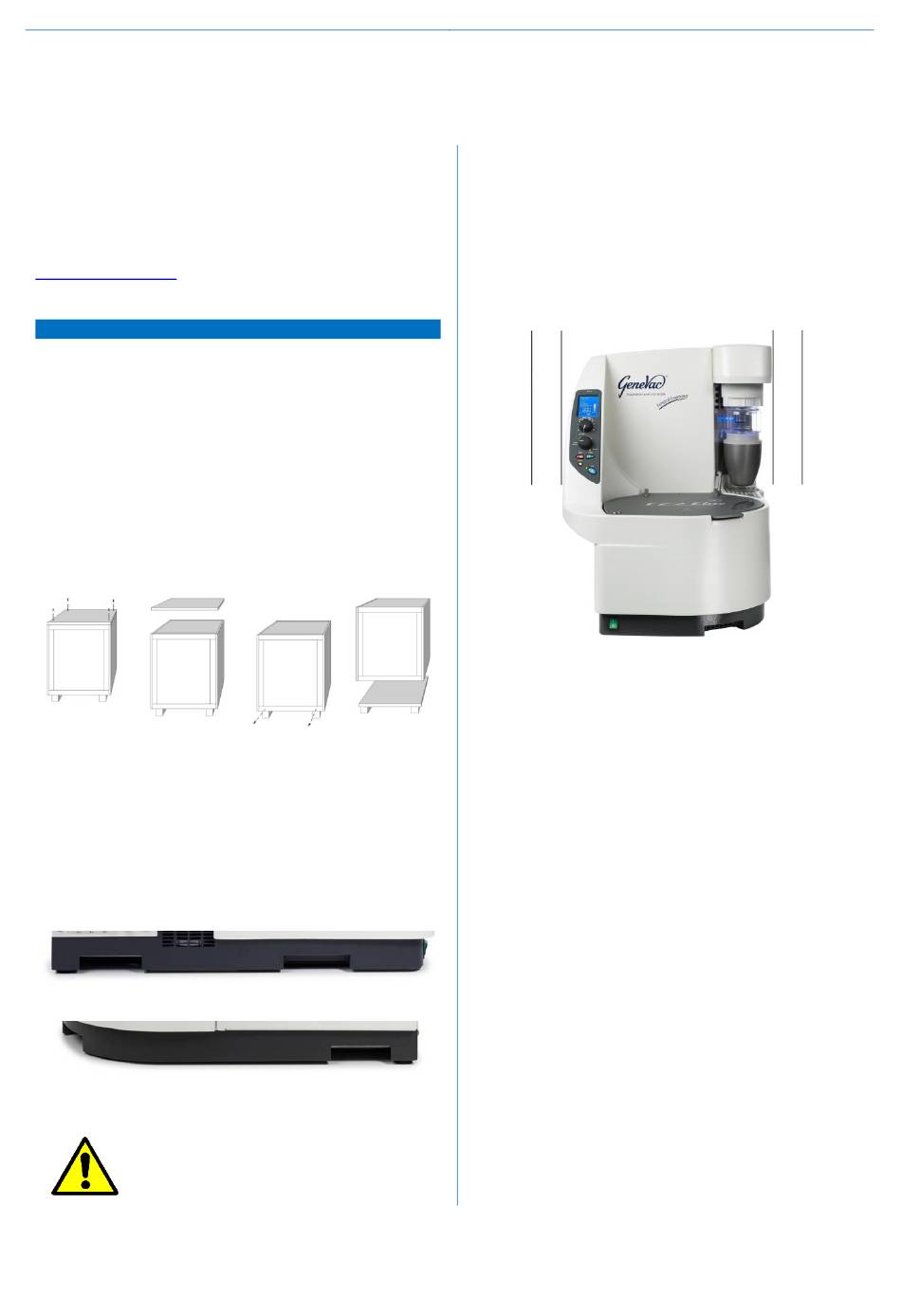

Genevac EZ-2 Elite Unpacking And Setting Up

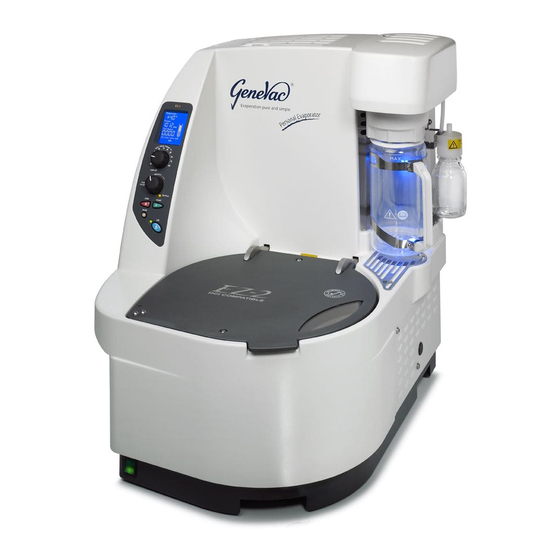

Genevac EZ-2 Elite
Unpacking
The evaporator and accessories and the vacuum pump
are packed in two separate boxes. Upon receipt of the
equipment, please check the packaging for damage
before signing for it. If there is any damage, contact
the Genevac Service department or your local
distributor immediately. Refer to the Genevac website:
www.genevac.com for up to date contact details of
Genevac representatives.
Handling information
Approx weight of packed crate *
Approx weight of EZ-2 Elite *
Weight of vacuum pump
* Actual weights vary according to build options.
Packaging
To unpack the wooden crate, undo the lid retaining
screws and remove the lid. Undo the screws from the
base of the timber sleeve and carefully lift the sleeve
clear of the evaporator.
Lifting
Make sure enough people are present to share the
lifting safely. Carefully lift the EZ-2 Elite slightly at first
to feel the weight and to find the centre of gravity.
When ready, manually lift the EZ-2 Elite into position
using the handholds in the base. Alternatively, use
mechanical lifting equipment such as a lifting table or
forklift.
Left side hand holds
Right side hand holds
Caution: The hand holds are for
manual lifting only. Do not insert lifting
forks.
04-6923
Installation site
The evaporator must be placed on a level and sturdy
work surface; there must be a 50 mm (2") air gap
between the evaporator and the edge of the bench or
any other object.
50 mm
(2")
129 kg
80 kg
26.2
Dimensions (w x d x h) 570 x 645 x 700 mm
The vacuum pump is connected to the evaporator by
a vacuum hose and electrical control cable which are
approximately three metres in length.
The waste solvent container must be positioned to
allow unimpeded drainage of solvent from the
evaporator and must be easily accessible for
emptying. Once a suitable location has been
decided, the drain hose can be cut to length.
There must also be provision to connect the exhaust
(PTFE: 8 mm OD, 6 mm ID) to a suitable laboratory
fume extraction system and to connect two power
cables to mains power outlets.
Note: The EZ-2 Elite may be placed in a fume
cupboard. To maintain a vapour free environment
around the EZ-2 Elite, do not store vessels
containing solvents or acids within the fume
cupboard.
Genevac recommend that evaporators equipped with
inert gas purge, are installed by an authorised
Genevac representative.
page 1 of 2
Unpacking and Setting Up
50 mm
(2")
Issue1-4 February 2014
