LED STATUS INDICATORS

Visual Reference
click
www.MTIGS.com | T:801.653.3807
-CONTROLLED DOCUMENT-

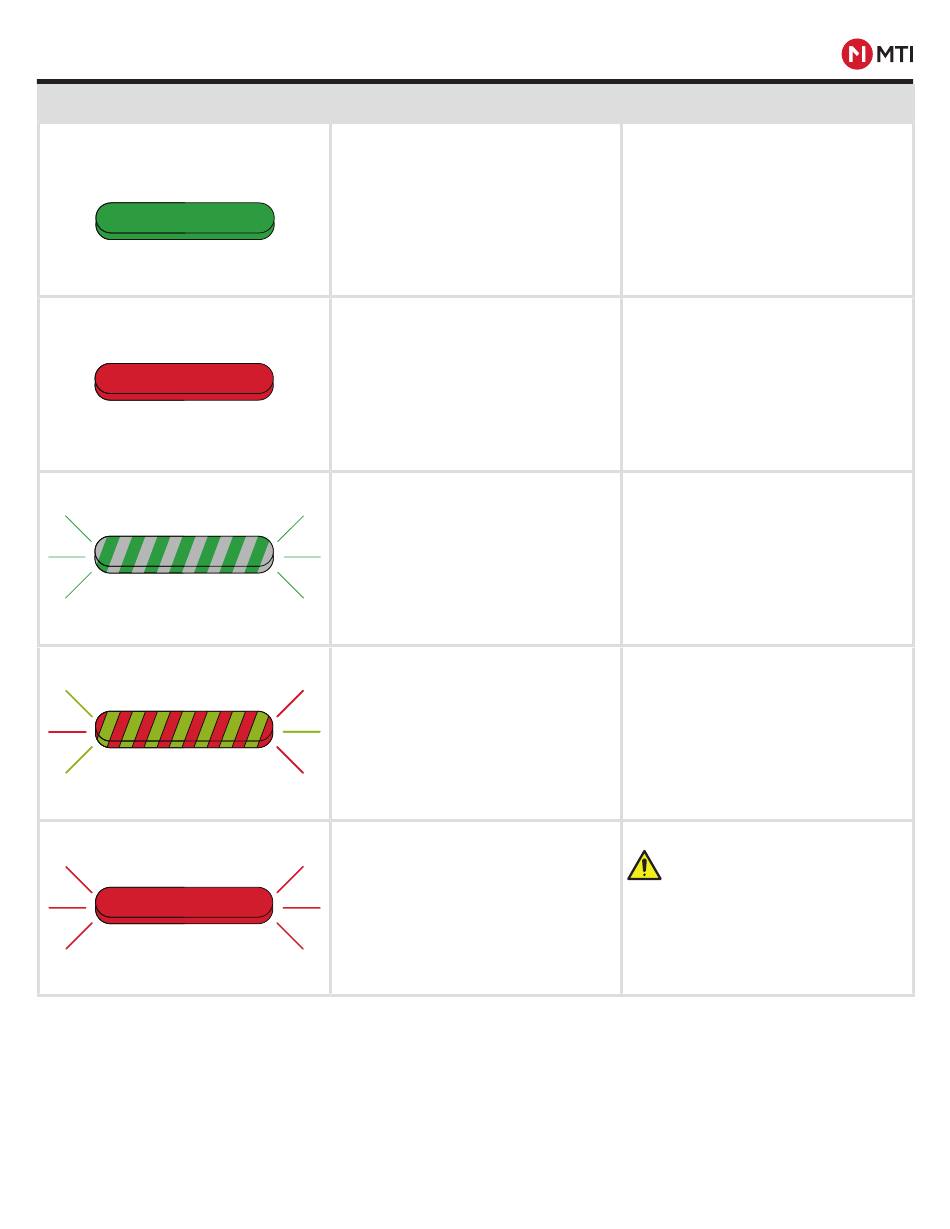

System Status
Solid Green LED
Solid Red LED
Flashing Green with audible click
Flashing Yellow-Green and Red
Flashing Red
063-00180 E-0 Status: Approved
®
PRO KIOSK INSTALLATION GUIDE
RAPIDDOC
Tablet docked
Tablet removed
Tablet ready for removal
Ready to register an Access card
Multiple undock attempts
If an Access Card is swiped more than 10
times within 2 minutes, the LED will flash Red
and not allow undock attempts for 2 minutes.
MTI P/N 063-00180 rev E ©2021 MTI All Rights Reserved
Condition
ECO-112676
