CABLE ROUTING

1

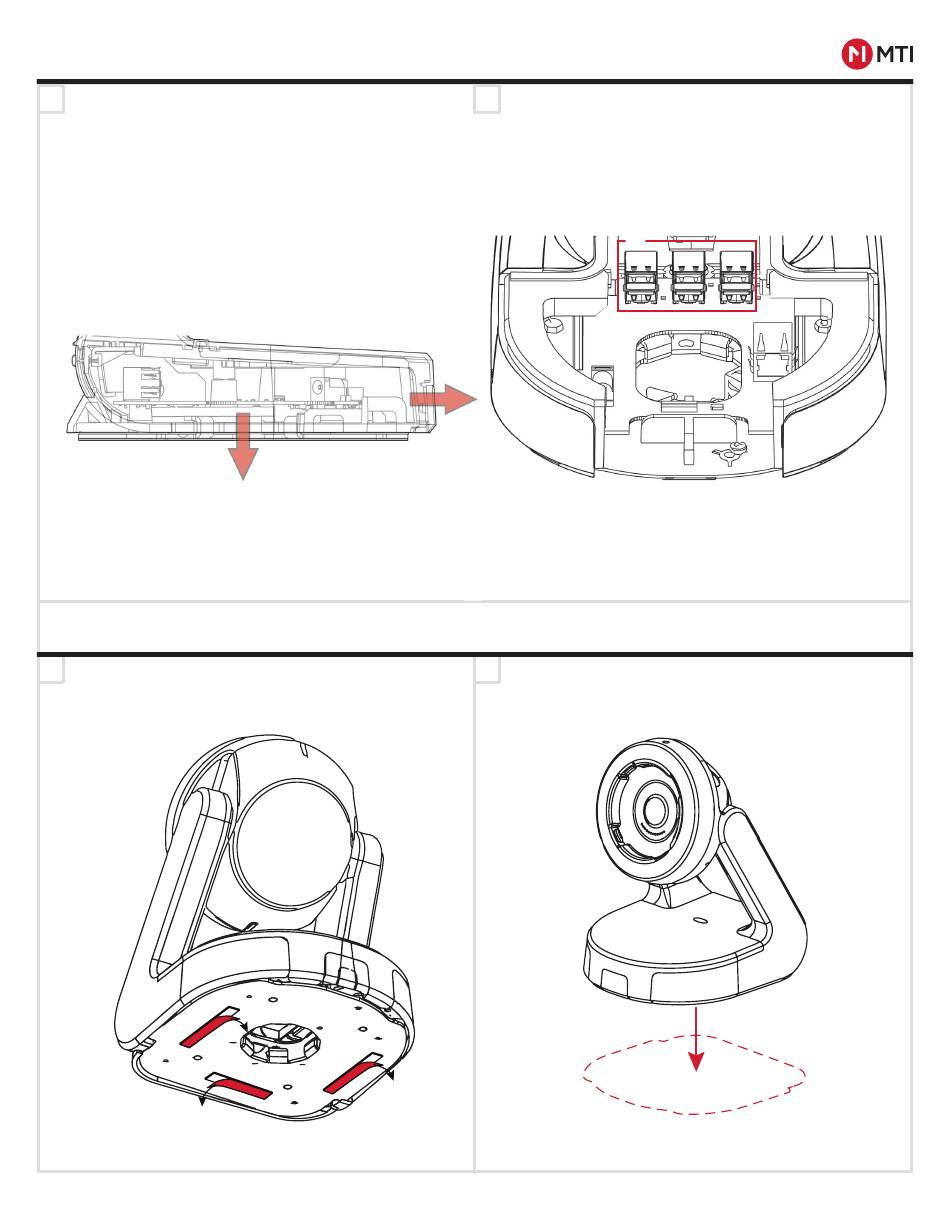

1. Through Hole Cable Routing
2. Table Top Cable Routing
3. Six USB Ports (Pro version only)
4. Ethernet (Pro version only)
5. Power
1.
VHB MOUNTING
1
Clean the surface you are mounting on with the Alcohol
wipes included in the box. Peel the film on the VHB on the
bottom of the kiosk.
www.MTIGS.com | T:801.653.3807
-CONTROLLED DOCUMENT-
2.
063-00180 E-0 Status: Approved
®
PRO KIOSK INSTALLATION GUIDE
RAPIDDOC
2
3.
5.
2
Place in desired location and firmly press down for full
adhesive contact. Allow 24 hours for full VHB adhesion.
MTI P/N 063-00180 rev E ©2021 MTI All Rights Reserved
4.
1.
2.
ECO-112676
