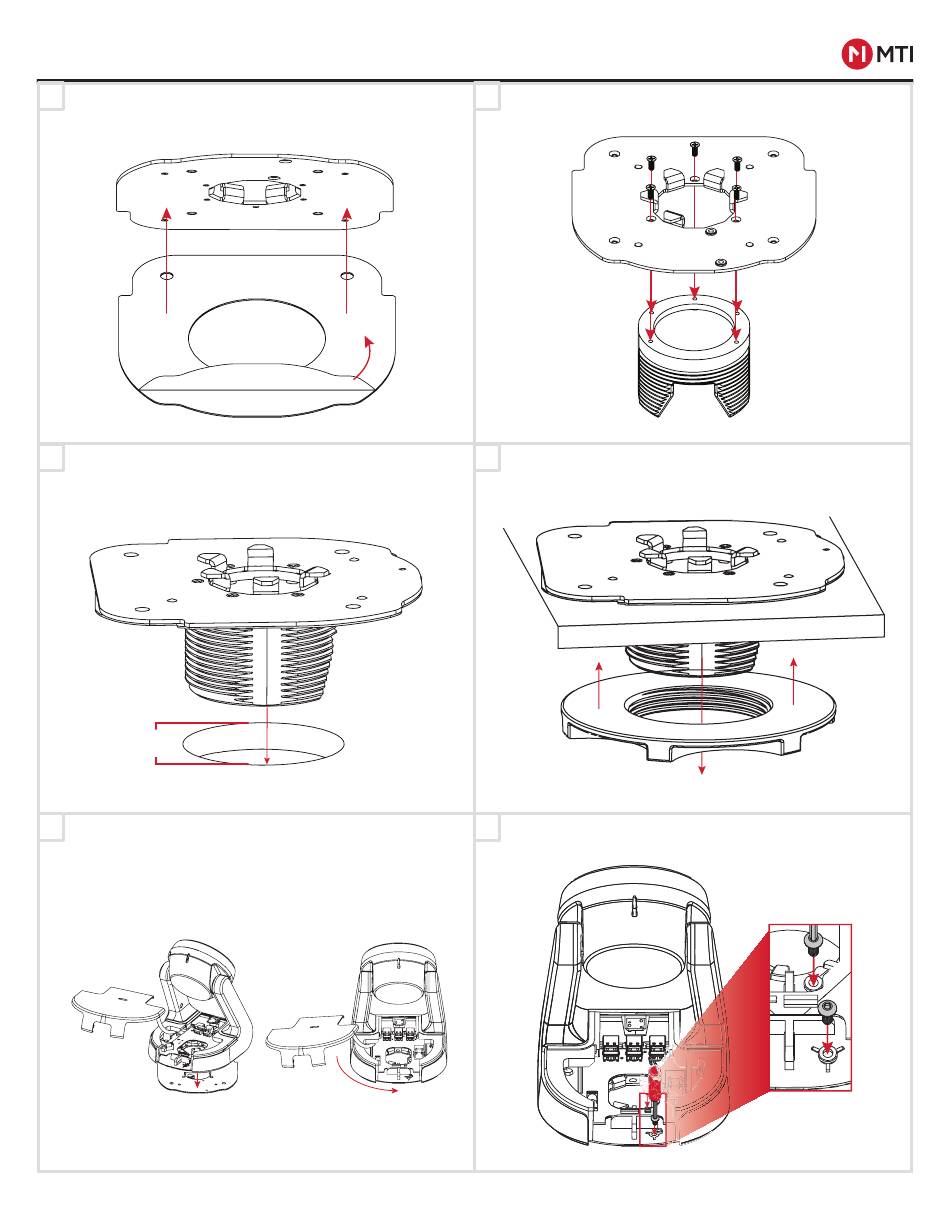

THROUGH-HOLE MOUNTING
1
NOTE: The Through-Hole Mounting Accessory is sold
separately. Peel the film on the included adhesive pad
and adhere it to the underside of the mounting plate.
3
Place the assembly into a pre-drilled hole 3" wide.
3"
5
Place the kiosk by lining up the opening on the bottom of
the kiosk with the teeth on the mounting plate. Lock the
kiosk into place by rotating it counter clockwise on the
plate.
www.MTIGS.com | T:801.653.3807
-CONTROLLED DOCUMENT- 063-00180 E-0 Status: Approved
®
PRO KIOSK INSTALLATION GUIDE
RAPIDDOC
2
Attach the threaded pipe to the mounting plate with the
5 included screws.
4
Secure into place by twisting the nut over the threaded
pipe.
6
Secure the kiosk to the mounting plate using the two
security screws and the Red Handle Tool.
