Two-Post Rack Installation

The Cisco ASR 1004 Router can be installed in a two-post rack, either 19 inch or 23 inch.
Note Inner clearance (the width between the inner sides of the two posts or rails) must be at least 19 inches (48.26 cm). The
height of the chassis is 1.73 inches (4.39 cm). Airflow through the chassis is from front to back.

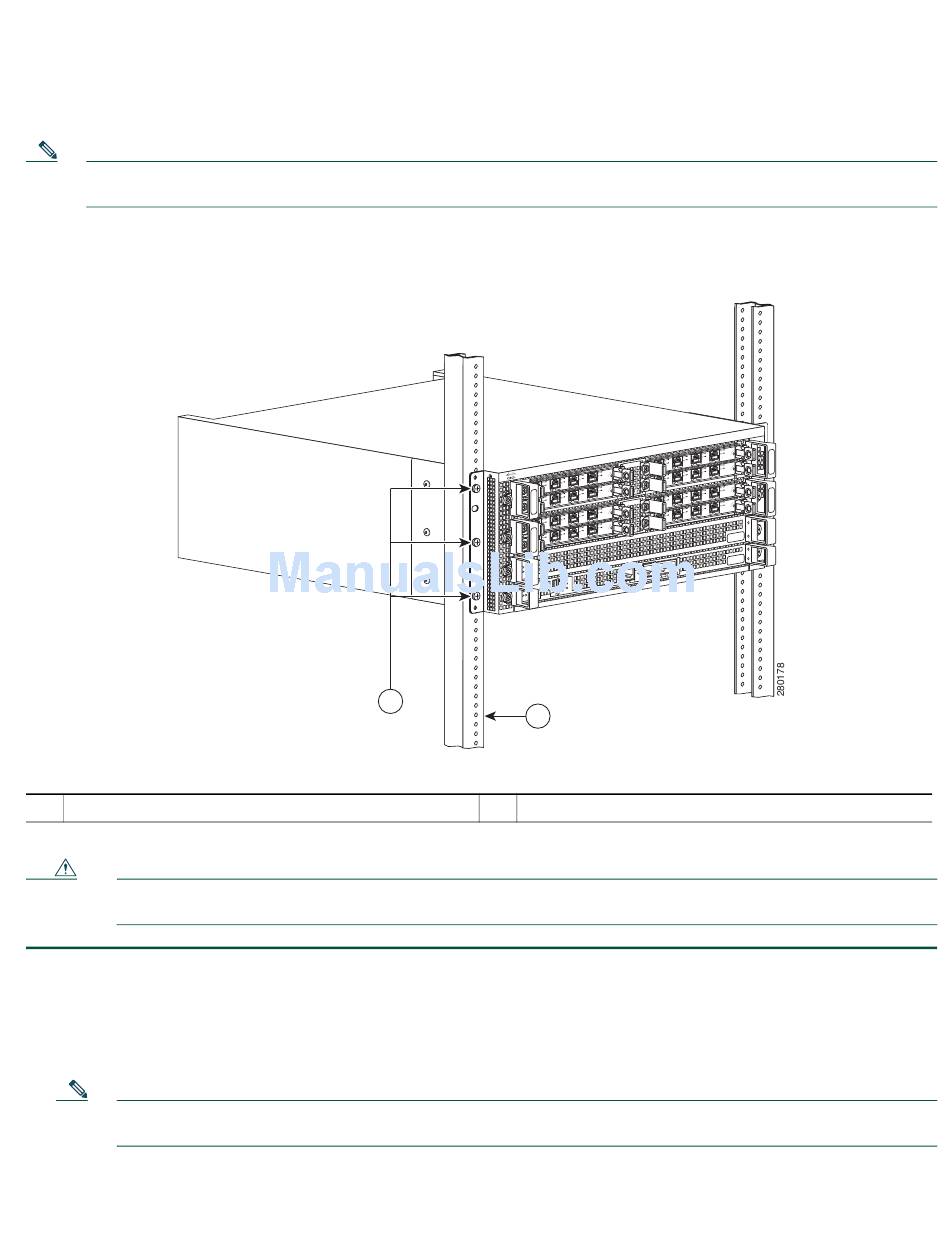

Figure 4 Installing a Cisco ASR 1004 Router in a Two-Post Rack
1 Rack-mount bracket ear and holes
If you are using a two-post rack secure the rack to the floor surface to prevent tipping and avoid bodily injury and
Caution
component damage.
Step 1 Position the chassis so the front is closest to you and lift it carefully into the rack. To prevent injury, avoid any sudden
twists or moves.
With at least two people, slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or
Step 2
posts on both sides of the rack.
Step 3 Position the chassis until the rack-mounting flanges are flush against the mounting rails on the rack.
Note To allow space to attach the cable management brackets to the chassis in the rack easily, make certain that you use
the rack-mount bracket ear holes specified in the next steps.
