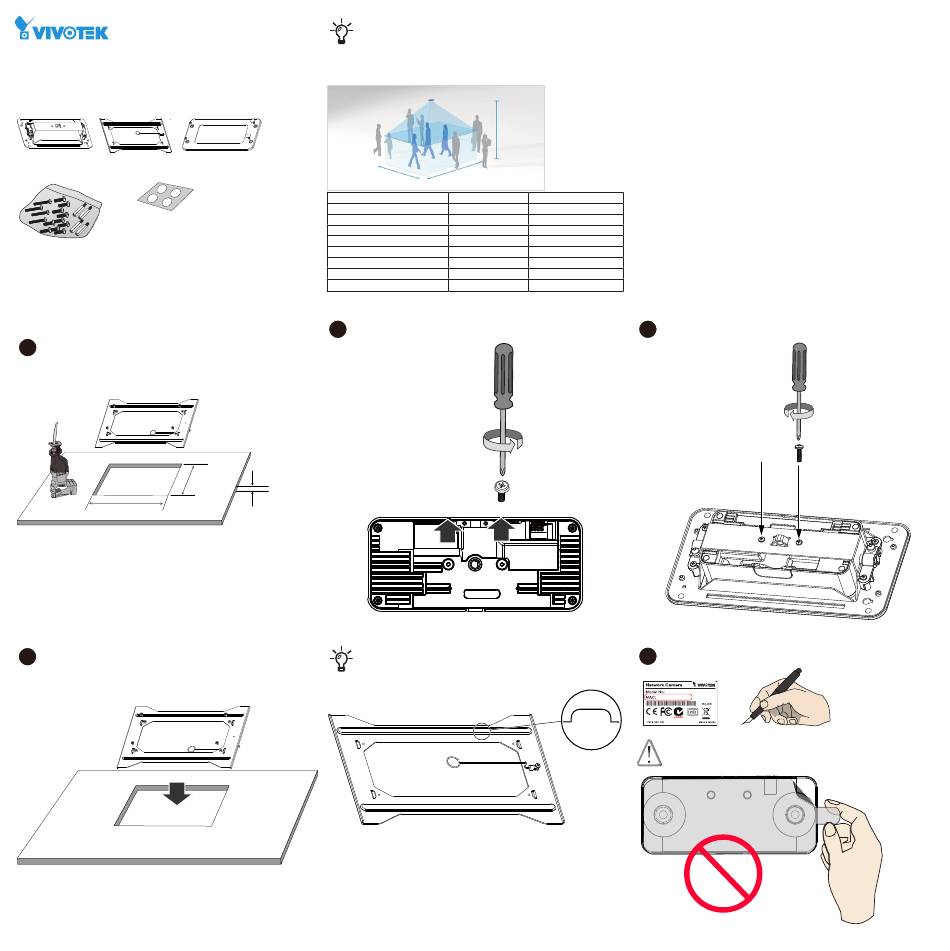

Vivotek AM-108 Installation Manual

AM-108
Installation Guide

Package Contents

Trim panel
Main bracket In-ceiling bracket
Screw pack: M3x8, M3x20,
Screw cap sticker
M3x15 hex standoff spacer

Installation

1 Drill or cut a square hole on the ceiling panel. The dimensions are shown below.
The thickness of ceiling panel can be between 5 to 25.4mm.
220mm
4
Put the in-ceiling bracket into the square hole.

Recommended Installation Height

Orderig P/N: 100187100G
•Installation Height: 2.4M ~ 3.6M
•Coverage area: 1.7M ~ 5.1M
VFOV
Camera Installation Height (cm)
2 Remove the original mount screws from the back of SC8131 camera.
5 ~ 25.4mm
90mm
The ribbed side is on top of ceiling panel.
2 2
Height
HFOV
HFOV (cm) VFOV (cm)
240 234
260 281
280 327
300 374
320 421
340 468
360 515
167
201
234
268
302
335
369
3 Secure the camera to the main bracket by driving 2 M3x8 screws.
5
Jot down the camera's MAC address before proceeding with the installation.
SC811
0002D10766AD
Do not remove the protective sheet on the camera lenses until the installation is
done.
•
