Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
SPECIFICATIONS
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 RPM
Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 ft.-lbs.
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" - 18 NPT
Maximum Air Pressure . . . . . . . . . . . . . . . . . . . 90 psig, 6.2 bar
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . 3.22 CFM
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.36"
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.61 m/sec²
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 dBA
Sound Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 dBA
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26 Lbs.
CAT250ARR
• Parts Breakdown
WARNING
WARNING
• MAXIMUM RPM OF 270
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
• USE ONLY IMPACT SOCKETS
AND ACCESSORIES ON THIS
TOOL. DO NOT USE HAND
SOCKETS AND ACCESSORIES.
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
CAT250ARR

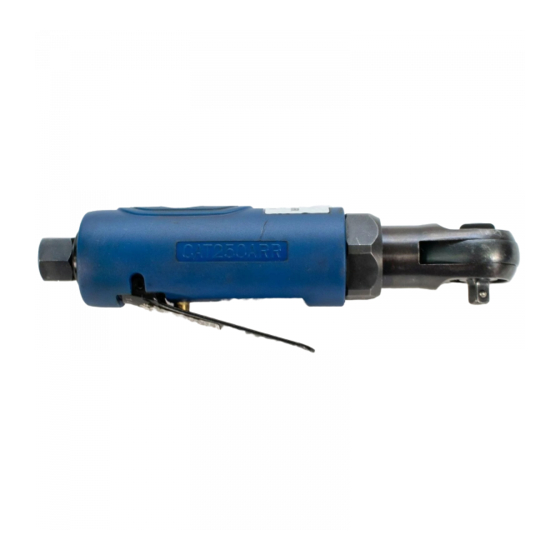

1/4" Mini
Air Ratchet
Copyright © Professional Tool Products, 2016
All rights reserved
Rev. 2/9/16
Advertisement
Related Manuals for Cornwell Tools CAT250ARR
Summary of Contents for Cornwell Tools CAT250ARR
- Page 1 Torque ........30 ft.-lbs. CAT250ARR Air Inlet Size .
- Page 2 • Do not force tool be yond its rat ed capacity. • Operators and main te nance per son nel must be • Use accessories recommended by Cornwell Tools. phys i cal ly able to han dle the bulk, weight and pow er of this tool.
- Page 3 PARTS BREAKDOWN - CAT250ARR Ref. # Item # DESCRIPTION Ref. # Item # DESCRIPTION RS250ARR01 Housing with Bushing RS250ARR25 Lock Ring RS250ARR02 Throttle Lever RS250ARR26 Retainer Ring RS848002 Pin (3x22mm) RS250ARR27 Ratchet Housing RS305A04 O-Ring (3.5 x 1.5mm) RS250ARR28 Needle Bearing RS305A05 O-Ring (4.5 x 1.7mm)
- Page 4 This warranty gives you specific legal rights, and you may also have other rights that vary by state. Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. CAT250ARR Rev. 2/9/16...
