PARTS AND MATERIALS

TOOLS THAT MAY BE NEEDED
•
Pipe Wrench
•
Hole Saw
•
Tape Measure
•
Adjustable Wrench
MATERIALS THAT MAY BE NEEDED
•
Hot Water Supply Line – Min . 3/4" O.D. copper
tubing or metal braided dishwasher supply line
•
UL listed conduit connector or strain relief.
•
Teflon tape or pip thread compound to seal
plumbing connections.

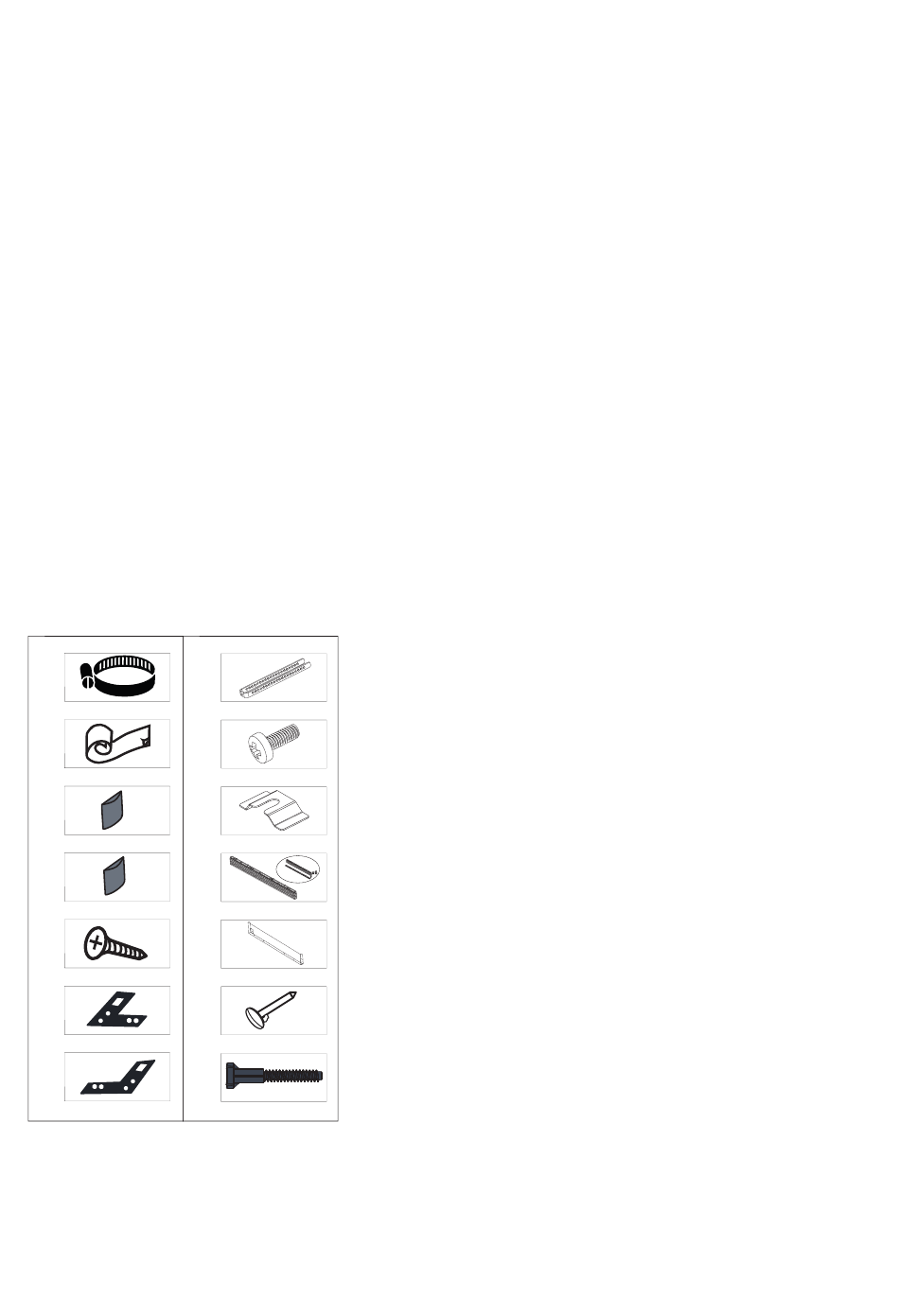

INCLUDED PARTS AND MATERIALS
The parts required for installing the dishwasher are in plastic bags. Check that all of the following parts are
contained in plastic bags.
h.
a.
b.
i.
j.
c.
d.
k.
l.
e.
f. m.
g.
n.
•
Level
•
Wire Cutter
•
Hammer
•
Torx Screwdriver
DISHWASHER PARTS BAG 1
a. Hose Clamp x 1
DISHWASHER PARTS BAG 2
b.
c.
d.
DISHWASHER PARTS BAG 3
e.
f.
g.
DISHWASHER PARTS BAG 4 (MODEL DEPENDING)
h.
i.
j.
k.
l.
m.
DISHWASHER PARTS BAG 5 (MODEL DEPENDING)
n.
•
Slot Screwdriver
•
Phillips Screwdriver
•
Drill
•
Wire Stripper
•
Shut-off valve and fittings appropriate for hot
water supply line (copper tubing/compression
fitting, or braided hose)
•
Silicone
•
Glue
Steam Protection Foil x 1
Side Trim Strips (Left) x 1
Side Trim Strips (Right) x 1
Screws 0 5/32" x 19/32" (0 4mm x 5mm) x 2
Mounting Bracket Left x 1
Mounting Bracket Right x 1
Toe Kick Bracket x 2
Screws 5/32" x 7/32" (4mm x 6mm) x 1
Plinth Fixing Bracket x 4
Adjustable Plinth x 6
Metal Toe Kick (80mm) x 1
Plinth Locking Pin x 2
Long Legs x3
6
•
Brush
•
Scissors
•
Pencil
